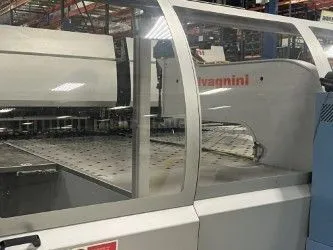

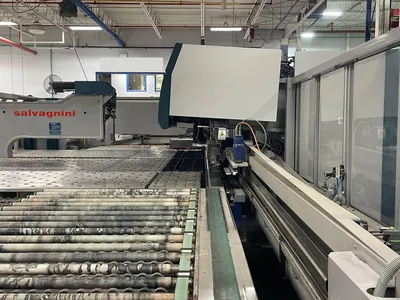

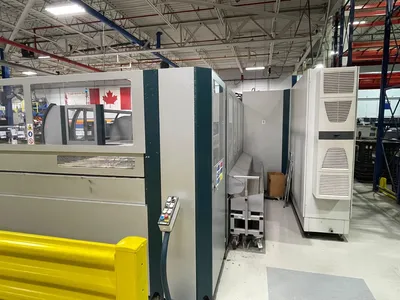

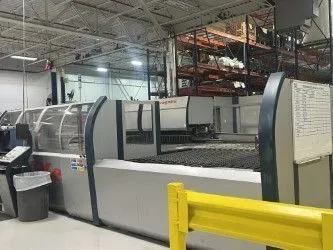

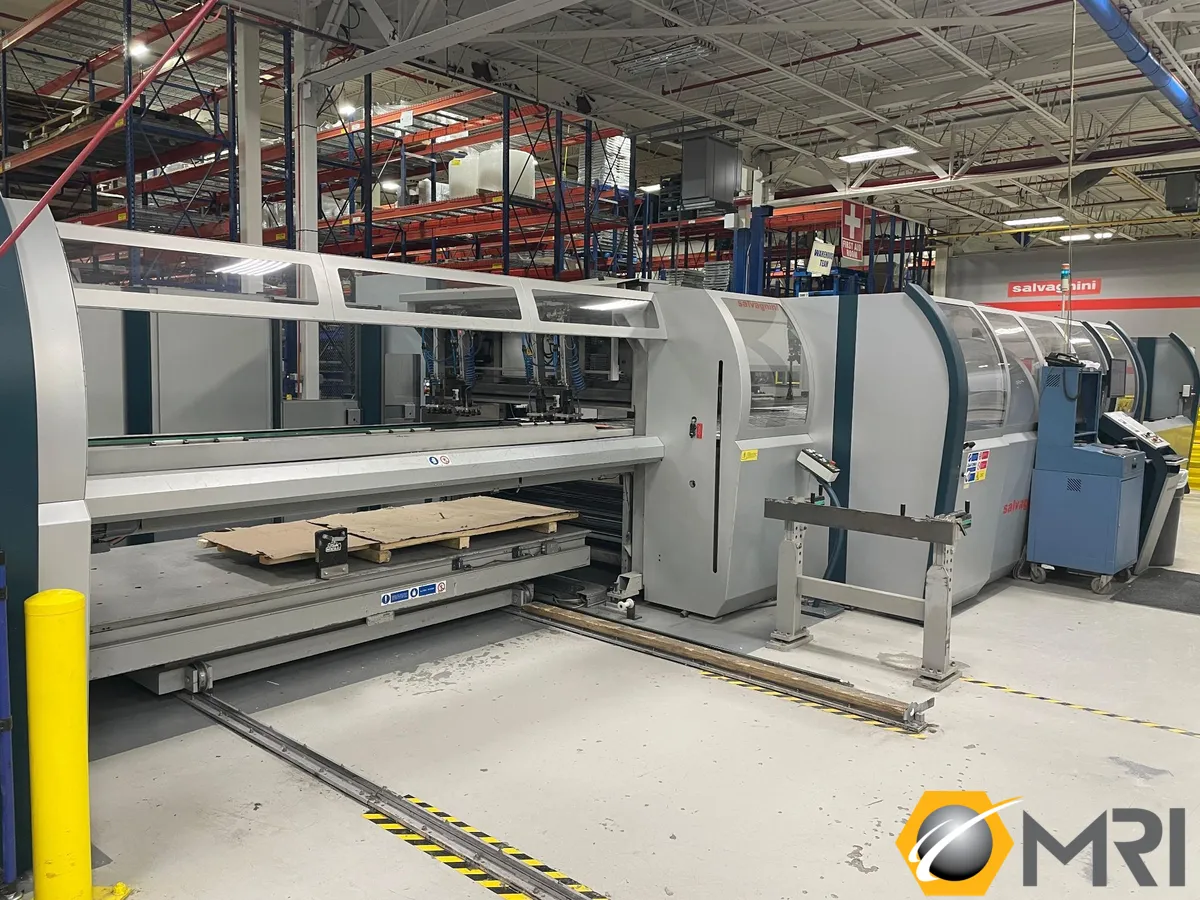

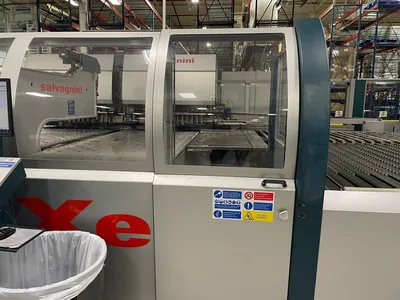

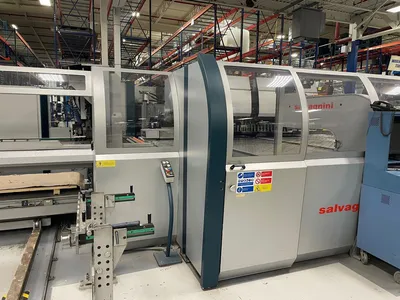

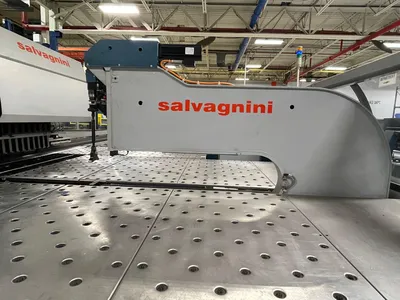

SALVAGNINI P4Xe-2516 CNC PANEL BENDER, NEW: 2011
ConditionUsed
1 available
SALVAGNINI P4Xe-2516 CNC PANEL BENDER, NEW: 2011
CONFIGURATION:
TC30155F.CT.RPC + PCD3015.RVA.VEI.MOTAX + P4XE-2416.LS1.ABA.MBC.ZL.ZTL.SPA.NS.UL1.
CIA/A1500.CLA.N/A.CUT.P.ULCOO1.8CS.UC1500.UC1000/NUPCUT01 + SAP27.POS

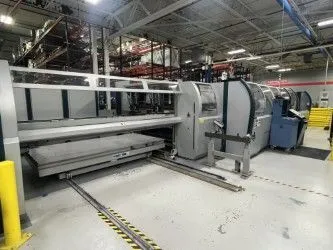

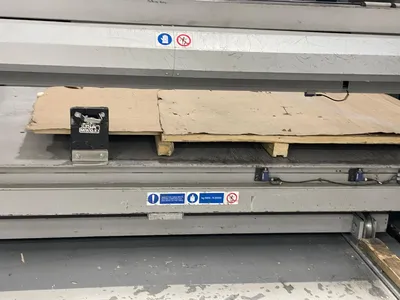

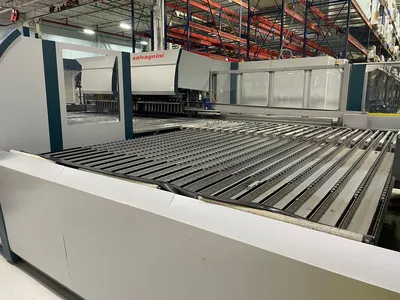

- TC30155F: MOTORIZED SCISSOR TABLE
- CT: MOBILE TABLE COVER
- RPC: PACK REFERENCE SYSTEM

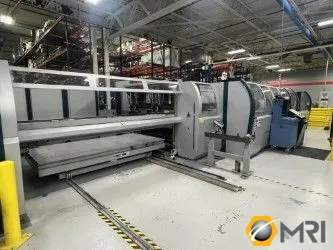

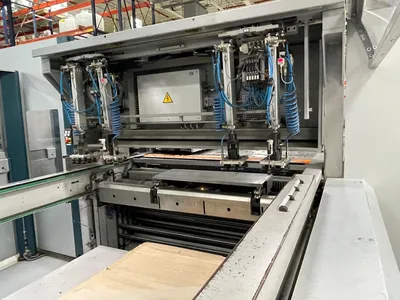

- PCD3015: CONVEYOR-DESTACKER
- BCS: BARCODE SCANNER
- RVA:
- VEI:
- MOTAX:

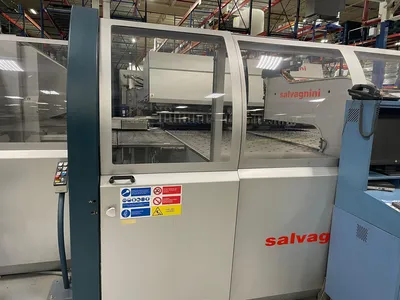

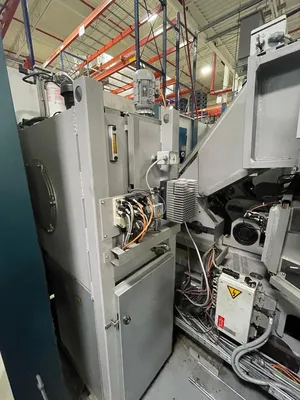

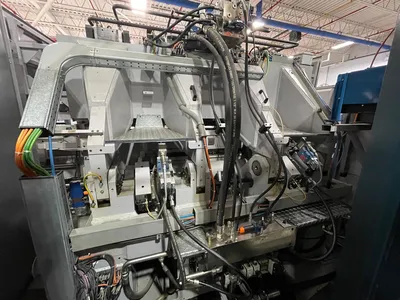

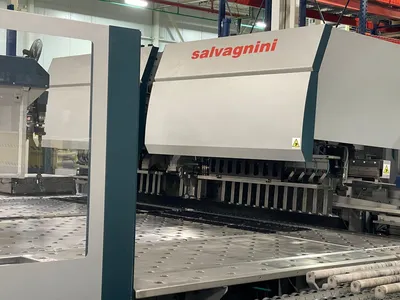

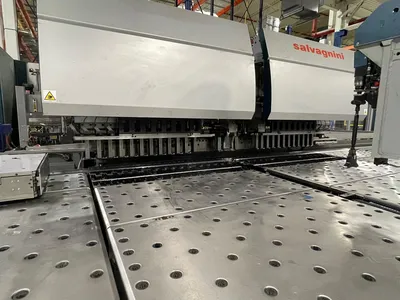

- P4XE-2416: PANEL BENDER

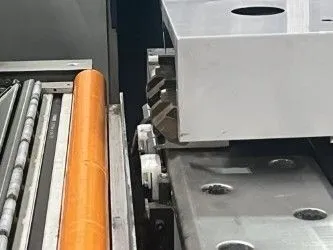

- LS1: UPPER BENDING BLADE
- LI: LOWER BENDING BLADE

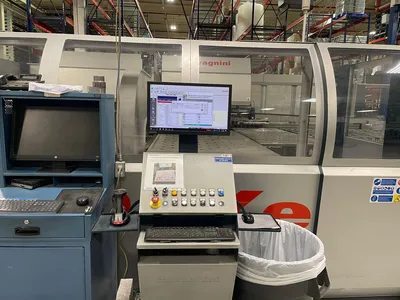

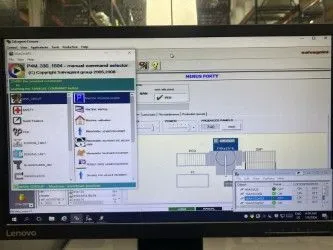

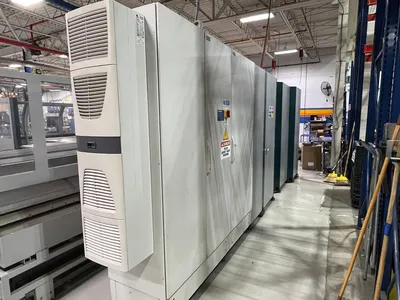

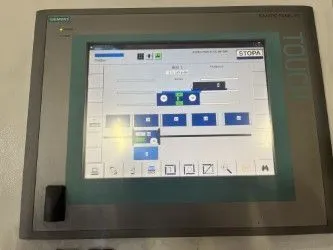

- SiX: SYSTEM CONTROL AND MANAGMENT

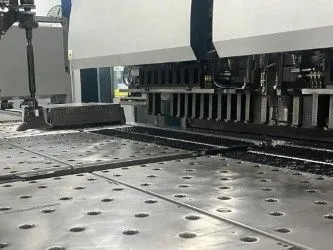

- ABA30/400/130: BLANKHOLDER WITH AUTOMATIC LENGTH ADJUST
- MBC:
- ZL: STANDARD TOOL
- ZTL:
- SPA:
- NS:
- UL1:
- CLA-A-1500: AUXILIARY BENDING TOOL ASYMMETRIC COMMAND FOR POSITIVE BENDS
- CLA- N-A: AUXILIARY BENDING TOOLL ASYMMETRIC COMMAND FOR NEGATIVE BENDS
- CUT.P.ULC001: P TOOL WITH SHEAR BLADE FOR CUTTING AND REMOVING NARROW PROFILES
- BCS:
- UC1500: SET OF CLA TOOLS
- UC1000-N: SET OF CLA TOOLS FOR NEGATIVE BENDS

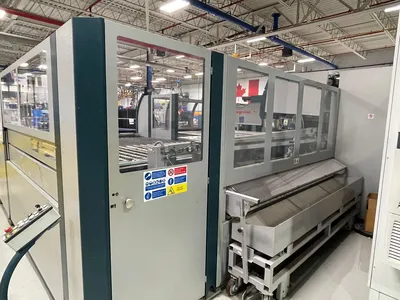

- SAP271618.POS: PANEL UNLOADER/ACCUMULATOR
+ PCD3015 + SAP271618.POS: PACKING AND LOADING COMPONENTS (IN LIEU
OF MANUAL FEEDING)
-
MAX. BENDING LENGTH: 98.43"
MAX. WIDTH OF FINISHED PANEL: 59"
MAX. DIAGONAL OF INCOMING SHEET: 108.27"
MAX. LENGTH OF INCOMING BLANK: 59.49"
MAX. BEND HEIGHT: 6.5"
MAX. THICKNESS MILD STEEL: 0.0984"
MAX. THICKNESS STAINLESS STEEL: 0.0591"
BENDING ANGLES OBTAINABLE: -135 DEG. TO +135 DEG.
TOTAL SYSTEM WEIGHT: 50,706 LBS.
