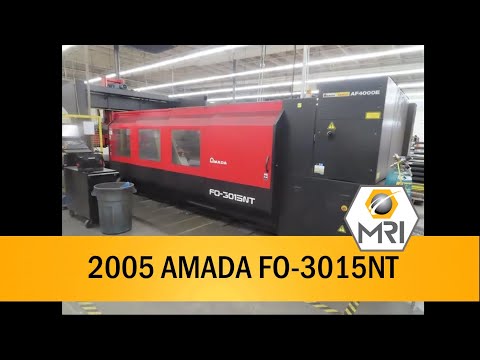

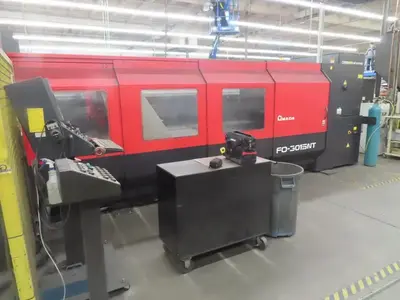

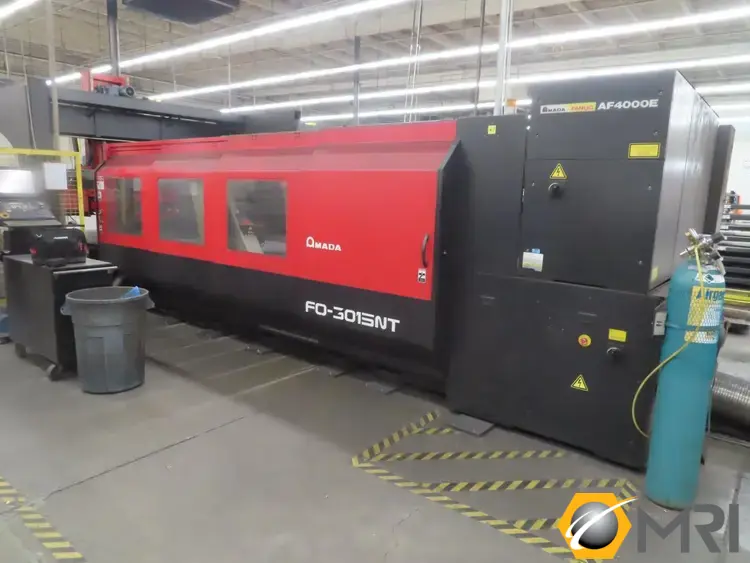

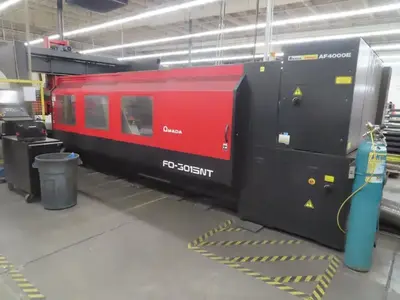

2005 AMADA FO-3015NT LASER | 7612263 AB

Table Size: 5' x 10'
Dual Shuttle Table
Travels:
X-Axis Travel: 122.2″
Y-Axis Travel: 61″
Z-Axis Travel: 7.87″
Resonator Wattage: 4,000 Watts
Maximum Sheet Size: 61" x 122.8"
Rapid Traverse Rate: 3,150 IPM
Maximum Workpiece Weight: 1,875 lbs.
Chiller

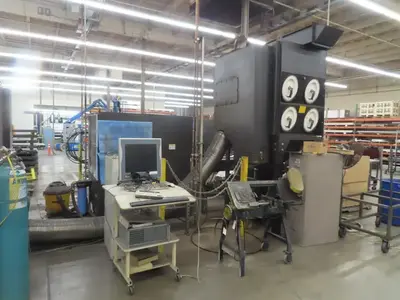

Dust Collector

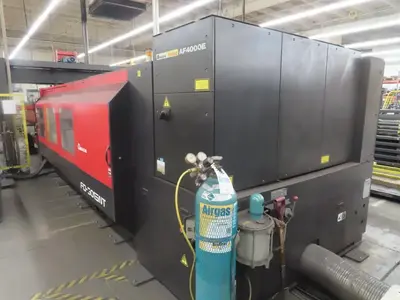

Laser Specifications: AF4000E Oscillator
CW Power: 4,000 Watts
Peak Pulse Power: 5,000 Watts
Material Thickness Capacities:
Mild Steel: 3/4"
Stainless Steel: 1/2"
Aluminum: 3/8"
System Includes:
EZ Cutter Nitrogen Gas Generator (Amada)
Kaeser Air Compressor

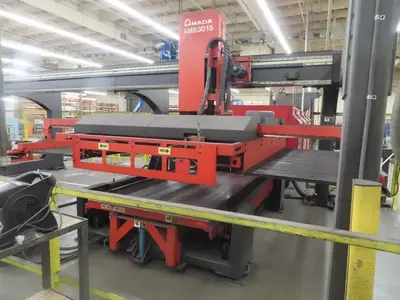

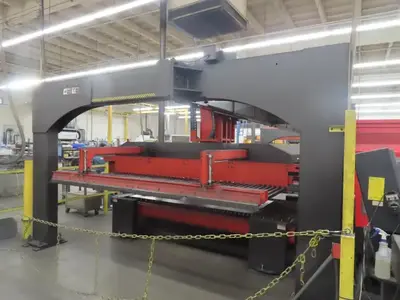

…Amada AMS3015

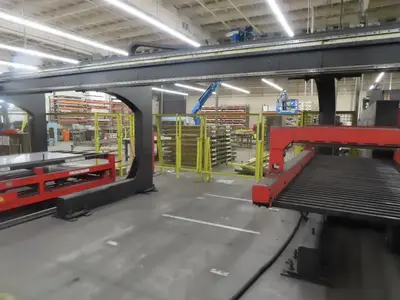

Modular Automation System

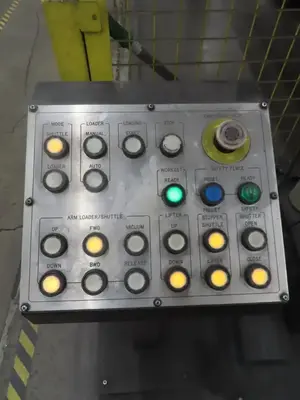

Automated Loading/Unloading
Dimensions (approx.): 43' x 15' x 9.5'
Main Laser Machine Dimensions (approx.): 234" x 108" x 90"
Main Laser Machine Weight (approx.): 26,400 lbs.
Component Dimensions (approx.):
Dust Collector: 48" x 60" x 96"
Chiller: 72" x 48" x 72"

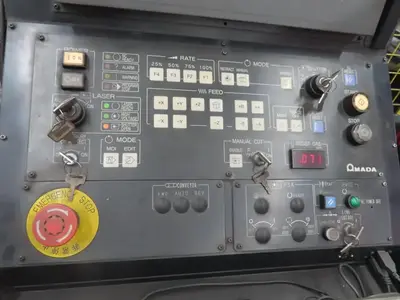

Control Unit: 36" x 32" x 67"

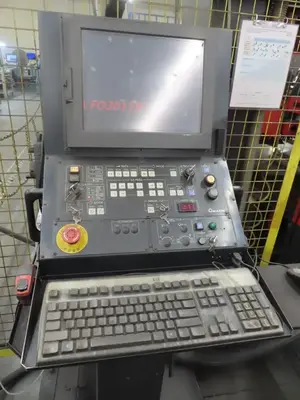

Control Pedestal: 16" x 16" x 47"
EZ Cutter: 60" x 36" x 84"
Kaeser Air Compressor: 60" x 32" x 61"
