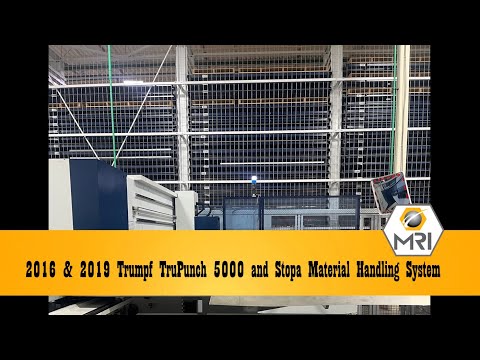

TRUMPF TRUPUNCH 5000 LARGE FORMAT (1600mm) PUNCHES AND STOPA MATERIAL HANDLING SYSTEM
ConditionUsed
1 available

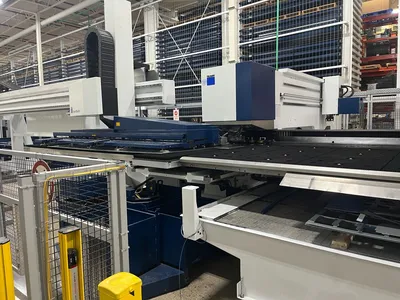

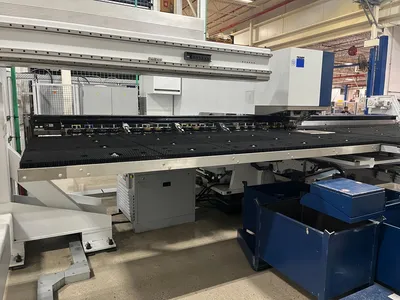

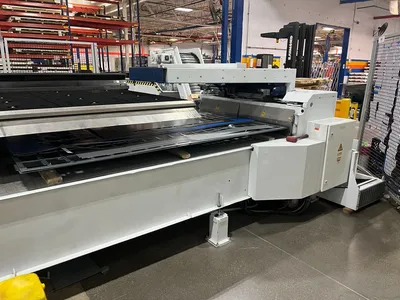

TRUMPF TRUPUNCH 5000 LARGE FORMAT (1600mm) PUNCHES AND STOPA MATERIAL HANDLING SYSTEM
TRUPUNCH 5000 LARGE FORMAT PUNCH, NEW: 2016
TRUPUNCH 5000 LARGE FORMAT PUNCH, NEW: 2019

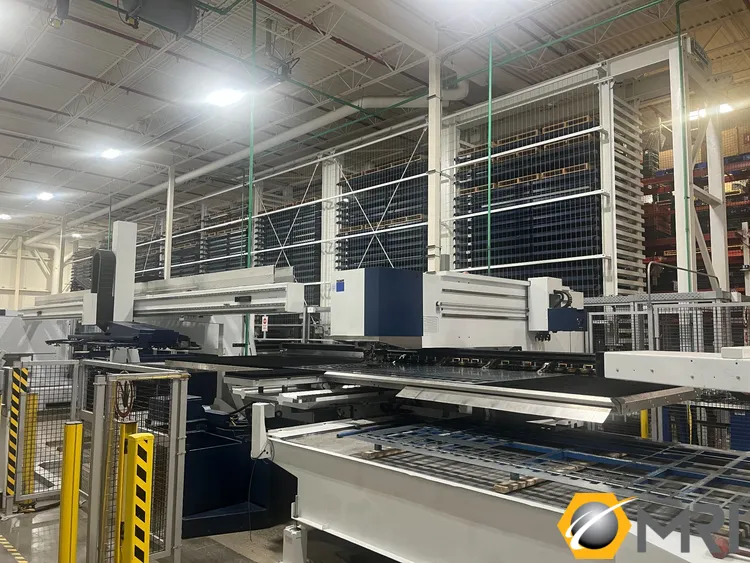

8 TOWER STOPA MATERIAL LOAD/UNLOAD AND STORAGE SYSTEM
BOTH THE 2016 AND 2019 ARE EQUIPPED THE SAME ASIDE FROM THE FOLLOWING ACCEPTIONS

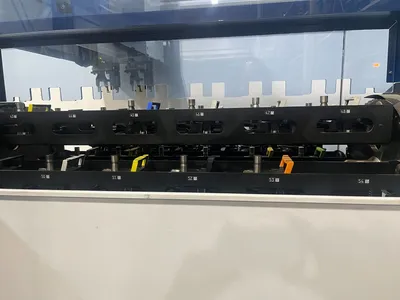

- 2016 MACHINE ONLY: 18 STATION TOOL CHANGER
- 2019 MACHINE ONLY: 54 STATION TOOL CHANGER
- 2019 MACHINE ONLY: PARALLEL PRODUCTION
OPTIONS ON BOTH MACHINES:

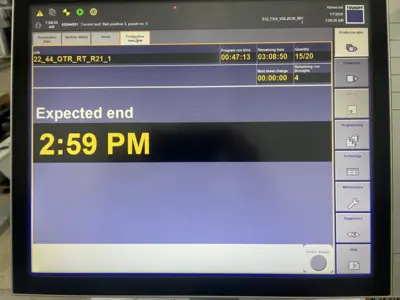

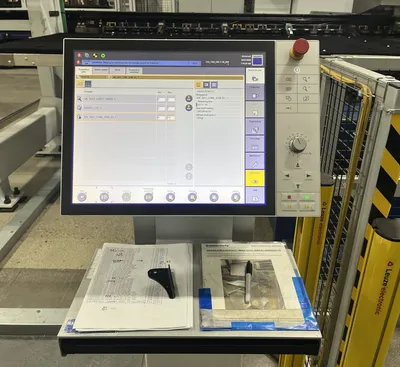

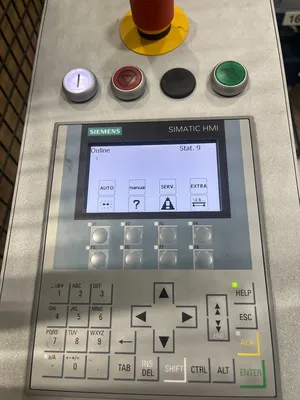

- SIEMENS SINUMERIK 840D SL CNC CONTROL
- SHEARMASTER

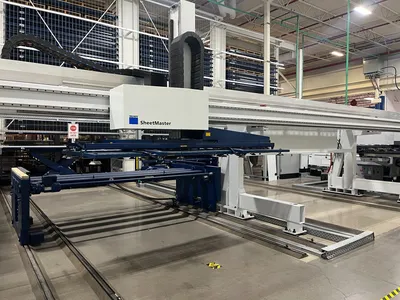

- SHEETMASTER
- 18 POSTION TOOLING CARRIER
- BRUSH TABLES
- ACTIVE DIE
- INTERGRATED FLATTENING
- MULTI SHEAR
- MULTI BEND
- TAPPING DRIVE
- HIGH SPEED MARKING
- ENGRAVING
- WHEEL TECHNOLOGY FUNCTION - FORMING & CUTTING
- ADAPTIVE STROKE CALIBRATION
- DIE SPRAY LUBRICATION
- SMART PUNCH MONITORING (BREAKAGE CONTROL FOR PUNCH)
- SOFTPUNCH
- STRIPLINE
- CLAMP OPEING IDIVIDUALLY
- CLAMPS CLOSING AUTOMATICALLY
- ANTI-VIBRATION ISLOLATION PADS
- PNEUMATIC REPOSITION CYLINDERS

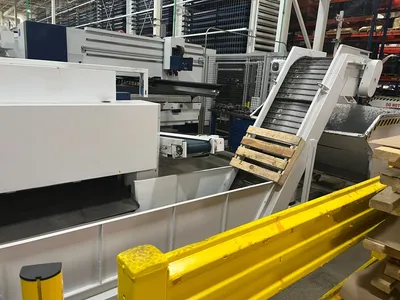

- CHIP/SLUG CONVEYOR WITH BOX
- VARIABLE VACUUM SLUG REMOVAL
- LOADING/UNLOADING AIDS
- SMALL PARTS BLOW-OUT DEVICE
- WIRELESS OPERATION POINT AND MOBILE-CONTORL APP
- RCI REMOTE CONTORL INTERFACE
- SHEET COLLISION DETECTION
SPECIFICATIONS FOR BOTH THE 2016 AND 2019 MACHINE
MAX. STROKE RATE:
- PUNCHING: 53.1496” PER MIN.
- MARKING: 118” PER MIN.
WORKING RANGE:
- X-AXIS: 120”
- Y-AXIS: 61”
MAX. MATERIAL THICKNESS: 0.315”
MAX. WORKPIECE WEIGHT: 617 LBS
MAX. PUNCHING FORCE: 22 TONS
MULTITOOL TOOL CHANGING TIME: 0.3 SEC
NUMBER OF TOOLS: 21
NUMBER OF MATERIAL CLAMPS: 4
PART REMOVAL:
- MAX. PART SIZE - PART REMOVAL FLAP PUNCHING: 19.685” X 19.685”
- MAX. PART SIZE, FIXED CHUTE, PUNCHING (WITH MOVING TABLE): 3.1496” X 1.9685”
CONSUMPTION VALUES:
- AVERAGE POWER INPUT OF ACTIVE AUTO-SHUTDOWN: 0.5 KW
- AVERAGE POWER INPUT IN PRODUCTION: 9.5 KW
TRUPUNCH 5000 DIMENSIONS: 300”(L) x 322"(W) x 82"(H)

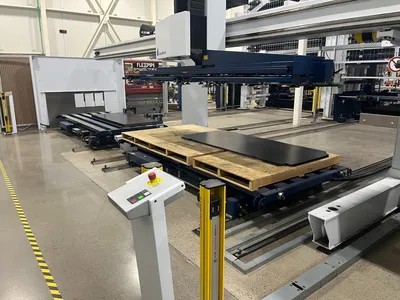

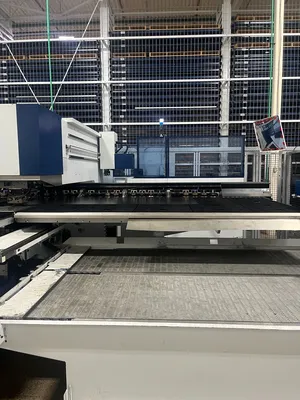

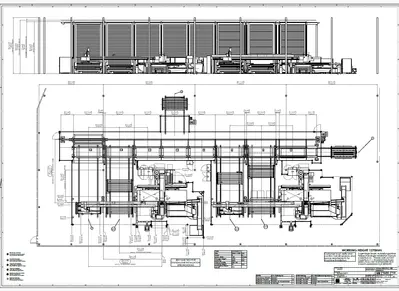

STOPA INFO:
- NO. OF TOWERS: 8
- NO. OF PALLET LOCATIONS: 229
- NO. OF LOAD/UNLOAD STATIONS: 2
