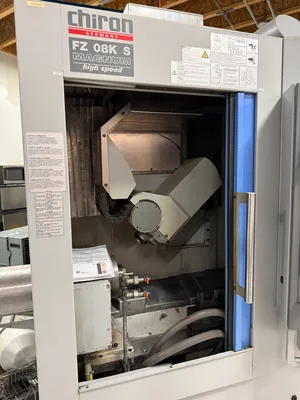

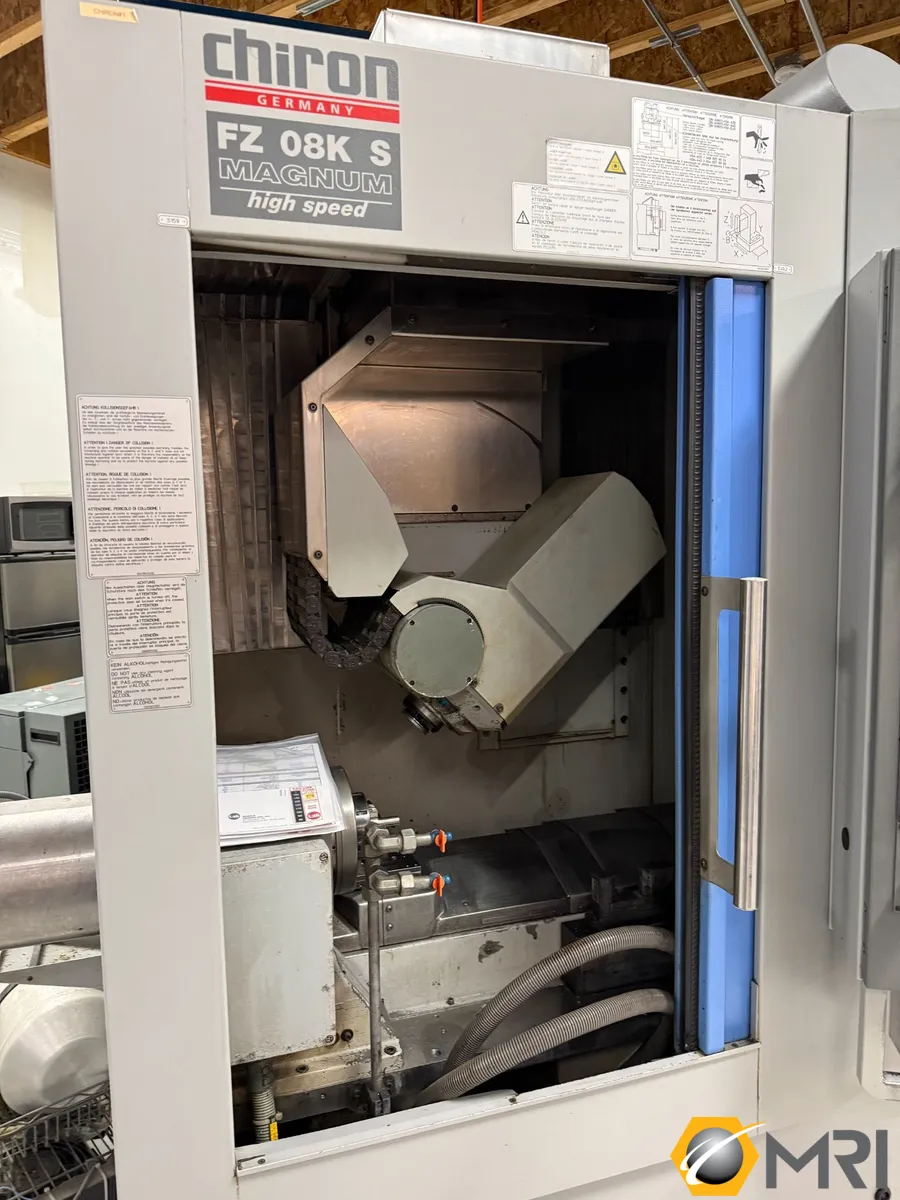

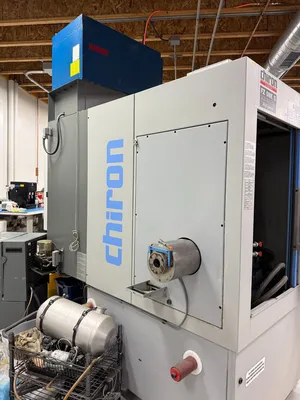

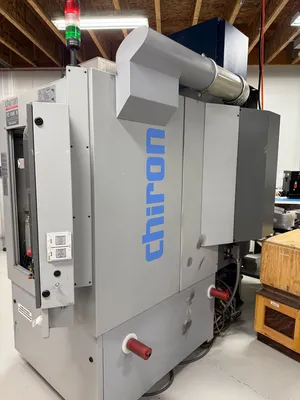

2008 Chiron FZ08K S Magnum 5-Axis Bar-fed Vertical Machining Center

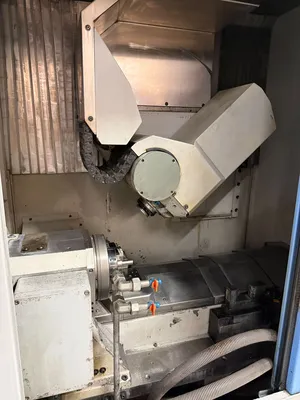

Chiron Magnum Vertical CNC Machining Center with NC Swivel Head
**See Attached PDF for Full as-shipped specifications**

Machine is Comparable to Willemin (Mill/Turn)
Column Moving machining center with Fixed Table

CAN BE SET UP FOR BAR FEEDING

CNC Control:

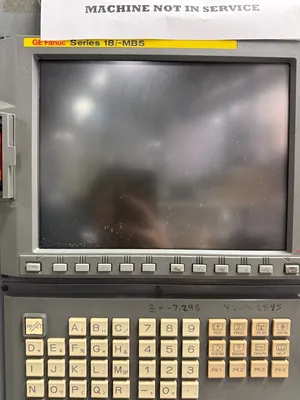

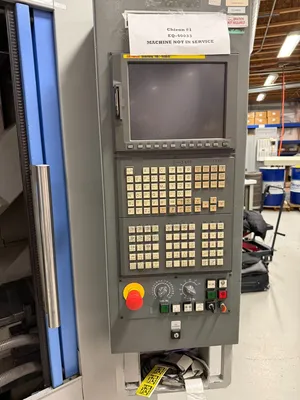

Fanuc 18iMB5 5-axis CNC Control simultaneous machining (details below)

Motor at 100%: 9.4 HP (7kW)
Motor at 25%: 18.8HP (14kW)
Main Spindle Speeds: 0-15,000 RPM
Turning Spindle speeds: 15 - 8,000 RPM *
*Barfeed Interface included (originally interfaced for an LNS bar feed)

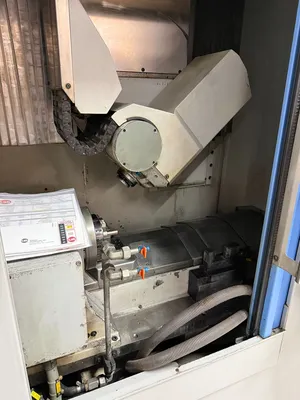

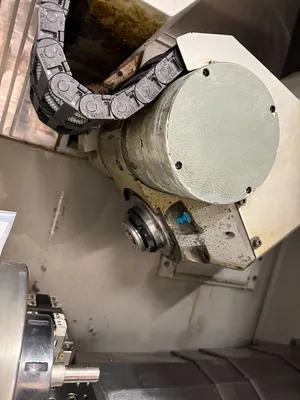

NC Swivel Head: -20 / +115 deg
Rapid traverse: 60 RPM
Increments: 0.0001 deg
with direct measuring system: +/- 5"
Swivel Head Speed: 0.5 seconds to swivel from 0-90deg

Travels:
X-axis: 450mm (17.7")
Y-axis: 270mm (10.6")
Z-AXIS: 310MM (12.2")

Drilling capacity in steel 60: 8mm
Tapping capacity: 0.31" (M8)
Milling capacity in steel 60: 1.893 ci/min (30 cm3/min)

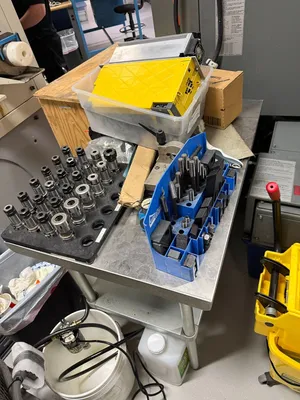

Automatic Tool Changer: 24 tools
Tool Shank: HSK-A 40 DIN 69893
Max tool Dia: 1.97"(adj. magazine pos are full)
Max tool Dia: 3.94"(adj. magazine position open)
Tool length: 6.3" (160mm)
Max tool weight: 2.6 lbs
Tool Change time: 0.8 sec
Chip-to-chip time: 1.9 sec

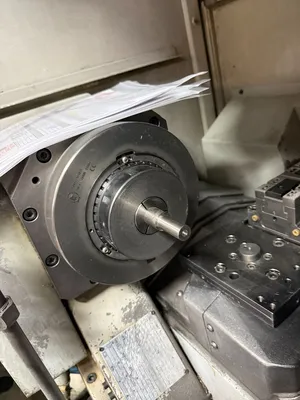

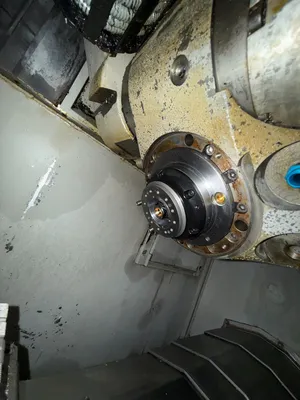

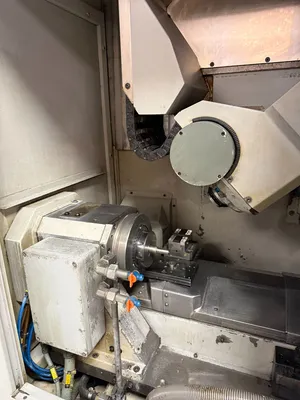

Lathe spindle capacity (water cooled): 32mm (1.25")
Motor: 4kW @ 100% / 8.5kW @ 15%
Spindle speeds: 15-8,000 rpm
with direct measuring system and pneumatic clamping
Collet Chuck 12kN with integrated pneumatic actuation

NC-feeding unit as bar feeder
rapid traver: 60m/min
stroke: 460mm, depending on fixture

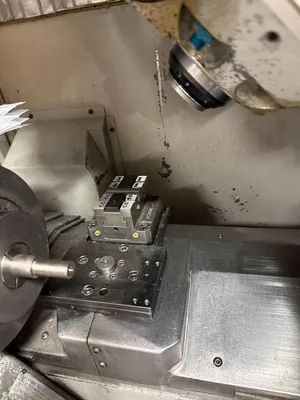

Fixed Table with chip pan
clamping sur: 30.3" x 11.4" (770 x 290 MM)
with thread and locating hole grids: M16 x diameter 15 H7 x 50mm
Table Load Cap: 1100 lbs (500kg)

Machine: 90" x 55" x 96"
