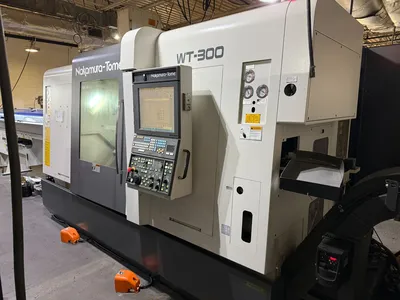

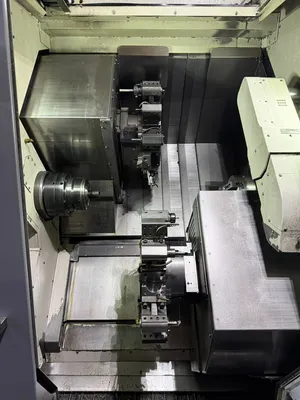

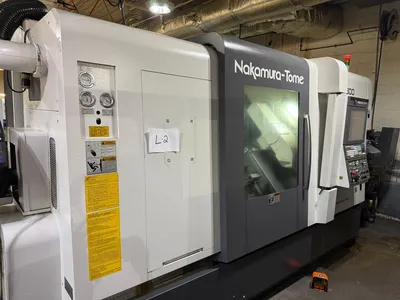

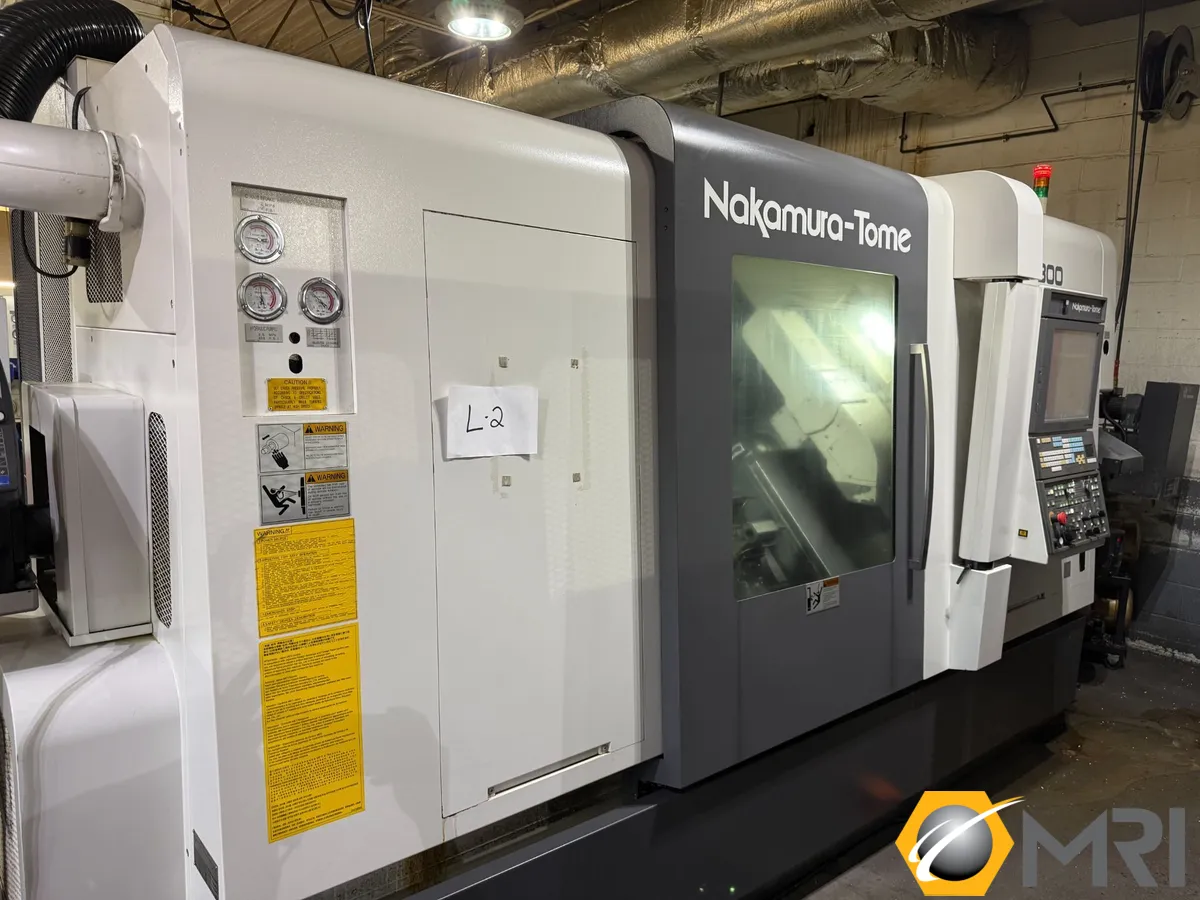

Nakamura Tome WT-300, New in 2014
With Iemca Barfeed, Full 12' Magazine

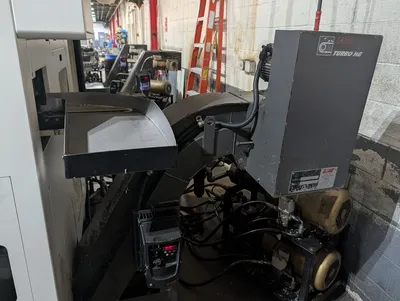

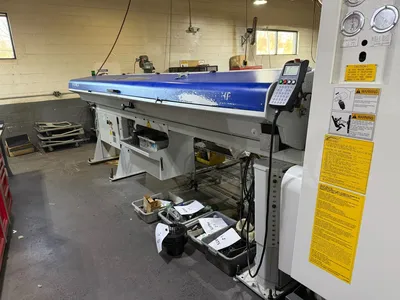

Iemca Master 80-HF Barfeed

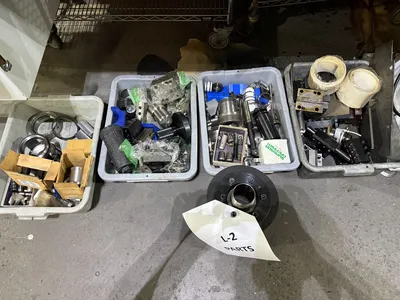

Misc Live tools and tool holders (to be verified by buyer)
Y Axis on upper Turret

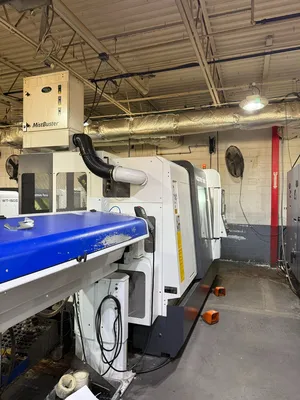

Mist Buster mist collector
General Specifications to be verified by buyer.
From the OEM Brochure
Capacity: ø3.2 in ( 80) / ø4 (102) (op.) in (mm)
Max Turning Diameter: 10.6 (270) in (mm)
Distance Between Spindles: max 43.3 (1100) / min 9.8 (250) in (mm)
Max Turning Length: 30.7 (780) in (mm)
Bar Capacity: 4 (102) (op.) in (mm)
Bar Capacity L-Spindle: 3.2 in (80 ) in (mm)
Bar Capacity R-Spindle: 2.6 (65) in (mm)
Chuck size : 10 in in (mm)
Axis Travel
Slide travel (Y): ±2.4 (60) in (mm)
Slide Travel (B): 33.5 (850) in (mm)
Slide Travel (X1/X2): 7.4 (188) / 7.7 (195) in (mm)
Slide Travel (Z1/Z2): 30.7 (780) / 30.7 (780) in (mm)
Rapid Feed (X1/X2): 630 (16) / 630 (16) in/min (m/min)
Rapid Feed (Z1/Z2): 1063 (27) / 1063 (27) in/min (m/min)

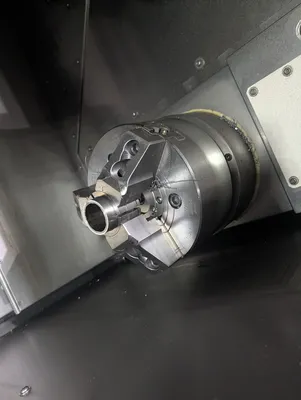

Left Spindle
Spindle Speed: 3500 / 2500 rpm
Spindle Nose: A2-8
Hole Through Draw Tube: 3.2 (81) / 4 (103) in (mm)

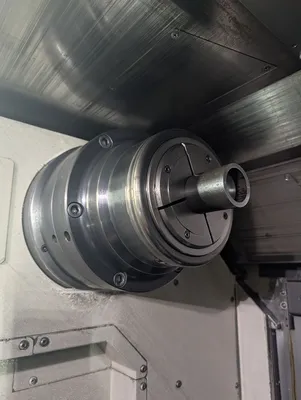

Right Spindle: 2.5 in (80 )
Spindle Speed: 4500 rpm
Spindle Speed Range: 50-4500 RPM Stepless (different materials)
Spindle Nose: A2-6
Hole Through Draw Tube: 2.5 (66) in (mm)
C-Axis
Least Input Increment: 1E-3 degree

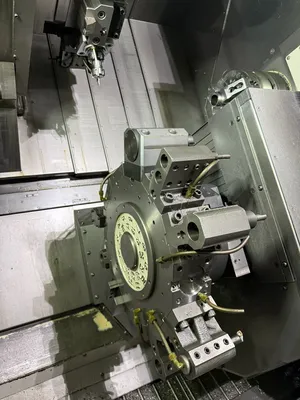

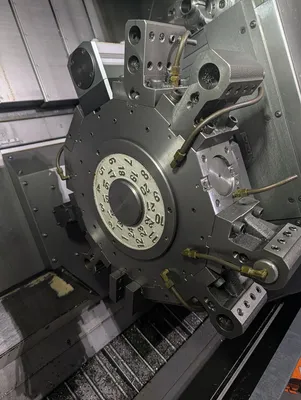

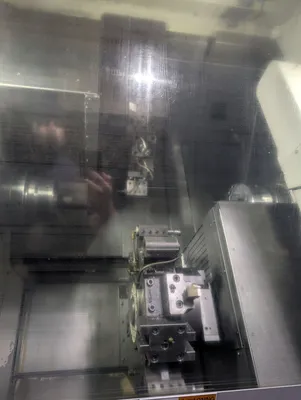

Turret
Number of Tool Stations: 24
Number of Indexing Positions: 24
Rotating Tool
Rotary System: Individual Rotation
Spindle Speed: 6000 rpm
Spindle Speed Range: Stepless
Number of Rotation Tool Station: 12x2
Drive motor power
Main Spindle: 25 HP
Right Spindle: 25
Driven Tool Spindle: 7.5 HP
Dimensions: 166" x 100" x 89"
Machine Weight: 31,000 (14000) lbs (kg)
