2019 DOOSAN NHP-5000 WITH 12 PALLET FMS CNC 4 AXIS HORIZONTAL MACHINING CENTER | IH 7612279
ConditionUsed
1 available

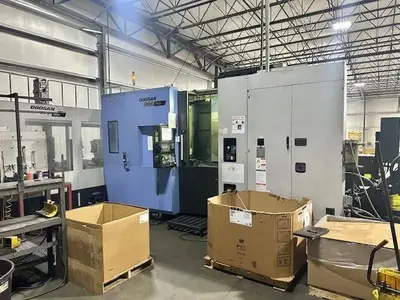

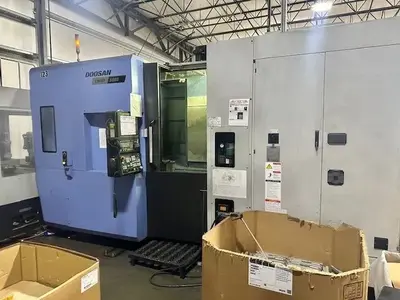

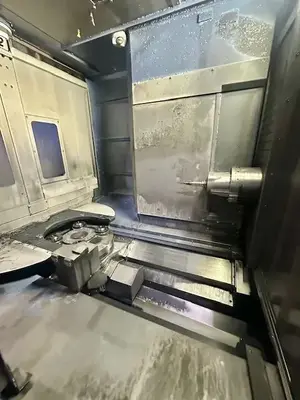

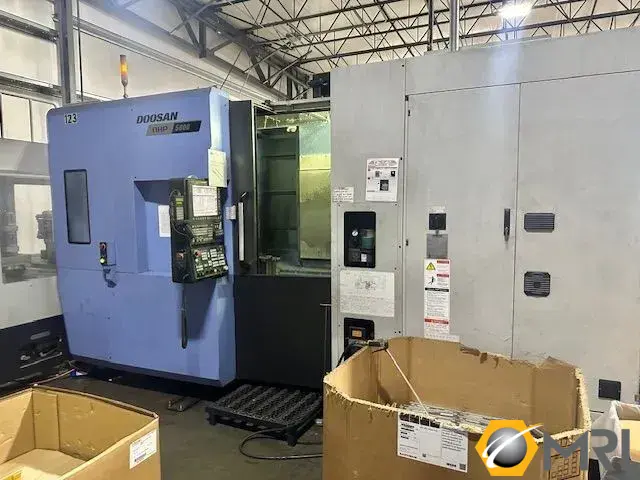

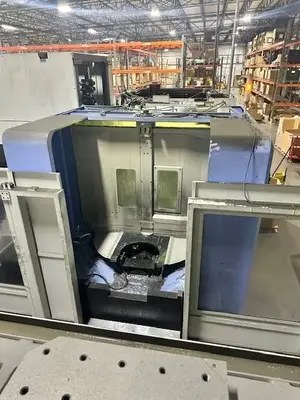

DOOSAN NHP 5000 CNC 4 AXIS HORIZONTAL MACHINING CENTER WITH 12 LINEAR PALLET SYSTEM, CONTROLLER AND ONE LOADING STATION. IN USED CONDITION, PERFECT FOR ENHANCING YOUR PRODUCTION LINE WITH ADVANCED TECHNOLOGY FROM A TRUSTED MANUFACTURER.
FANUC 31IB CNC COLOR CONTROL
80MG PART PROGRAM STORAGE (20,480 M)
NANNO SMOOTHING
LNS CHIP BLASTER THRU SPINDLE COOLANT 1000 PSI
MANUAL GUID E I CONVERSATIONAL PROGRAMMING
275 MATRIX AUTO TOOL CHANGER
TOOL RETRACT & RECOVER

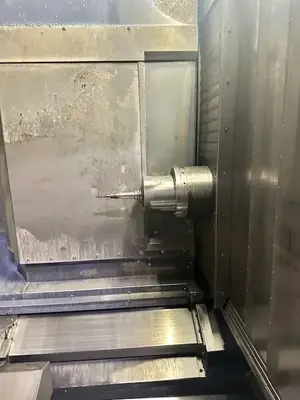

15,000 RPM BIG PLUS SPINDLE
.001 DEGREE

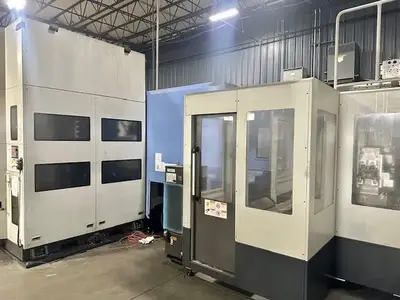

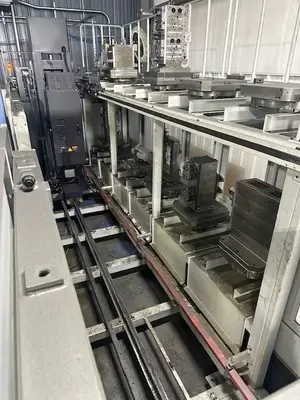

12 LPS LINEAR PALLET SYSTEM (6 UPPER, 6 LOWER)
FASTEMS INTERFACE
AIR LIMIT PALLET CLAMPING SYSTEM
10 PALLETS

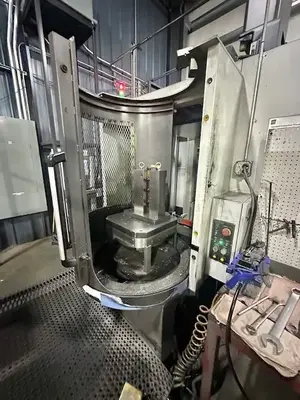

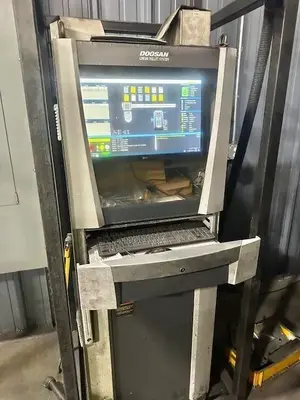

(1) LOADING STATION W/ LPS CONTROLLER
VIDEO MONITOURING SOLUTION (MACHINING AREA & LPS SET UP)
TOOL OFFSETS 400 PAIRS
48 PAIRS WORK COORDINATES
REMOTE DPM + COSY REMOTE H/W/(LPS)
ADVANCED TOOL & PALLET RETRACT FUNCTION
HAND HELD REMOTE MPG
CHIP CONVEYOR
FLOOD AND FLUSHING COOLANT
PCMCI CARD SLOT
USB PORT
RENISHAW PART PROBE
AUTO TOOL DAMAGE DETECTION BK 9
AUTO TOOL MEASUREMENT TOUCH PROBE RMI - Q ONLY RENISHAW
RIGID TAPPING
CUSTOM MACRO B
EMBEDDED ETHERNET FUNCTION

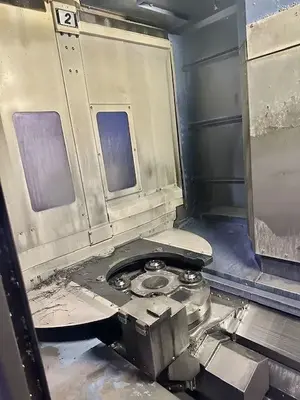

PALLET SIZE LENGTH 19.7"
PALLET SIZE WIDTH 19.7"
NUMBER OF PALLETS 12
PALLET WEIGHT CAPACITY 1,102 LB
PALLET SURFACE TO SPINDLE CENTER 3.1 ~ 29.1
PALLET CENTER TO SPINDLE GAGE LINE 3.9 ~ 38.6
WORKPIECE DIMENSIONS 31.5" x 39.4"
X - AXISTRAVEL 28.7"
Y - AXIS TRAVEL 28.7"
Z - AXIS TRAVEL 34.6"
B - AXIS TRAVEL .001
RAPID TRAVERSE RATE - X 2,364 in/min.
RAPID TRAVERSE RATE - Y 2364 ipm
RAPID TRAVERSE RATE - Z 2364 ipm
CUTTING FEED RATE 1,181 in/sec.
SPINDLE SPEED 15,000 RPM
SPINDLE TAPER 40
NUMBER OF RANGES 2
MAIN MOTOR 49.6 HP
AUTOMATIC TOOL CHANGER 60
TOOL DIAMETER 3.0", 6,7"
TOOL LENGTH 21.7"
TOOL WEIGHT 26.5 LB
TOOL CHANGE TIME 2 sec.
MACHINE WEIGHT 25,352 LB
CONTROL CNC FANUC 31I B CNC COLOR CONVERSATIONAL CONTROL
