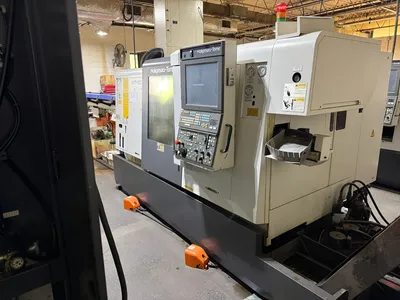

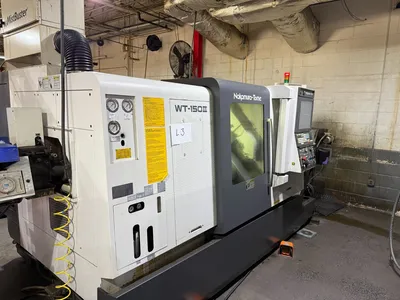

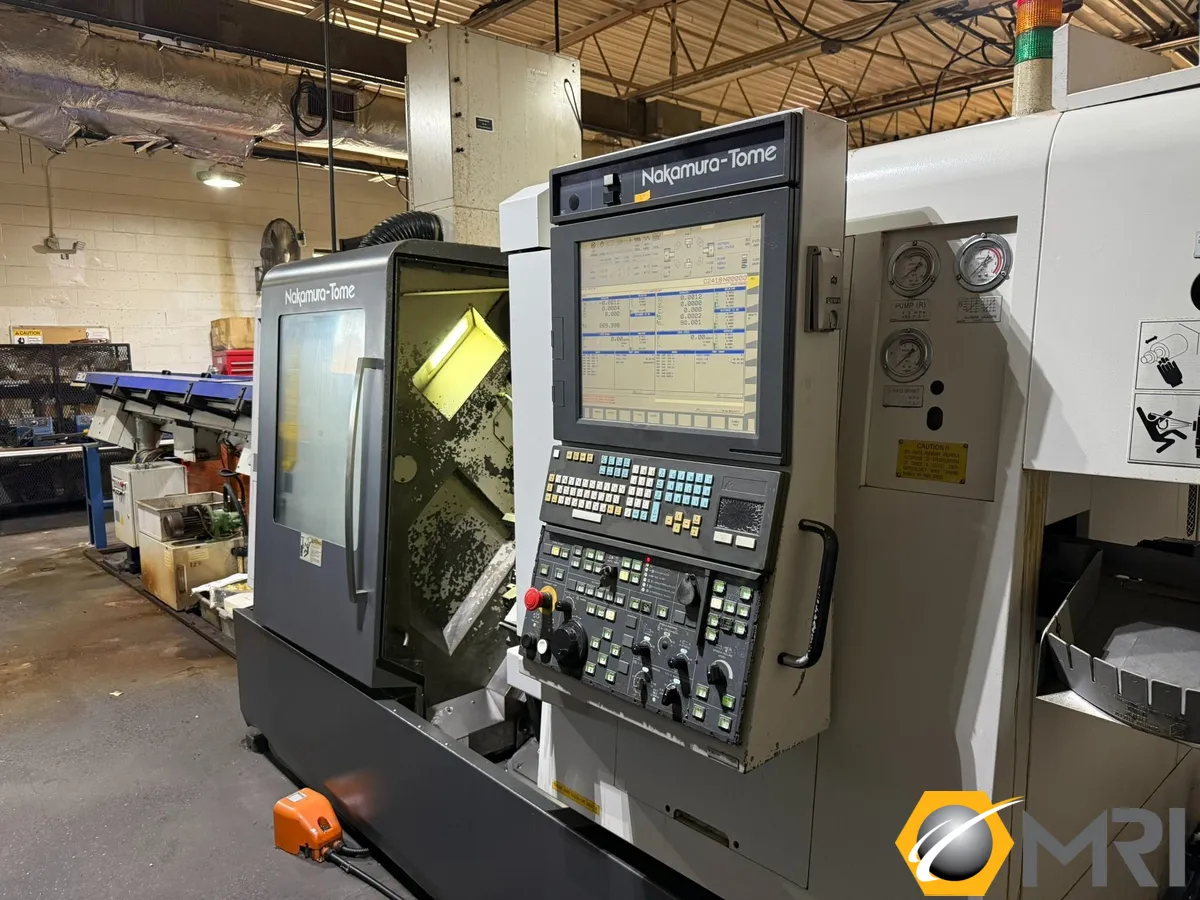

Nakamura Tome WT-150II CNC LATHE, 2011

General Specifications from OEM Brochure:
Buyer is responsible for verifying all specifications

Capacity : 51 mm
Max Turning Diameter: 7.5 (190) in (mm)
Distance Between Spindle Noses: max 31.5 (800) / min 7.9 (200) in (mm)
Max Turning Length: 20.3 (515) in (mm)
Bar Capacity: 2 (51) in (mm)
Bar Capacity L-Spindle: 2.0 (51) in (mm)
Bar Capacity R-Spindle: 2.0 ( 51 ) in (mm)
Chuck size: 6 (165) in (mm)

Axis Travel

Slide Travel (B): 23.7 (600) in (mm)
Slide Travel (X1/X2): 6.6 (167.5) in (mm)
Slide Travel (Z1/Z2): 20.3 (515) in (mm)

Left and Right Spindle
Spindle Speed: 5000 rpm
Spindle Nose: A2-5

C-Axis
Least Input Increment: 1E-3 degree

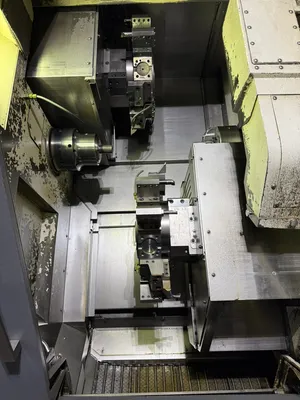

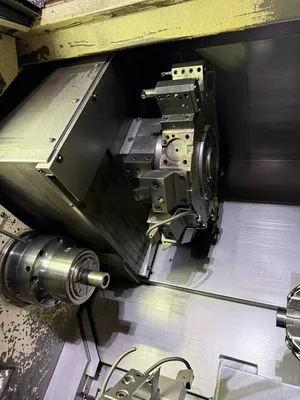

Turret
Number of Tool Stations: 24
Number of Indexing Positions: 48

Rotating Tool
Rotary System: Individual Rotation
Spindle Speed: 6000 rpm
Spindle Speed Range: Stepless
Number of Rotation Tool Station: 12x2

Drive motor power
Main Spindle: 20 HP
Right Spindle: 15
Driven Tool Spindle: 7.5 HP

Machine Weight: 19621Lb (8900) lbs (kg)
