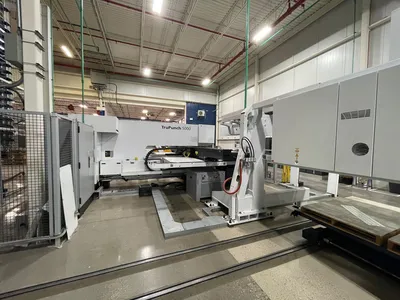

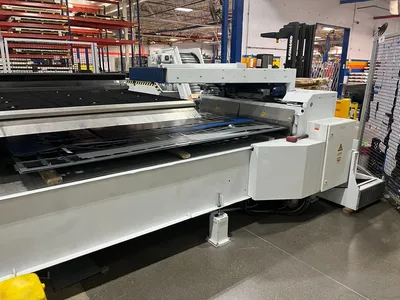

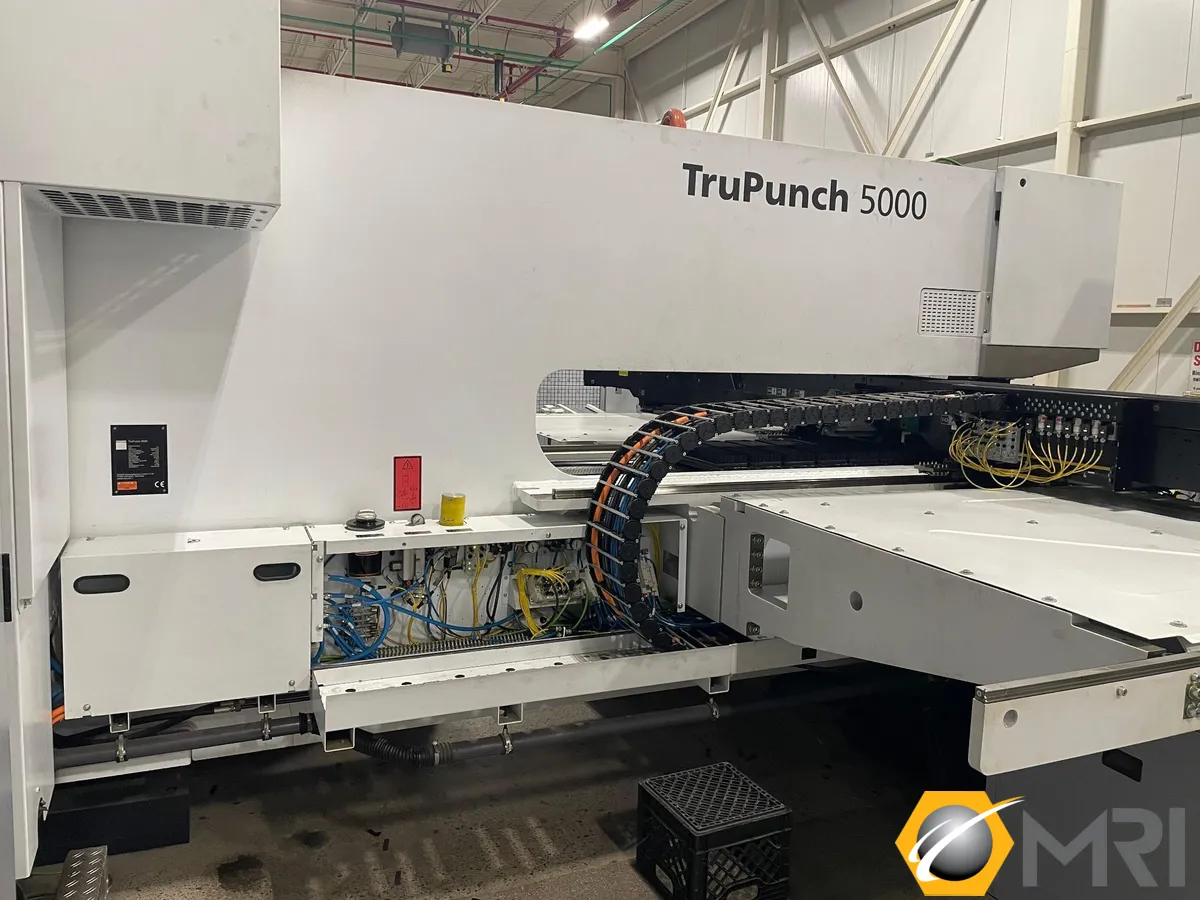

TRUMPF TRUPUNCH 5000 LARGE FORMAT PUNCHING MACHINE (S12), NEW 2016
ConditionUsed
1 available
TRUMPF TRUPUNCH 5000 LARGE FORMAT PUNCHING MACHINE (S12), NEW: 2016
61" x 120" TABLE

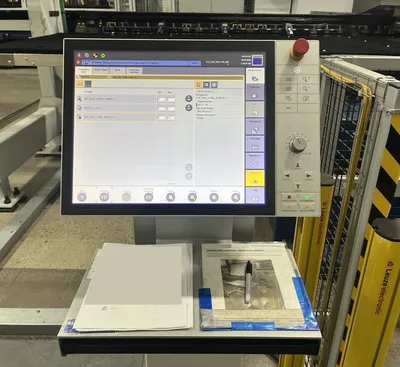

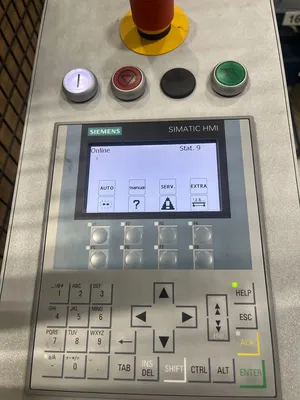

SIEMENS SINUMERIK 840D CONTROL

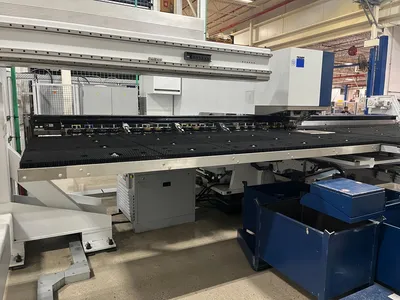

LARGE FORMAT 60" x 120" BRUSH TABLES
ACTIVE DIE

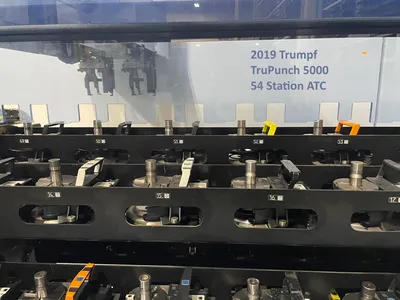

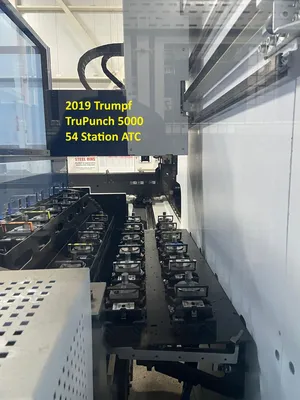

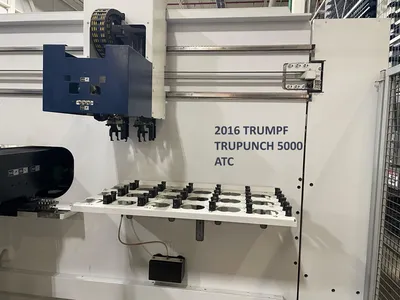

18 STATION TOOL TOOLMASTER LINEAR ATC
SHEARMASTER
SHEETMASTER
INTERGRATED FLATTENING
MULTI SHEAR
MULTI BEND
TAPPING DRIVE
HIGH SPEED MARKING
ENGRAVING
WHEEL TECHNOLOGY FUNCTION - FORMING & CUTTING
ADAPTIVE STROKE CALIBRATION
DIE SPRAY LUBRICATION
SMART PUNCH MONITORING (BREAKAGE CONTROL FOR PUNCH)
SOFTPUNCH
STRIPLINE
INDEPENDENT AUTOMATIC CLAMP CLOSING
ANTI-VIBRATION ISLOLATION PADS
PNEUMATIC REPOSITION CYLINDERS

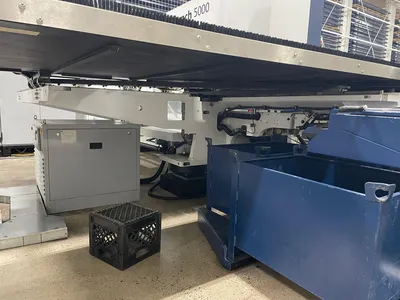

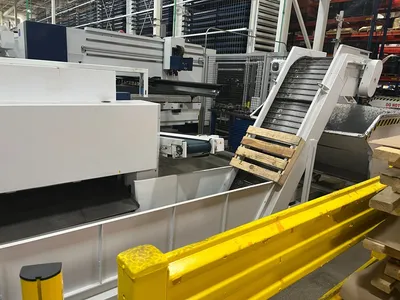

CHIP/SLUG CONVEYOR WITH BOX
VARIABLE VACUUM SLUG REMOVAL

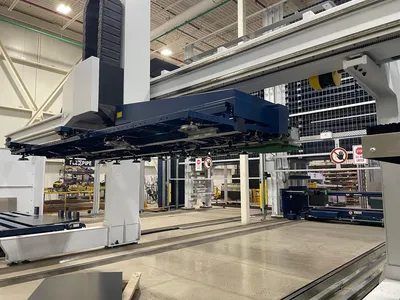

LOADING/UNLOADING AIDS
SMALL PARTS BLOW-OUT DEVICE
WIRELESS OPERATION POINT AND MOBILE-CONTORL APP
RCI REMOTE CONTORL INTERFACE
SHEET COLLISION DETECTION

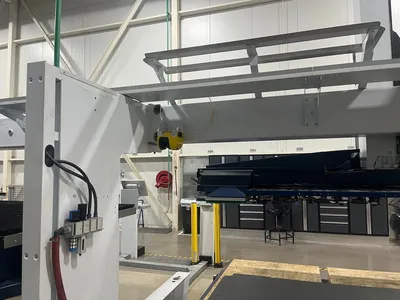

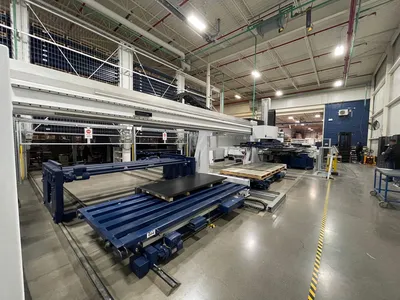

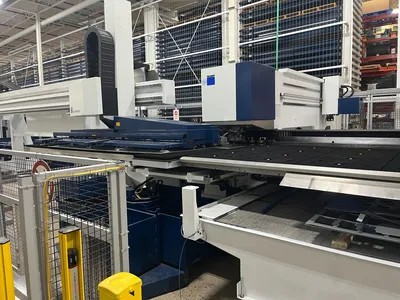

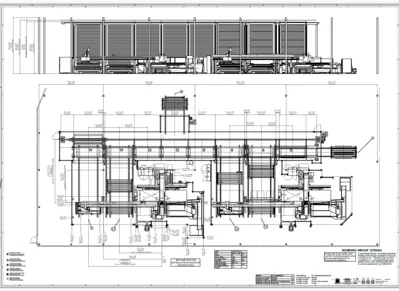

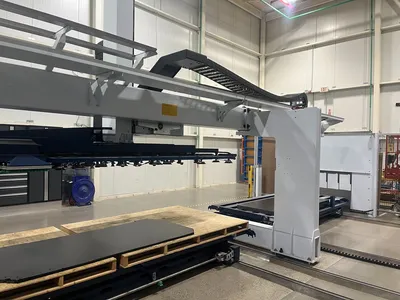

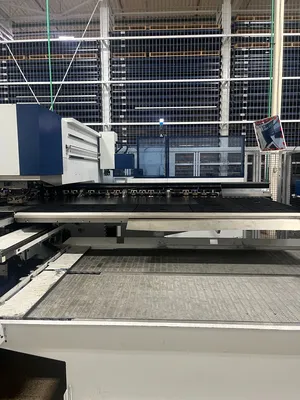

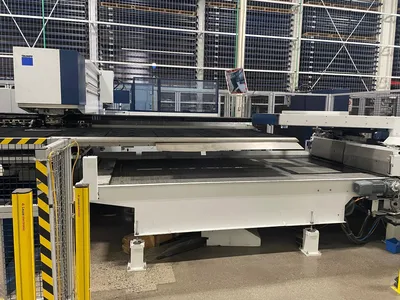

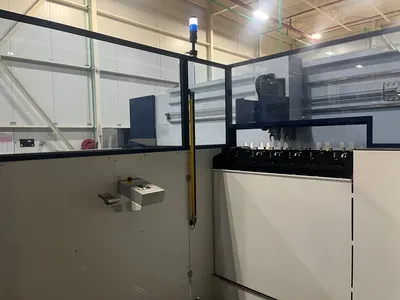

MACHINE BEING OFFERED AS STAND ALONE UNIT OR AS COMPLETE SYSTEM, AS SEEN IN PHOTOS, CONSISTING OF TWO TRUMPF TRUPUNCH 5000s AND 8-TOWER, 229 PALLET, STOPA SYSTEM. OFFERS CONSIDERED FOR PARTIAL STOPA ALSO CONSIDERED.
MAX. PUNCHING FORCE: 25 TONS
CONSTRUCTION: C-FRAME
WORKING RANGE:
- X-AXIS: 120”
- Y-AXIS: 61"
MAX. SHEET THICKNESS: 0.31"
MAX. WORKPIECE WEIGHT: 617 LBS
NUMBER OF TOOLS: 21
SPEEDS:
- X-AXIS: 3,937 IPM
- Y-AXIS: 2,362 IPM
- SIMULTANEOUS: 4,567 IPM
- C-AXIS: 500 RPM
MAX. STROKE RATE:
- PUNCHING: 1,350 SPM
- MARKING: 3,000 SPM
MULTITOOL TOOL CHANGING TIME: 0.3 SEC.
PART REMOVAL:
- MAX. PART SIZE, PART REMOVAL FLAP, PUNCHING: 19.69" x 19.69"
- MAX. PART SIZE, FIXED CHUTE, PUNCHING (WITH MOVING TABLE): 3.1" x 1.97"
APPROX. DIMENSIONS: 321”(L) x 322"(W) x 82"(H)
