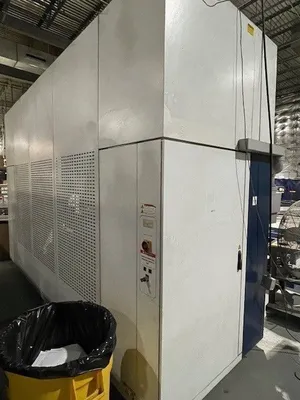

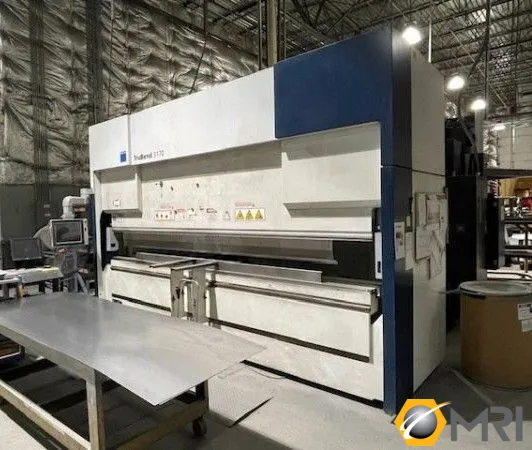

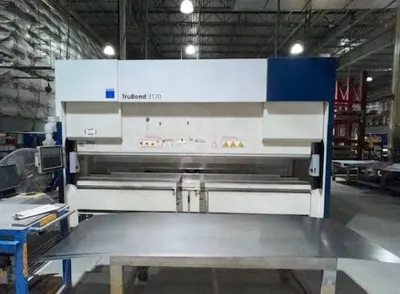

TRUMPF TRUBEND 3170 CNC PRESS BRAKE, NEW: 2016 | IH 7612315

TRUMPF TRUBEND 3170 CNC PRESS BRAKE, NEW: 2016 | IH 7612315

Sell Your TRUMPF TRUBEND 3170
877-568-2121
inquiries@machineryresources.com
ConditionUsed
1 available
Sell Your TRUMPF TRUBEND 3170

Overview

Type:
BRAKES, PRESS, N/C & CNC
Manufacturer:
TRUMPF
Model:
TRUBEND 3170
Year:
2016
Stock #:
7612315
Status:
For Sale

Description

TRUMPF TRUBEND 3170 CNC PRESS BRAKE, NEW: 2016
187 TONS

T3500T MULTI-TOUCH CONTROL

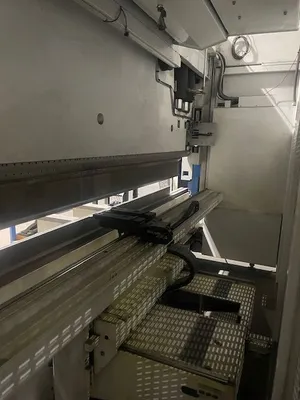

5-AXIS PROGRAMMABLE BACK-GAUGE: (X, R, Z1-Z2, X DELTA PRIME)
EXTENDED OPEN HEIGHT AND STROKE
UPPER AND LOWER HYDRAULIC CLAMPING
FOOT SWITCH
2) SHEET SUPPORTS

Tonnage187 T169.644 t
OA (Overall) Length173.4"4,404.4 mm
Between Housings160.6"4,079.2 mm
Stroke7.87"199.9 mm
Dimensions183"(L) x 65"(W) x 116"(H)183"(L) x 65"(W) x 116"(H)
Weight33,070 LBS33,070 LBS

MAX. TONNAGE: 187
MAX. BENDING LENGTH: 173.4"
DISTANCE BETWEEN COLUMNS: 160.6"
THROAT DEPTH: 16.54"
OPERATING HEIGHT: 39.37"
STROKE:
SPEEDS:
- APPROACH: 7.87 IPS
- WORKING: 0.59 IPS
- RETURN: 7.09 IPS
OVERALL DIMENSIONS: 183"(L) x 65"(W) x 116"(H)
APPROXIMATE WEIGHT: 33,070 LBS

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
