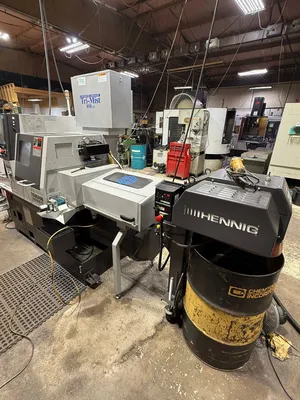

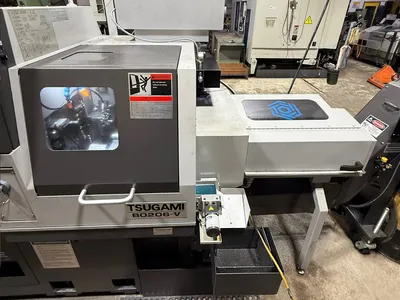

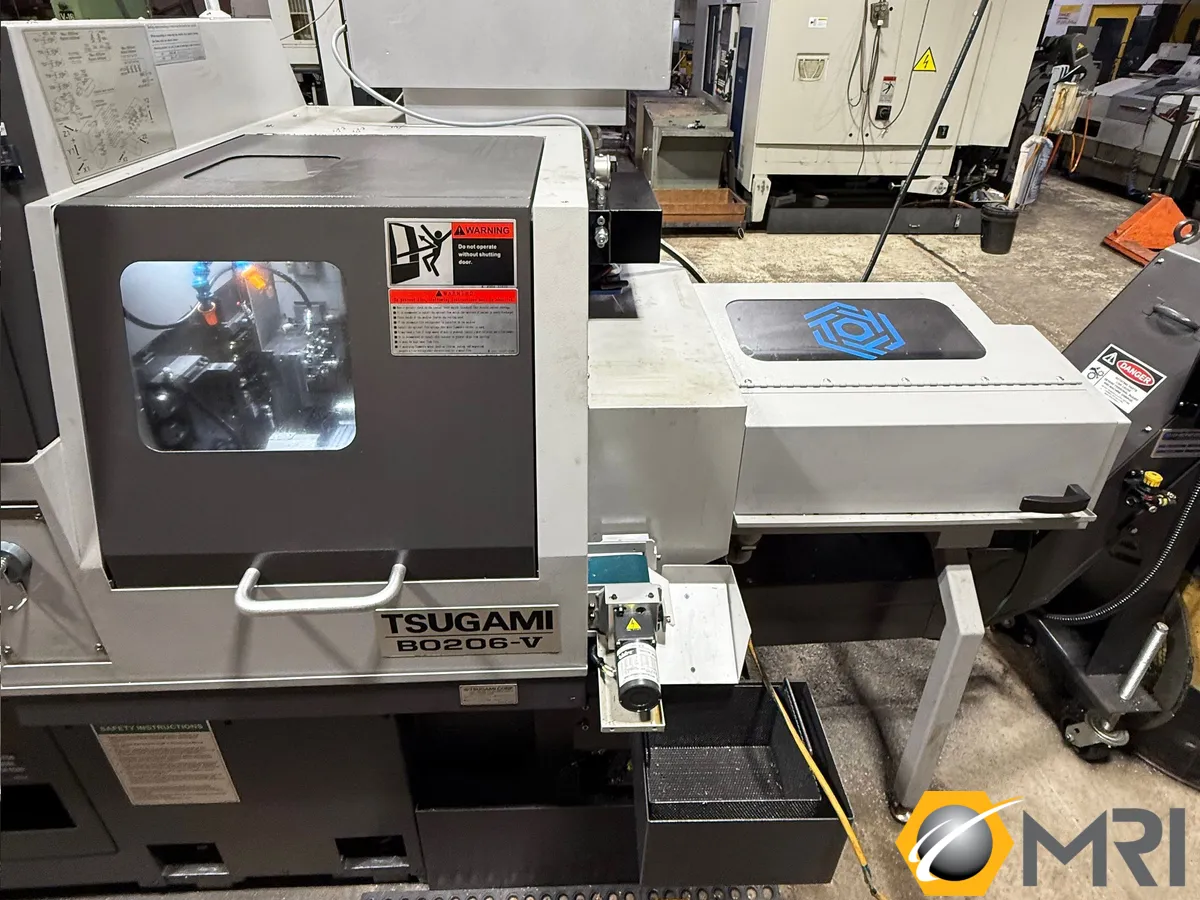

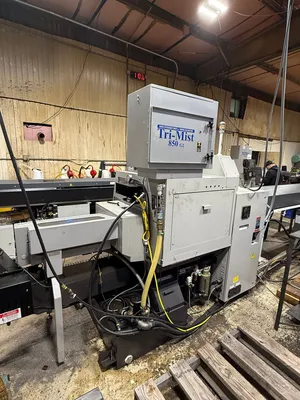

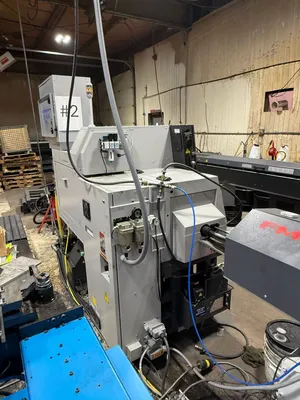

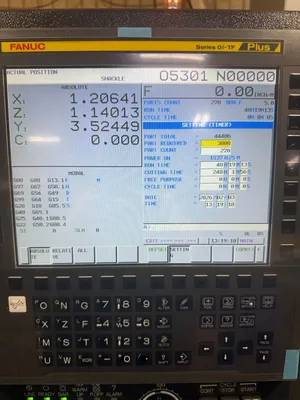

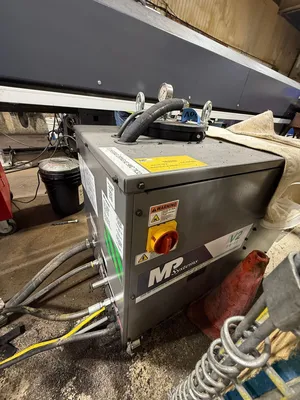

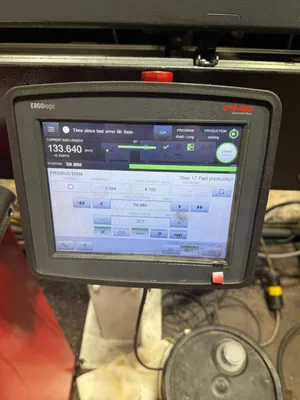

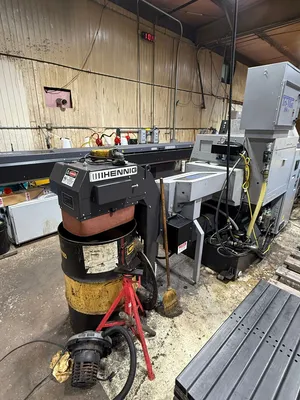

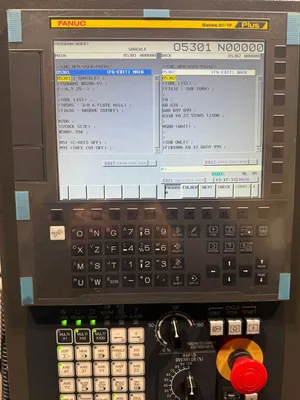

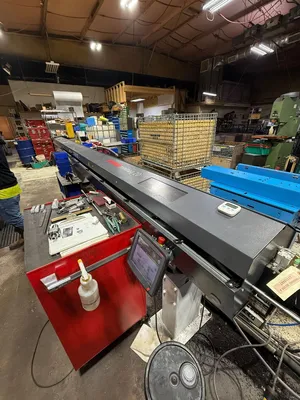

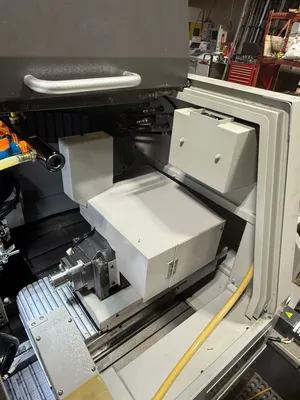

2024 TSUGAMI B0206-V CNC SWISS LATHE | IH 7612320
ConditionUsed
1 available
2024 TSUGAMI B0206-V CNC Swiss Lathe offers precision with a max machining diameter of .787", main spindle speed of 10,000 rpm, and 28 tool positions. Equipped with Abile Software for easy programming, dual spindles, and eco mode for efficient operation.
2 Spindle Modular Cross Drill 2 ER16 with Rigid Tapping, Max Speed: 8,000 rpm
3 Spindle Cross Drill- 3 ER11 with Rigid Tapping, Max Speed: 8,000 rpm
4 ID Fixed Tool Positions Main Spindle
Abile Software- Simplified PC based CAM Programming Aid
AC Servo Axes Control
Automatic Pick-Off Positioning
Back Spindle Collet Chuck Unit-TF25
B
Back Spindle Speed 12,000 rpm
C Axis Synchronization
Centralized Lubrication System with Oil Level Detector
Coolant Tank with Coolant Flow Detector
Direct Drive Rotary Guide Bushing-TD26
Door Interlock with Switches
ECO Mode
Energy Saving Mode
ER16 Holders, 4 Main Spindle and 4 Sub Spindle
Hand Tools (spanners, wrenches, etc.)
Leveling Bolts & Pads
Machine Test Report
Main Spindle Collet Chuck Unit-TF25 22.
Main Spindle Speed 10,000 rpm
One Complete Set of Manuals
Parameter List
Part Program Check by MPG
Parts Conveyor and Basket
Rapid Feed Rate Override Function
Simultaneous Axes control
Spindle Cooling for Main and Sub Spindle Motors
Tool Post Interference Prevention
Tool Storage Capacity- 6 OD Turn, 5 Cross Drills, 4 Static Drills
Work Forward Discharge Unit (Air-Blow, Variable Stroke)
Work Front Ejector and Confirmation
Work Light
MACHINE
Maximum Machining Diameter .787"(20mm)
Maximum Headstock stroke (Guide Bushing) 6.69" (170mm)
Maximum Headstock stroke (Chucker) 1.771" (45mm)
Maximum Main Spindle Speed 10,000 rpm
Live Tool Spindle Speed 8,000 rpm
Total Tool Positions 28
Sub Spindle Maximum Machining Diameter .787"(20mm)
Sub Spindle Front Ejection maximum length 3.15" (80mm)
Sub Spindle Speed 12,000 rpm
Max Tool Spindle Slotting Cutter Diameter 1.18"(30mm)
Max Rapid Traverse Rate 36 M/min
Input Power 11.0 KVA
Compressed Air Requirements 60psi
Weight 3,968 lbs. (1,850 Kg)
Coolant Tank Capacity 180L (47 Gal.)
Width x Depth x Height 69"x 41.5"x 67"
MOTORS
Main Spindle 7.5 hp (3.7/5.5 kW)
Sub Spindle 5.0 hp (2.2/3.7 kW)
Axes Motors .67 hp (.5 kW)
Live Tool 1.34 hp (1 kW)
Coolant 0.36 hp (.25 kW
MOUNTABLE TOOLS
Gang Tool Post (Turning) 6
Gang Tool Post (Live) 5
Front Drilling 4
Back Drilling 4 Stationary/6 Live
Tooling Size
Turning Tools 1/2" square
Main Spindle ER Collet Holders 20mm Dia.
Sub Spindle ER Collet Holders 20mm Dia.
Collets / Bushings
Main Spindle Collet TF 25
Sub Spindle Collet TF 25
Guide Bushing TD26
Live Tool Collet ER16/ER11
