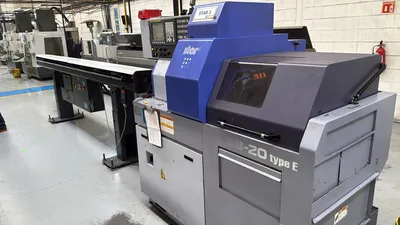

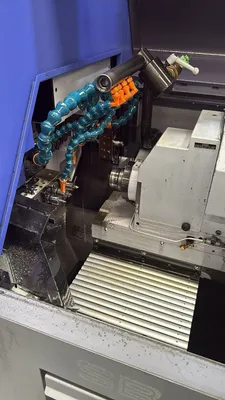

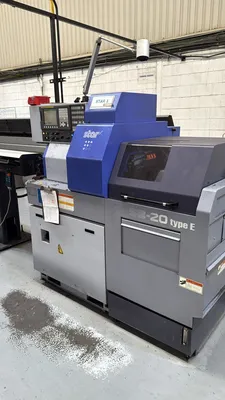

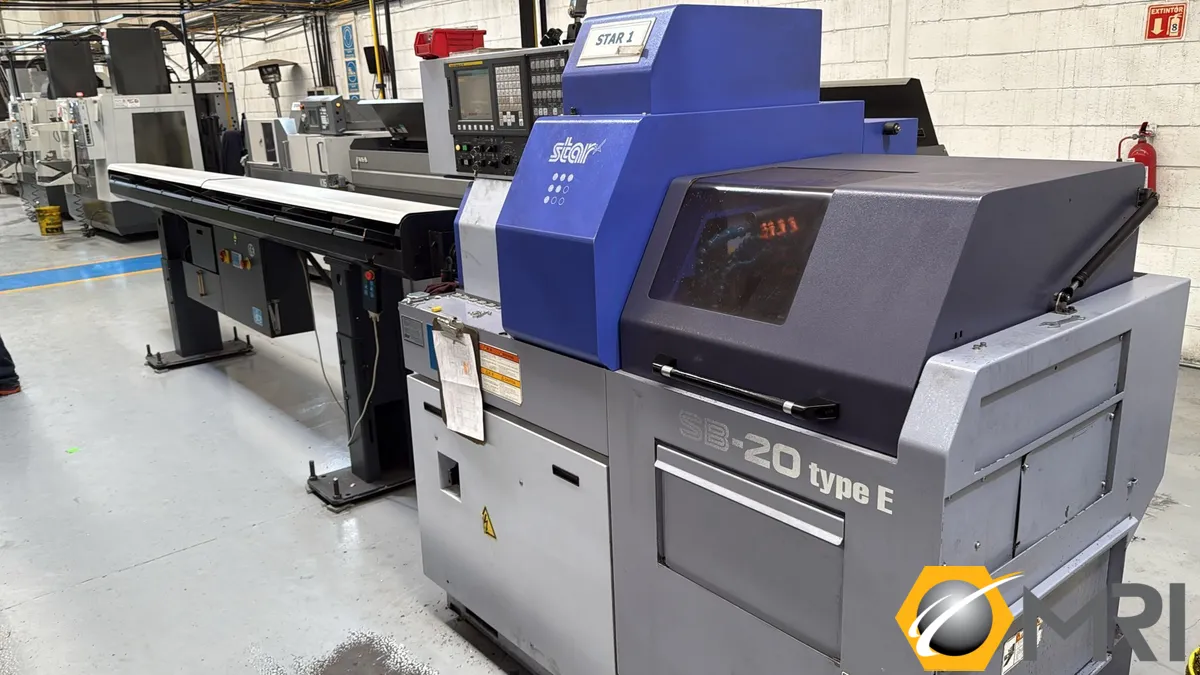

2012 STAR SB-20R TYPE E CNC SWISS LATHE | IH 7612323

2012 STAR SB-20R TYPE E CNC SWISS LATHE | IH 7612323

Sell Your STAR SB-20R TYPE E
877-568-2121
inquiries@machineryresources.com
ConditionUsed
1 available
Sell Your STAR SB-20R TYPE E

Overview

Type:
CNC Swiss Lathe
Manufacturer:
STAR
Model:
SB-20R TYPE E
Year:
2012
Stock #:
7612323
Status:
For Sale

Description

2012 STAR SB-20R TYPE E CNC Swiss Lathe for sale. Features 20 mm capacity, 3.7 kW power, and 10,000 RPM. Equipped with full C spindle indexing. Includes 6 tools weighing 1,700 kg. Compact design: 1,895mm x 1,133mm x 1,750mm. Ideal for precision work.

Capacity20 mm0.7874"
Power3.7 kW5 hp
RPM10,000 RPM10,000 RPM
Main Spindle IndexingFull CFull C

MAX. HEADSTOCK 183MM
STROKE REVOLVING GB 155MM
MAX. DRILLING CAPABILITY 10MM
RAPID FEED RATE 35M/MIN (X,Y.Z.XB.ZB)
MAX. TAPPING CAPABILITY M8XP7 .25
TOOL 6 TOOLS (□12MM)
WEIGHT 1,700 KG
DIMENSIONS WXDXH 1,895MM X 1,133MM X 1,750MM

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
