2024 TSUGAMI B0126-V CNC SWISS LATHE | IH 7612326
ConditionUsed
1 available

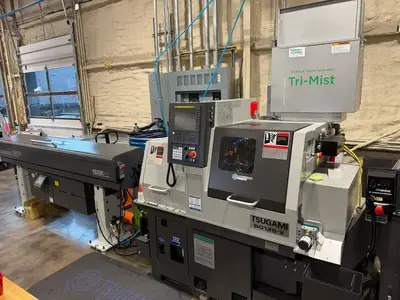

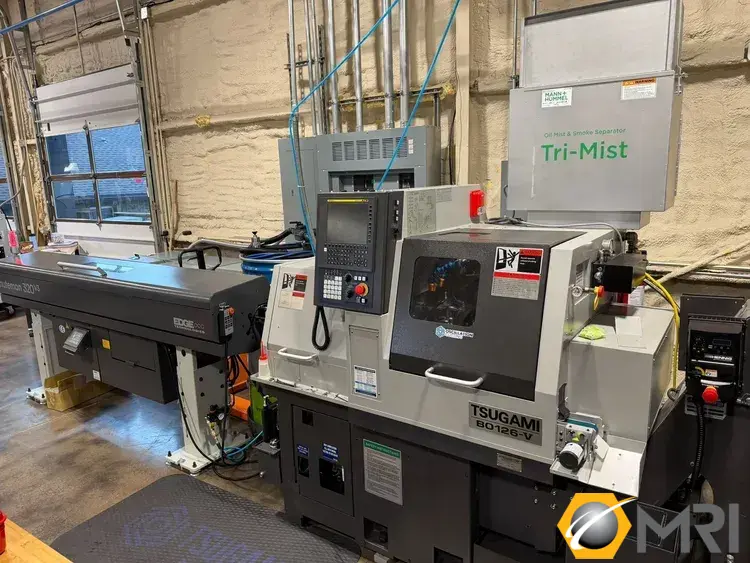

2024 TSUGAMI B0126-V CNC Swiss Lathe in excellent condition. Features 12mm max bar stock, 5 hp power, 12,000 RPM, and 6-axis control. Equipped with advanced milling and tooling options, FANUC 0i-TF Plus control, and various accessories. Only 15 hours used.

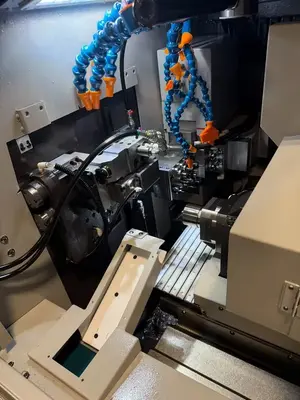

Y2 Axis Added to Back Tool Post – enabling multiple back milling operations plus simultaneous operation of the main and sub spindle

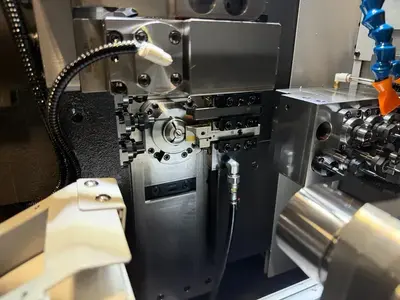

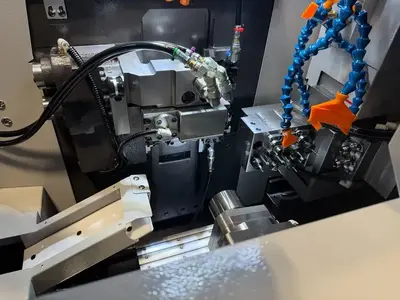

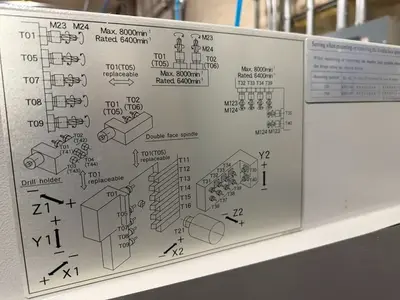

28 Total Tool Positions – multiple modular rotary and fixed tool configurations
Back Milling Operations – Back slotting, back end milling, back cross drilling/tapping
170 mm Stroke, 45 mm when used in chucker mode
Rapid Traverse Rate of 36 m/min – shortens idle and cycle times
Enriched NC Functions Standard – tool nose radius compensation, chamfering and corner rounding and cutoff detection plus many more..

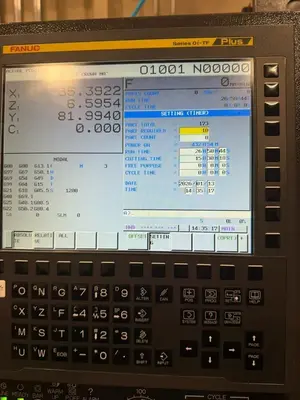

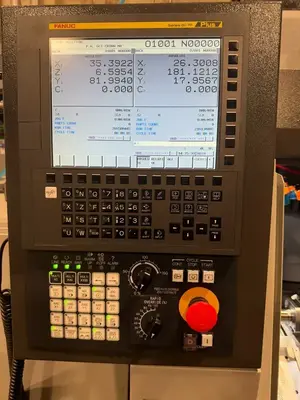

Fanuc 0i-TF Plus CNC Control

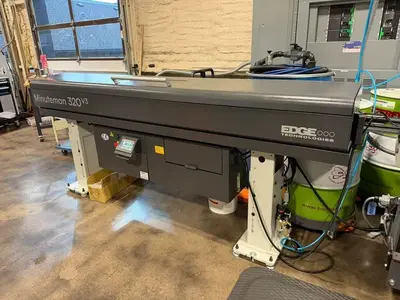

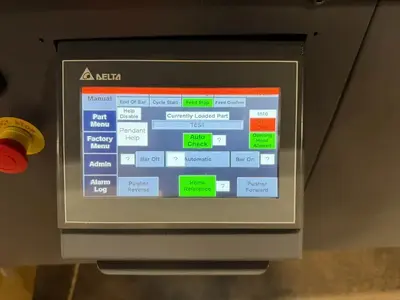

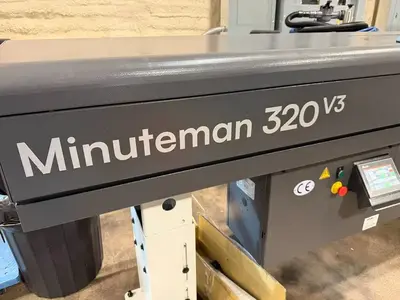

Edge Minuteman 320 V3 Bar Feeder
High Pressure Pump with Built in Chiller

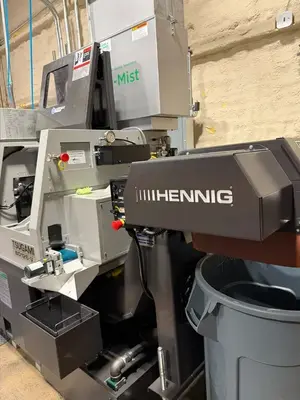

Filter Mist Unit

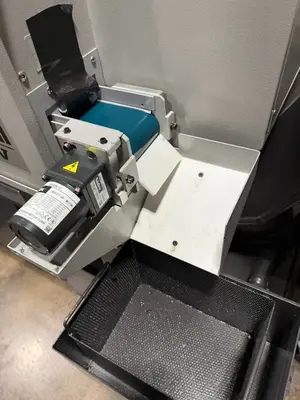

Work Conveyor
Thru Sub Coolant
Chip Conveyor
Fire Trace
Chucker Kit
Oscillation Cutting for X1 and Z1 Axes
Oscillation Cutting for X2 and Z2 Axes

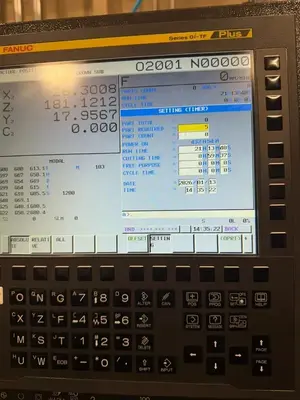

New price of this machine was $306k, only 15 hours cutting time.
Maximum Bar Stock 12mm
Sliding Headstock / Guide Bushing YES
CONVERTIBLE: Run w/o Guide Bushing (chucker) YES
Max Headstock Stroke w/ Guide Bushing 170 mm / 6.69”
Max Headstock Stroke in Chucker Mode 45 mm / 1.77”
# Tool Positions 28
# Live Tool Positions 11
Control FANUC 0i-TF Plus
Sub Spindle Speed 12,000 rpm
Live Tool Speed 8,000 rpm
Main Spindle Motor 3.0/5.0 Hp (2.2/3.7 kW)
