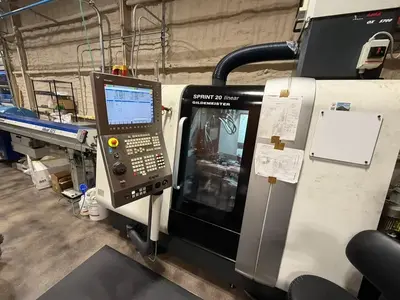

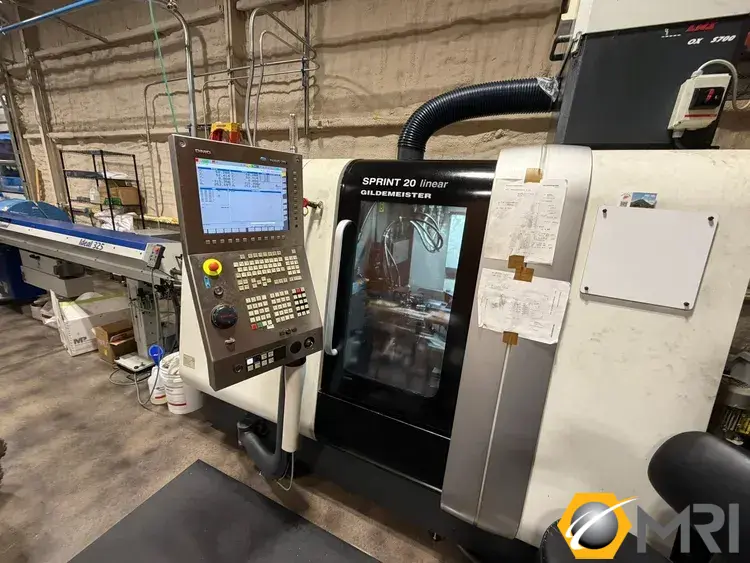

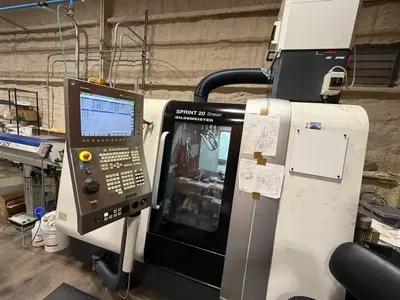

2011 GILDEMEISTER SPRINT 20 LINEAR CNC SWISS LATHE | IH 7612327
ConditionUsed
1 available
2011 GILDEMEISTER SPRINT 20 LINEAR CNC Swiss Lathe available. Features include a max spindle speed of 10,000 RPM, 6+2 axes, high-pressure coolant system, and DMG SLIMline Fanuc 310i control. Equipped with IEMCA Ideal 325 12ft barfeed and more.
Conversion Kit from Steady to Sliding Headstock
Thru Spindle Coolant on Counter Spindle

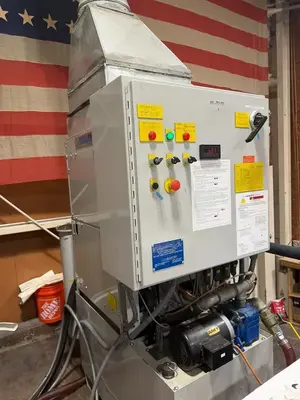

Chip Blaster High Pressure Unit
Chip Conveyor

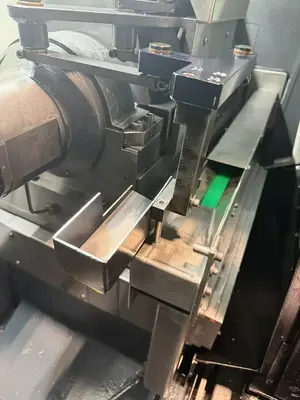

Auto Parts Catcher
Parts Exit Conveyor

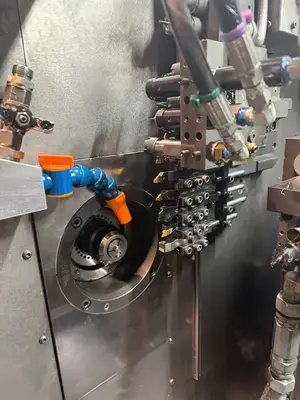

Synchronous Rotary Guide Bushing

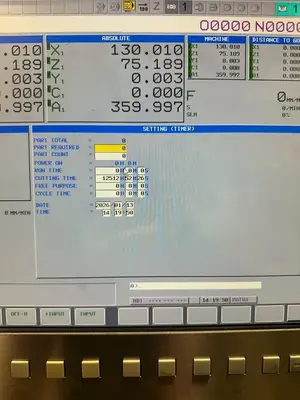

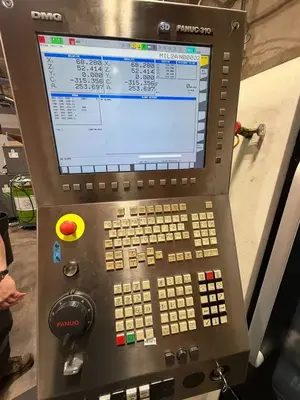

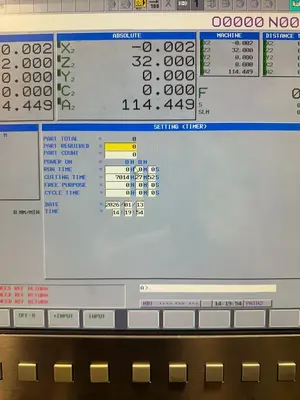

DMG SLIMline Fanuc 310i Control

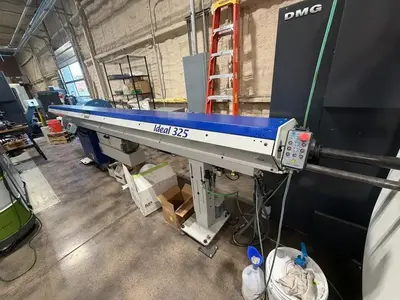

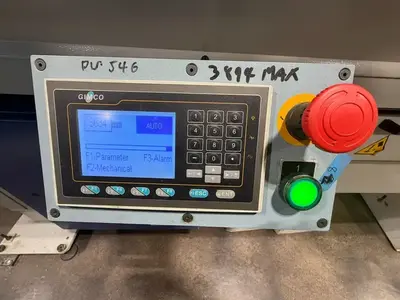

IEMCA Ideal 325 12ft Magazine Barfeed
6 OD / 5 Live (6,000 rpm) / 6 End Working Tools for Main Spindle
4 OD / 5 Live (6,000 rpm) / 4 End Working Tools for Counter Spindle
C-Axis Live Tool Capability on Main & Counter Spindle
Main Spindle:
Z-1 Spindle Stroke: 3.1496"
Bar Capacity: .7874"
Spindle Speed: 10,000 RPM
Drive Power: 7.38/4.96 HP
Run Up Time (RPM/Sec): 5,000/0.6
Bar Capacity: 0.78"
Spindle Speed: 10,000 RPM
Spindle Motor: 5 HP
Number of Axes: 6+2
Sub-Spindle:
Bar Capacity: .7874"
Spindle Speed: 10,000 RPM
Drive Power: 7.38/4.96 HP
Run up Time (RPM/Sec): 5,000/0.6
Travels:
Tool Carrier 1 - X1 (Linear) / Y-1: 1.9685" - 13.7795"
Tool Carrier 2 - Y2: 4.72"
Sub-Spindle - X2 / Z2: 9.45" - 11.81"
Rapid Traverse Rate for Linear Axes: 1,574.8 IPM
Tooling:

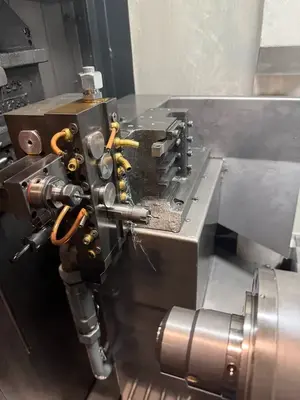

Carriage 1:
Fixed Turning Tool / Front Working Tool: 6/6
Driven Tools: 5
Speed: 6,000 RPM
Power: 1.743 HP
Carriage 2:
Fixed Turning Tool / Front Working Tool: 4/4
Driven Tools: 5
Speed: 6,000 RPM
Power: 1.743 HP
Dimensions: 191" x 58" x 92"
