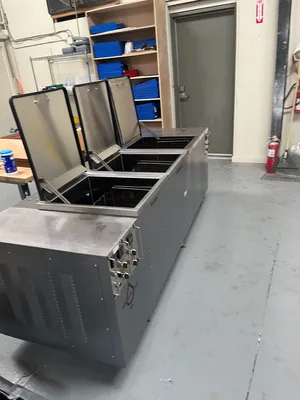

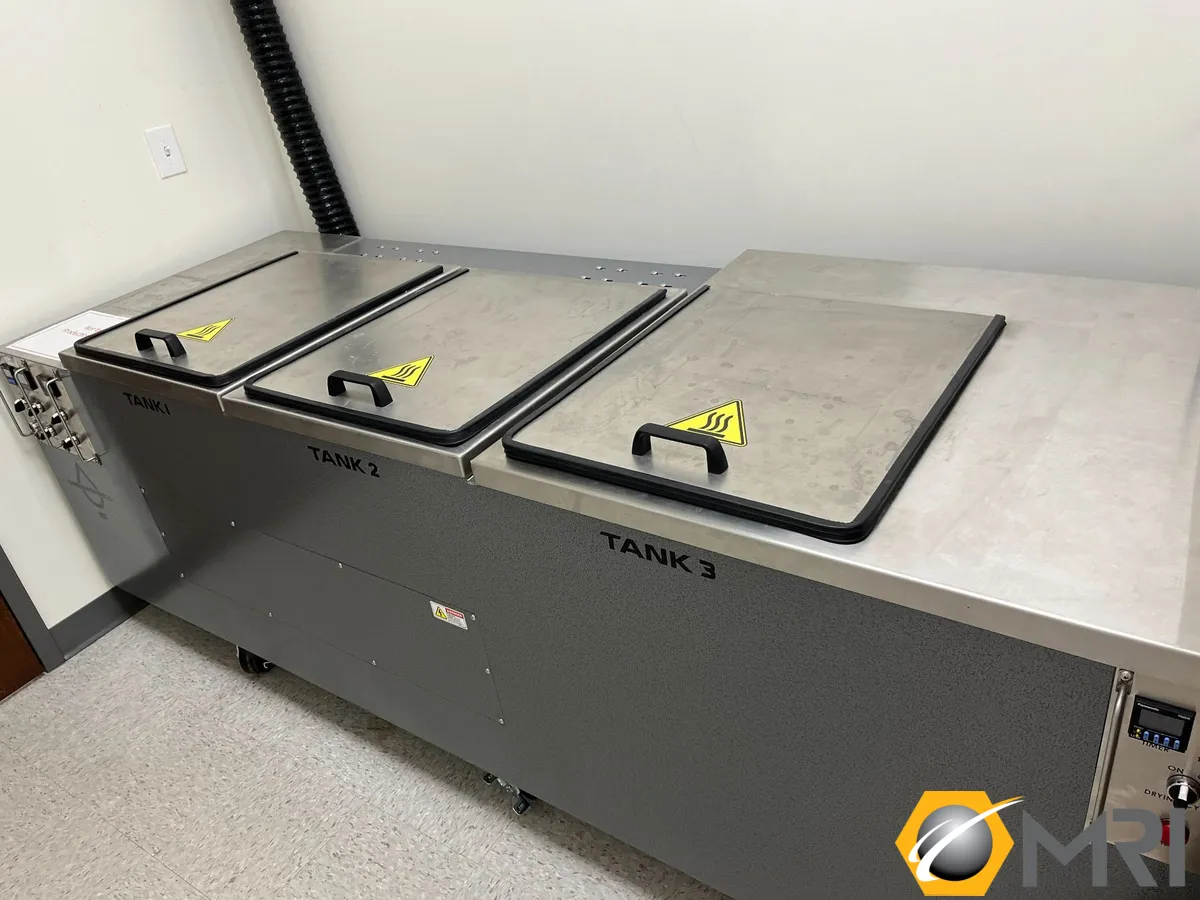

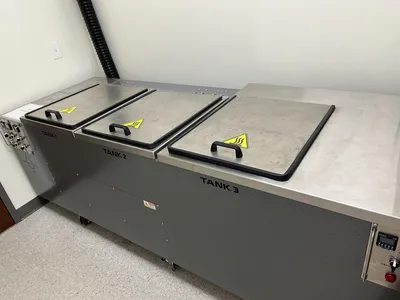

Omegasonics Mirus Custom Pro DX3 Ultrasonic Cleaning System
Ultrasonic primary wash
Dual output timer controls ultrasound and secondary filtration
Heated secondary rinse
Dual stage filtration with overflow weir
All stainless steel plumbing
Hot air dry final stage
304 #4 Stainless steel frame
3 phase/ 208-220 VAC, 30 Amp
Tank Dimensions: 18″ Length x 18″ Width x 20″ Depth
25 Gallons – each tank gallons
Equipment: Viking Pro-X3 (OMG-5022-X2)
Specifications:
Viking OMG-5022-DX-3 Pro Console
• 304 stainless steel tanks – 14 gauge
• Fully insulated tank design
• Exterior hammertone silver painted frame
• Ultrasonic generators self-contained

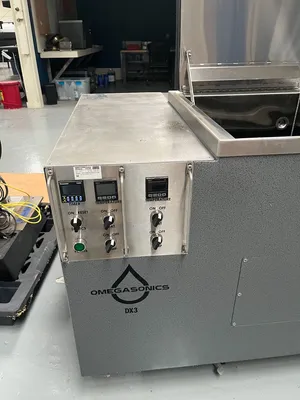

• Illuminated control panel – left side mounted
• Power ON illuminated push button
• All drain valves are manual – located in rear of machine
• Overall dimensions: 105” L-R 26” F-B x 36” H
• Power: 3 phase/ 208-240 VAC/ 30 amp
• Two (2) Year Warranty on Whole Unit
Station #1-Heated Ultrasonic Wash with Filtration
• 40 kHz frequency
• 1,000 Watts peak ultrasound
• SOUND selector switch
• Digital timer-controlled ultrasound
• Dual output timer – automatically controls filtration cycle
• 2,700 Watts heat
• Thermostatically controlled heat – J style
• HEAT selector switch
• Digital temperature control
• Fill fitting
• Low liquid level protection

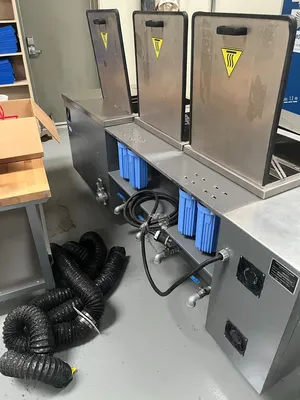

• Dual stage filtration with weir and spray bar return
• 10” filter canisters
• Stainless steel hinged lid
• Tank dimensions: 18” length (l-r) x 18” width (f-b) x 14” working depth
Station #2-Heated Ultrasonic Rinse with Filtration
• 40 kHz frequency
• 1,000 Watts peak ultrasound
• SOUND selector switch
• Digital timer-controlled ultrasound
• Dual output timer – automatically controls filtration cycle
• 2,700 Watts heat
• Thermostatically controlled heat – J style
• HEAT selector switch
• Digital temperature control
• Fill fitting
• Low liquid level protection
• Dual stage filtration with weir and spray bar return
• 10” filter canisters
• Stainless steel hinged lid
• Tank dimensions: 18” length (l-r) x 18” width (f-b) x 14” working depth
Stage #3-Hot Air Dryer
• Re-circulating Updraft Design
• 1,100 CFM blower
• 5,000 Watts heat
• Built-in thermostatically controlled heat – J style
• HEAT selector switch
• Digital temperature control
• Digital timer-controlled heat process time
• Stainless steel hinged lid – left to right
• Tank dimensions: 18” L-R x 24” F-B x 20” working depth

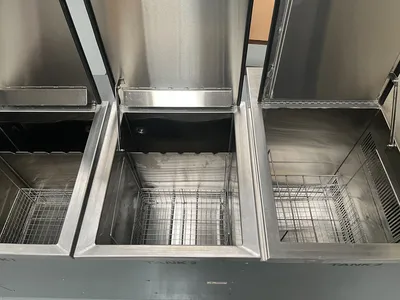

• Tank rack lifts basket 4” from bottom
