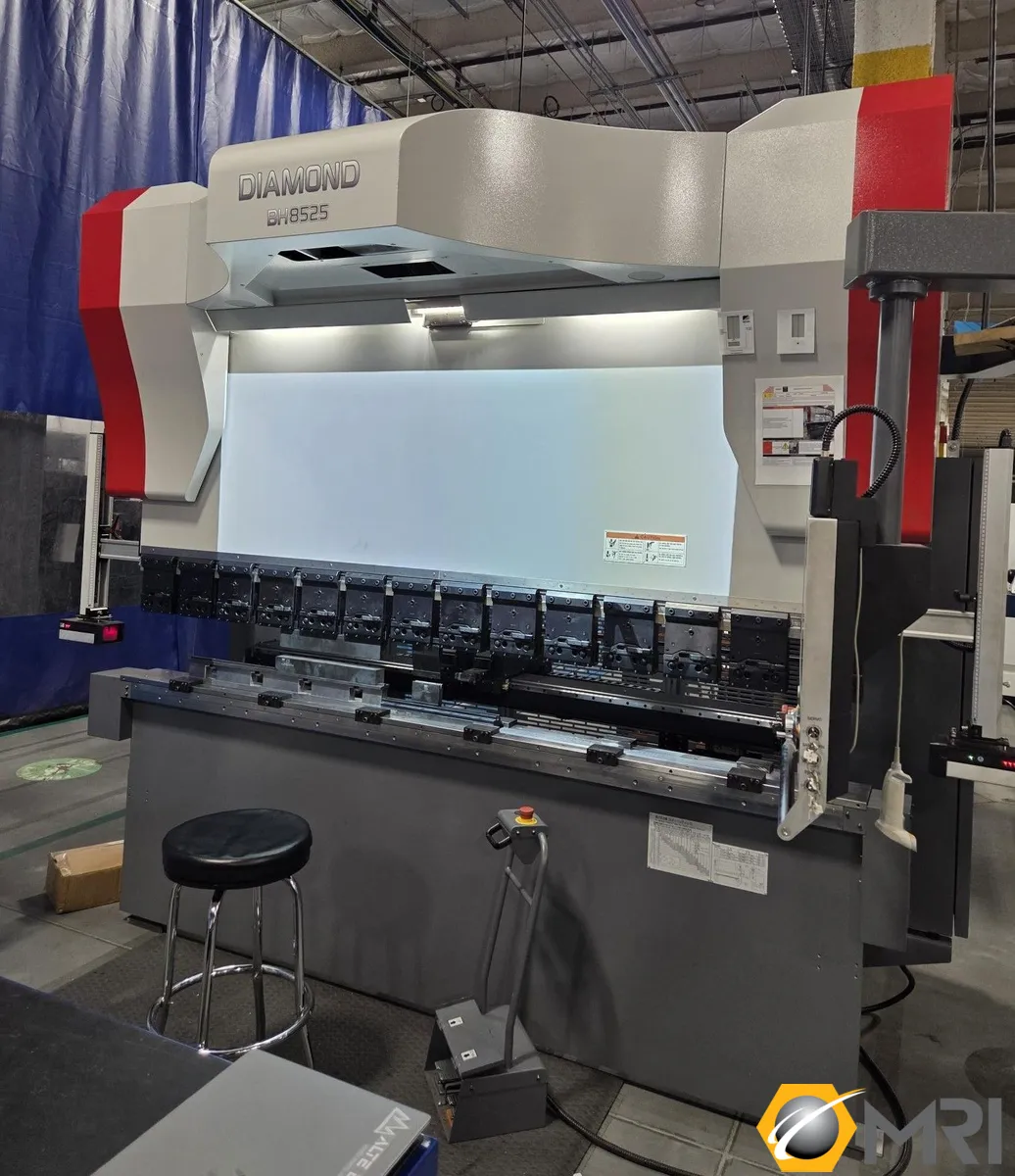

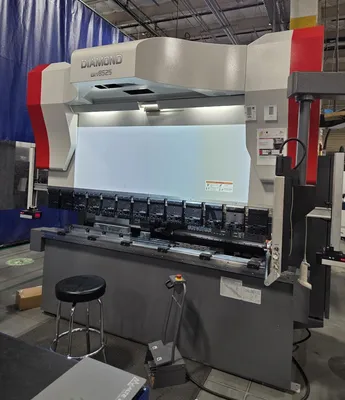

MITSUBISHI - MURATA DIAMOND BH8525 VIDERE, ELECTRIC SERVO HYBRID, CNC PRESS BRAKE, NEW: 2022
ConditionUsed
1 available
MITSUBISHI - MURATA DIAMOND BH8525 VIDERE, ELECTRIC SERVO HYBRID, CNC PRESS BRAKE, NEW: 2022
DIAMONDBEND CNC CONTROL
MOS OPERATOR SUPPORT

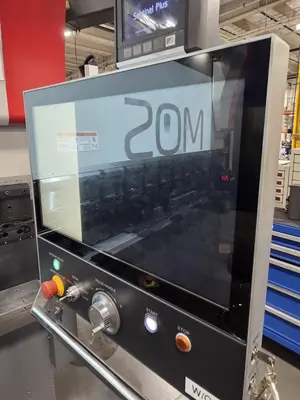

21.5" TOUCH SCREEN DISPLAY
5-AXIS PROGRAMMABLE BACK-GAUGE
AUTOMATIC THICKNESS DETECTION
VIDERE PROJECTOR SYSTEM
EUROPEAN STYLE QUICK CLAMP TOOL HOLDERS
DUAL AC SERVO MOTOR ASSISTED RAM
SENTINEL PLUS LASER GUARDING SYSTEM

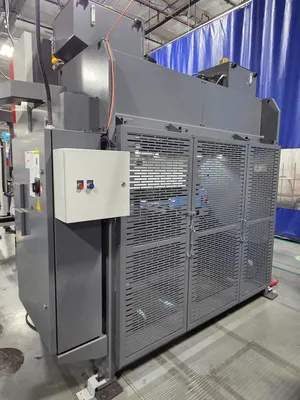

REAR SAFETY ENCLOSURE
TOOLING PACKAGE
HOURS:
- MACHINE ON: 411
- PROCESSING: 135
STROKES: 24,189
MAX. TONNAGE: 94
MAX. BENDING LENGTH: 102.4"
DISTANCE BETWEEN HOUSINGS: 82.7”
TABLE HEIGHT: 35.4"
TABLE WIDTH: 6.7"
STROKE: 9.84”
OPEN HEIGHT: 14.96”
THROAT DEPTH: 15.75”
SPEED:
- APPROACH: 7.874 IPS
- BENDING: 0.3937 IPS
- RETURN: 7.874 IPS
BACK-GAUGE TRAVEL: 33.5”
BACK-GAUGE REPEATABILITY: 0.0002"
R-AXIS TRAVEL: 7.8"
DAYLIGHT W/O PUNCH HOLDERS: 20.8"
MAIN MOTORS: 2 HIGH-EFFICIENCY SERVO MOTORS
OIL CAPACITY: 12.6 GAL
KVA: 9
POWER REQUIREMENT: 200/220 V, 3-PHASE, 50/60 HZ
APPROX. MACHINE WEIGHT: 16,000 LBS
APPROX. MACHINE DIMENSIONNS: 181”(L) × 79”(W) × 103”(H)
