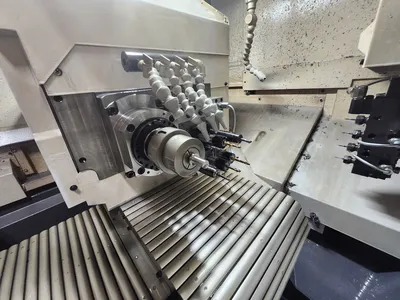

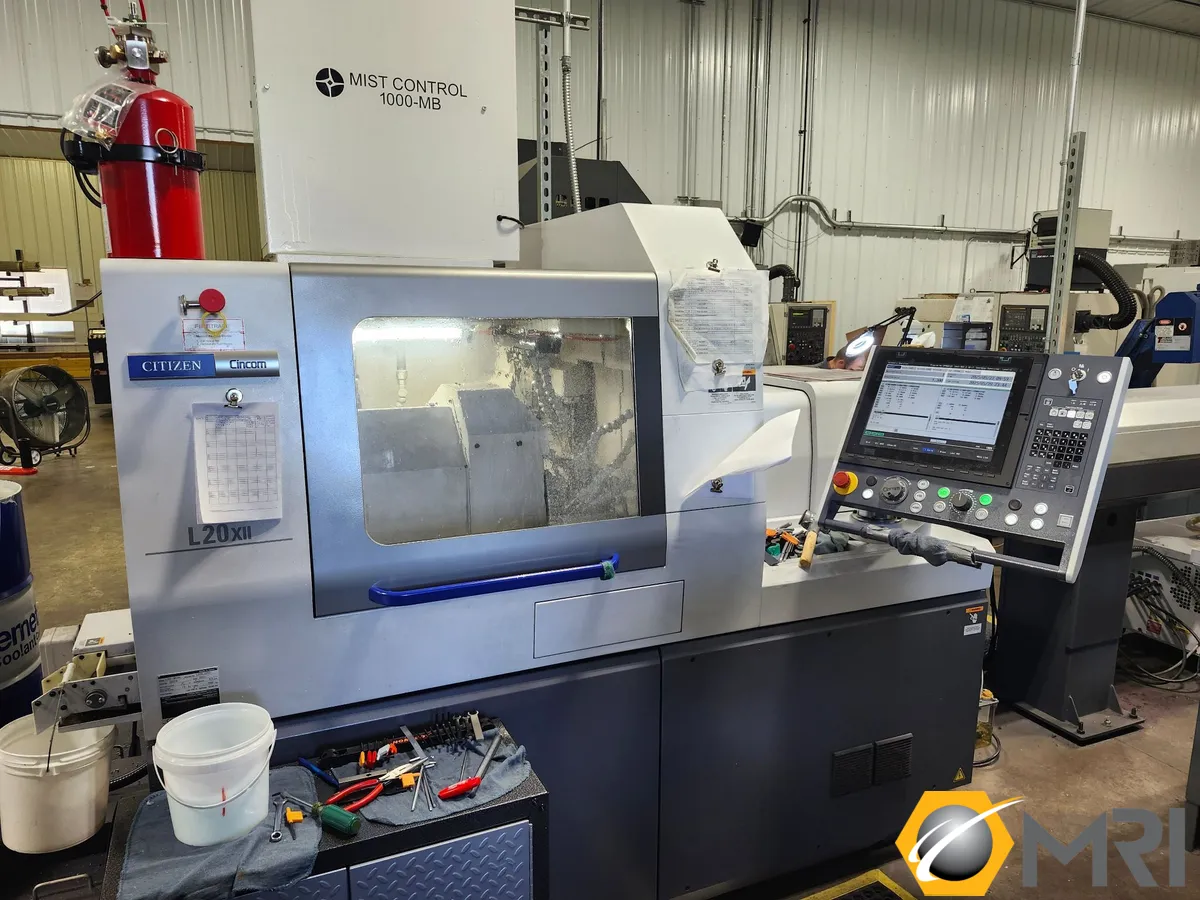

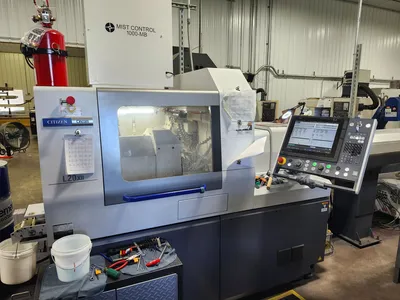

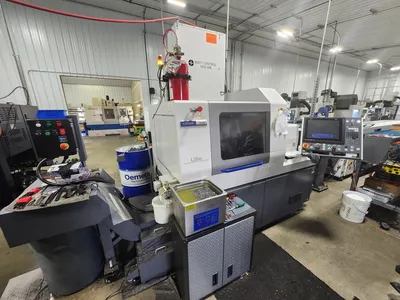

2023 Citizen L20EXII 3M12B5 SWISS LATHE | 7612347 MM
$289,900.00 USD
ConditionUsed
1 available
Ideal lathe for machining medical components such as implants and other parts up to 20mm in diameter. Furthermore, thanks to the automatic tool changer, complex machining can be completed in a single configuration, thus offering high precision with unbeatable cycles.
Work Conveyor
Chip Conveyor with Timer
3 Color Patrol Light

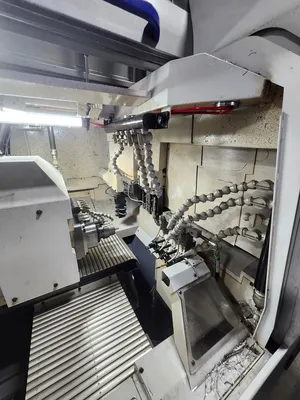

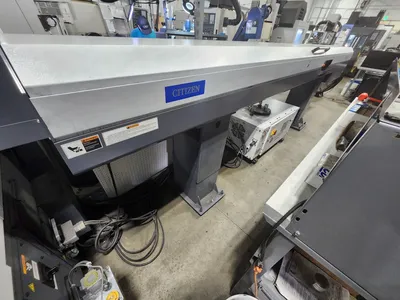

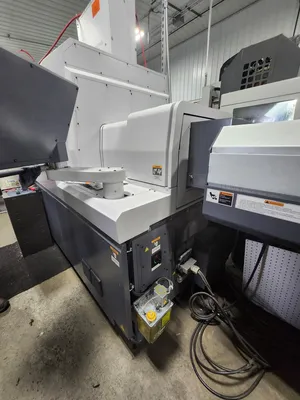

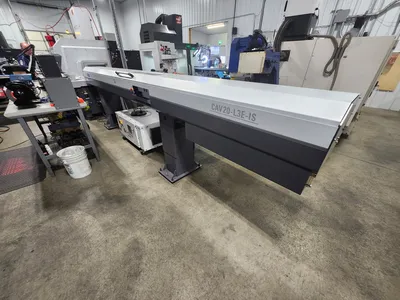

CAV Bar loader w/20MM Channel Set
High Pressure Cool Blaster 10 Line System
with Heat Exchanger
Mist Collector
GSC-1507 ER11 Cross Milling Spindle for 30's Tool Station

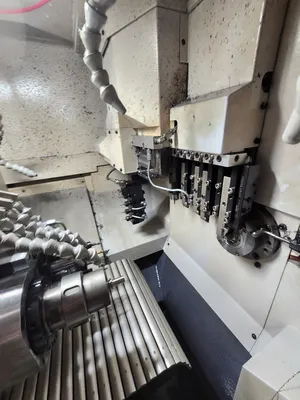

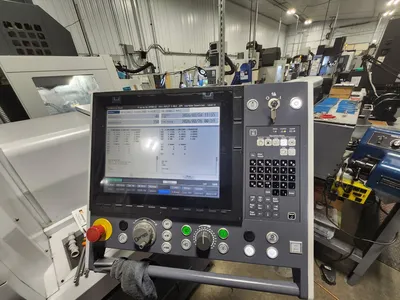

WIN-CNC Program Generator and Editing Tool
Fire trace Fire Suppression
GSC-1310 QTY 3
MSC-507 QTY 2
MEU-507 QTY 1

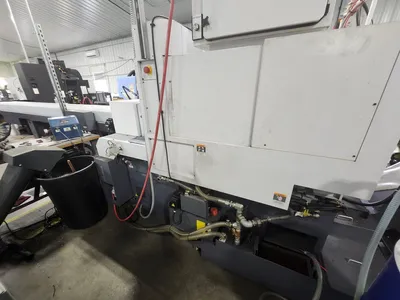

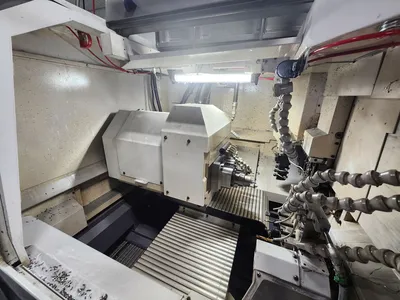

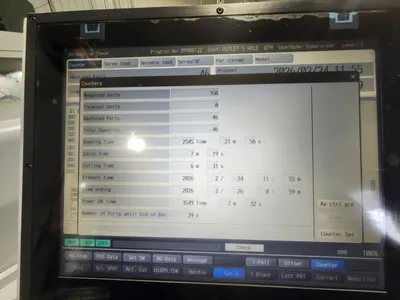

Running Time 2545
L20-3M12B5
Max. machining diameter 20 mm Dia. [1"]OP.
Max. machining length GB 20 mm Dia. spec. 200 mm per chucking
25 mm Dia. spec. 188 mm per chucking
GBL Max. 50 mm per chucking (GBL)
Max. front drilling diameter 10 mm Dia.
Max. front tapping diameter M8 (cutting tap)
Spindle through-hole diameter 26.4 mm Dia.
Spindle speed Max. 10,000 min-1
Max. chuck diameter of the back spindle 20 mm Dia. [1"]OP.
Max. taking-out length of the product 130 mm
Max. workpiece protrusion length from the back
spindle
40 mm
Max. drilling diameter in back machining 8 mm Dia.
Max. tapping diameter in back machining M8
Back spindle speed Max. 10,000 min-1
Rotary tools on the gang tool post
Maximum drilling diameter 8 mm Dia.
Max. tapping diameter M6 (cutting tap)
Gang rotary tool spindle speed Max. 9,000 min-1 (12,000rpm B axis)
Rotary tools on the opposite tool post*
Maximum drilling diameter Ø5 mm
Max. tapping diameter M4 (cutting tap)
Spindle speed Max. 7,500 min-1 (rated speed: 6,000 min-1)
Back rotary tool
Maximum drilling diameter Ø5 mm
Max. tapping diameter M4 (cutting tap)
Spindle speed Max. 7,500 min-1 (rated speed: 6,000 min-1)
Number of mountable tools 41
Turning tools on the gang tool post 6
Rotary tools on the gang tool post 21
Front drilling tools 6
Back drilling tools 8
Tool size
Turning tools ½"
Sleeve ¾" Dia.
Chuck / bushing
Front spindle collet chuck TF25 (TF30 [1"]OP.)
Back spindle collet chuck TF25 (TF30 [1"]OP.)
Rotary tool collet chuck ER11, ER16
Chuck for drill sleeve ER11, ER16
Guide bushing TD25NS (CD25 [1"]OP.)
Rapid traverse rate
X1, Y1, Z1, X2, Z2 axis 32 m/min
Y2 axis 8 m/min
Motor
For front spindle drive 2.2/3.7/5.5 kW (continuous/15
minute/10%ED ratings)
For back spindle drive 1.5/2.2/3.7 kW
(continuous/40%ED/10%ED ratings)
For front rotary tool drive 0.75 kW
For back rotary tool drive 0.75 kW
For coolant pump 0.4 kW
Rated power consumption 8.8 KVA
Total load current 37 A
Main breaker capacity 60 A
Supply voltage AC 200V ±10%
Pneumatic device
Required pressure 0.5 MPa
Required flow rate 52/65/197 NL/min (Power
ON/Normal/With air blow)
Machine body dimensions W 2,222×D1,265×H1,835 mm
Center height 1,050 mm
Machine weight 2,680 kg
Buyer to confirm all specs.
