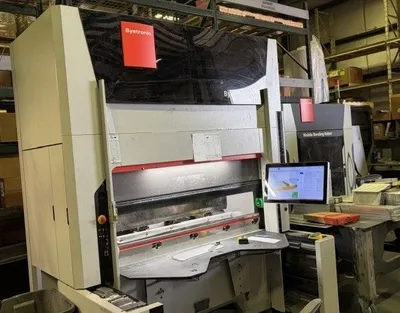

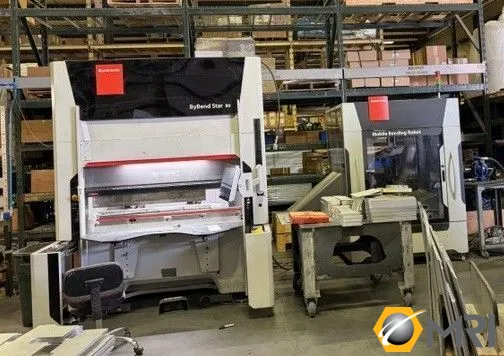

2023 BYSTRONIC BYBEND STAR 80/1530 PRESS BRAKE AND MOBILE BENDING ROBOT, NEW: 2023
Bystronic has done pioneering work with the ByBend Star 80/1530. The ByBend Star 40 and 80 are the first bending machines for mobile use. The ByBend Star 40 and 80 can be moved effortlessly and
operational in less than 5 minutes. In keeping with the "Plug and Bend" principle – simply plug it in and start bending. They are quickly ready for operation in the tightest of spaces and ensure the highest bending quality at all times. If floor space is limited, The Bybend Star needs less than 6 square meters of space to operate.
With the ByBend Star 80/1530 you can bend small and medium-sized parts more economically than ever before. You'll benefit from the mobile use of the bending machines to the convenient handling. The compact chassis enables bending speeds of up to 0.98 inch/ per second.

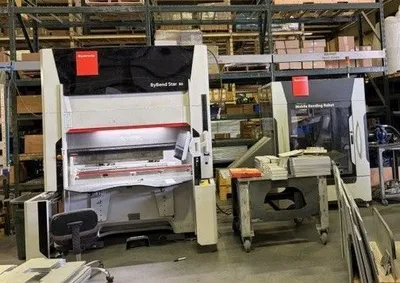

With the addition of Bystronic's Mobile Bending Robot, the ByBend Star 80/1530 quickly becomes an automated, compact bending cell that can be utilized in the tightest of spaces.

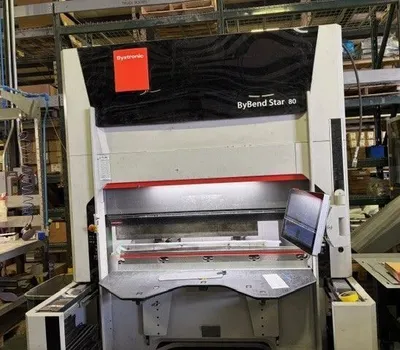

BYBEND STAR 80/1530 PRESS BRAKE

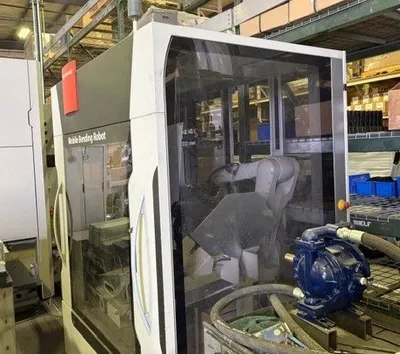

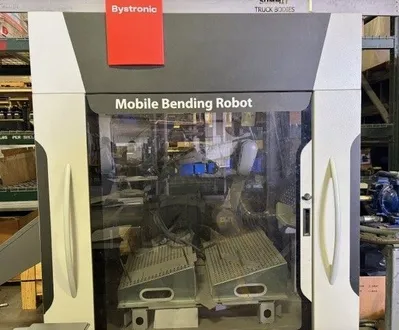

BYSTRONIC MOBILE BENDING ROBOT

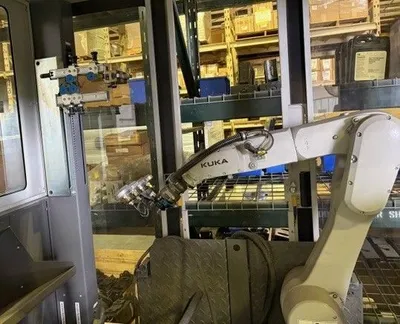

KUKA ROBOT
BYVISION BENDING CONTROL

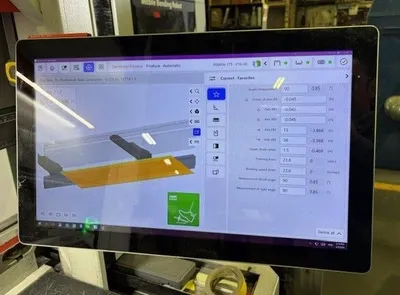

22" FULL HD TOUCH SCREEN DISPLAY

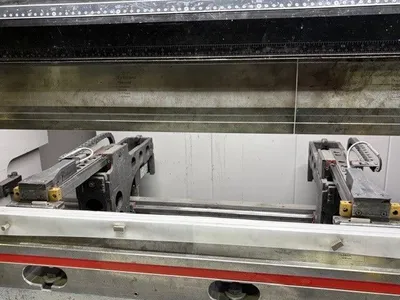

6-AXIS PROGRAMMABLE BACK-GAUGE
ERGO FOOT SWITCH
SILENT DYNAMIC DRIVE SYSTEM WITH INTERGRATED ENERGY SAVER
DXF IMPORT
OPC INTERFACE BENDING
MATERIAL CURVE GENERATOR
AUTOMATIC REACTIVE COMPENSATION SYSTEM
AUTOMATIC TOOL PROTECTION
FAST BEND G2 SAFETY SYSTEM WITH MANUAL HEIGHT ADJUSTMENT

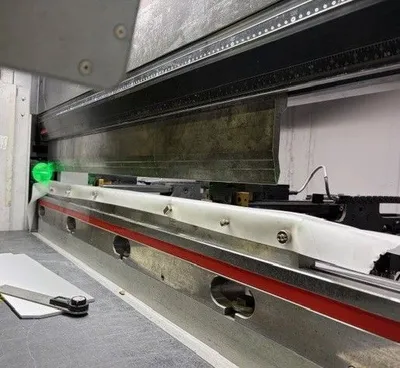

LED HIGH PERFORMANCE ILLUMINATION OF FRONT AND REAR THE WORKING AREA
LED ILLUMINATION FOR MOBILE BENDING ROBOT
PART FEEDING
ROBOT MOVEMENT SYCHRONIZATION UNIT
RF-A PRO PRODUCTIVE CLAMPING PACK
CUSTOM GRIPPER
ERGO ARM SUPPORT

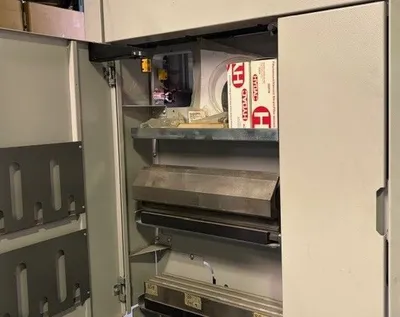

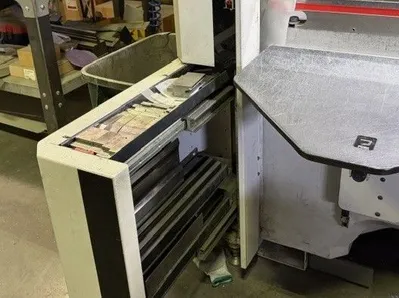

INTERGRATED ERGO TOOL AND EQUIPMENT CABINETS/SHELVES

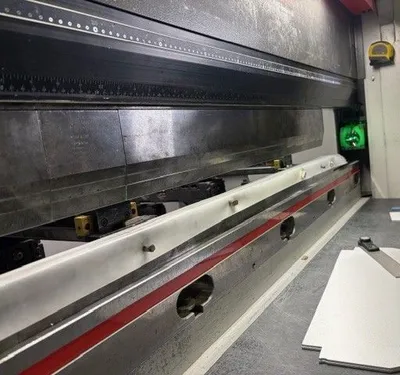

OPTICAL BEND GUIDING SYSTEM UPPER TOOL CLAMPING
OPERATING DATA:
- HOURS COUNTER: 9,890
- CYCLE COUNTER: 561,108
RUN TIME:
- PLC: 223 HOURS
- ROBOT: 442 HOURS
TONNAGE: 88
MAX. BENDING LENGTH: 60.2
STROKE: 7.9"
OPEN HEIGHT: 20.3"
DISTANCE BETWEEN SIDE FRAMES: 61.8"
TABLE WIDTH: 2.4"
MAX. BACK-GAUGE RANGE X-AXIS: 19.7"
TRAVELS:
- X-AXIS: 11.8"
- R-AXIS: 3.9"
- Z-AXIS: 57.3"
SPEEDS:
- Z-AXIS: 4,724 IPM
- X-AXIS: 3,543 IPM
- R-AXIS: 1,181 IPM
- MAX. APPROACH: 591 IPM
- MAX. BENDING: 59 IPM
Y-AXIS ACCURACY: 0.00016"
OIL CAPACITY: 53 GAL
MAIN MOTOR: 15 HP
AMBIENT AIR TEMPERATURE: 5° - 40° CELSIUS
VOLTAGE: 400/480 V, 50/60 Hz, 3 Ph
APPROX. DIMENSIONS: 80"(L) x 70"(W) x 102"(H)
APPROX. SHIPPING WEIGHT: 14,330 LBS
