2016 TRUMPF TRULASER 3040 FIBER | RM 7612351
$189,500.00 USD
ConditionUsed
1 available

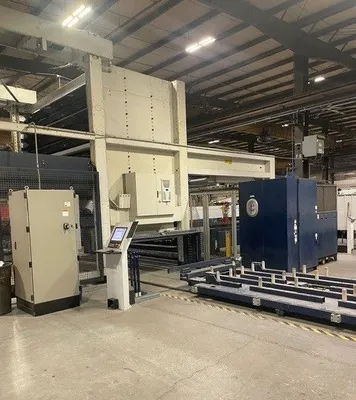

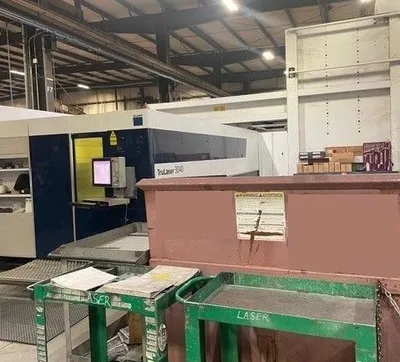

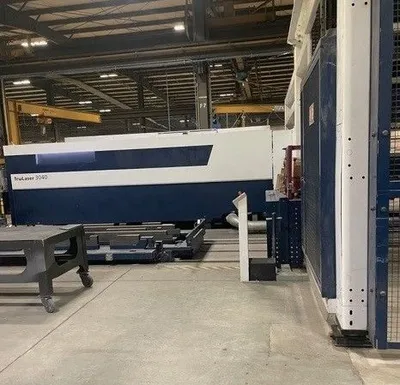

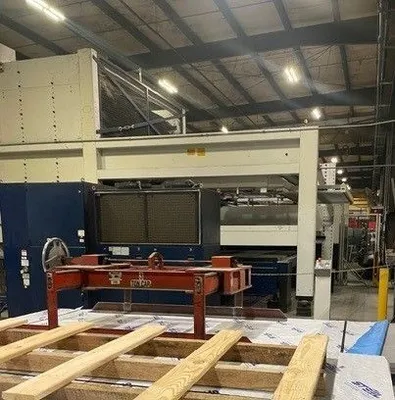

TRUMPF TRULASER 3040 FIBER
YEAR: 2016
4,000 WATTS
6.5' x 13' TABLE
SIEMENS SINUMERIK 840D CONTROL
TRUMPF TRUDISK 4001 FIBER ENGINE
BRIGHTLINE
AUTOMATIC NOZZLE CHANGER
DROP AND CUT PACKAGE
RIGHT HAND INSTALL
LIFT MASTER COMPACT LOAD/UNLOAD SYSTEM
TRUSTORE MATERIAL STORAGE TOWER
MATERIAL CART
CHILLER
DUST COLLECTOR
AUTO PALLET SHUTTLE
AVAILABLE WITH OR WITHOUT AUTOMATION
MAX. LASER OUTPUT: 4,000 WATTS
LASER TYPE: FIBER
MOTION SYSTEM: FLYING OPTIC
WORKING RANGE:
- X-AXIS: 157.48"
- Y-AXIS: 78.74"
MAX. SIMULTANEOUS SPEED: 6,693 IPM
MAX. WORKPIECE WEIGHT:
- STANDARD PALLET: 4,409 LBS
- HEAVY DUTY PALLET: 7,275 LBS
MAX. MATERIAL THICKNESS:
- MILD STEEL: 0.8661"
- MILD STEEL WITH CUTTING PACKAGE: 0.9843"
- STAINLESS STEEL: 0.7874"
- STAINLESS STEEL WITH CUTING PACKAGE: 1.378"
- ALUMINUM: 0.7874"
- COPPER: 0.315"
- BRASS: 0.315"
MACHINE DIMENSIONS: 441"(L) x 251"(W) x 86.6"(H)
MACHINE WEIGHT: 31,526 LBS
