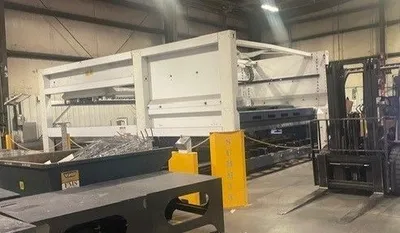

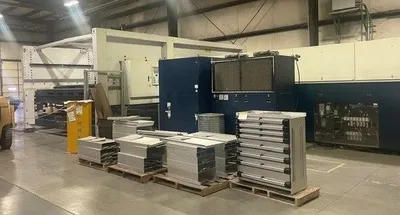

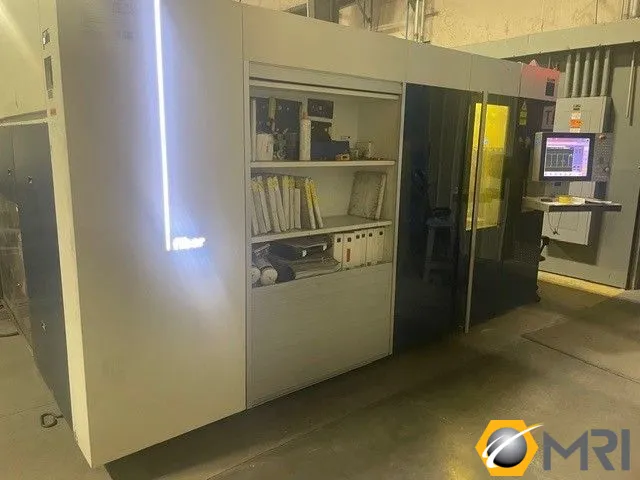

2016 TRUMPF TRULASER 3040 FIBER LASER | RM 7612352

2016 TRUMPF TRULASER 3040 FIBER LASER | RM 7612352

Sell Your TRUMPF TRULASER 3040 FIBER
877-568-2121
inquiries@machineryresources.com
ConditionUsed
1 available
Sell Your TRUMPF TRULASER 3040 FIBER

Overview

Type:
LASERS
Manufacturer:
TRUMPF
Model:
TRULASER 3040 FIBER
Year:
2016
Stock #:
7612352
Status:
For Sale

Description

TRUMPF TRULASER 3040 FIBER LASER, NEW: 2016
3,000 WATTS
6.5' x 13' TABLE

SIEMENS SINUMERIK 840D CONTROL
TRUMPF TRUDISK 3001 FIBER ENGINE
CHILLER
DUST COLLECTOR
AUTO PALLET SHUTTLE
LIFTMASTER COMPACT LOAD/UNLOAD

Sheet-W78.74"2,000 mm
Sheet-L157"3,987.8 mm
Wattage3000 w3,000 W

MAX. LASER OUTPUT: 3,000 WATTS
LASER TYPE: FIBER
MOTION SYSTEM: FLYING OPTIC
WORKING RANGE:
- X-AXIS: 157.48"
- Y-AXIS: 78.74"
MAX. SIMULTANEOUS SPEED: 6,693 IPM
MAX. WORKPIECE WEIGHT:
- STANDARD PALLET: 4,409 LBS
- HEAVY DUTY PALLET: 7,275 LBS
MAX. MATERIAL THICKNESS: 0.75" MS
MACHINE DIMENSIONS: 441"(L) x 251"(W) x 86.6"(H)
MACHINE WEIGHT: 31,526 LBS

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
