2014 CINCINNATI CL-440 CNC LASER | AB 7612353
ConditionUsed
1 available

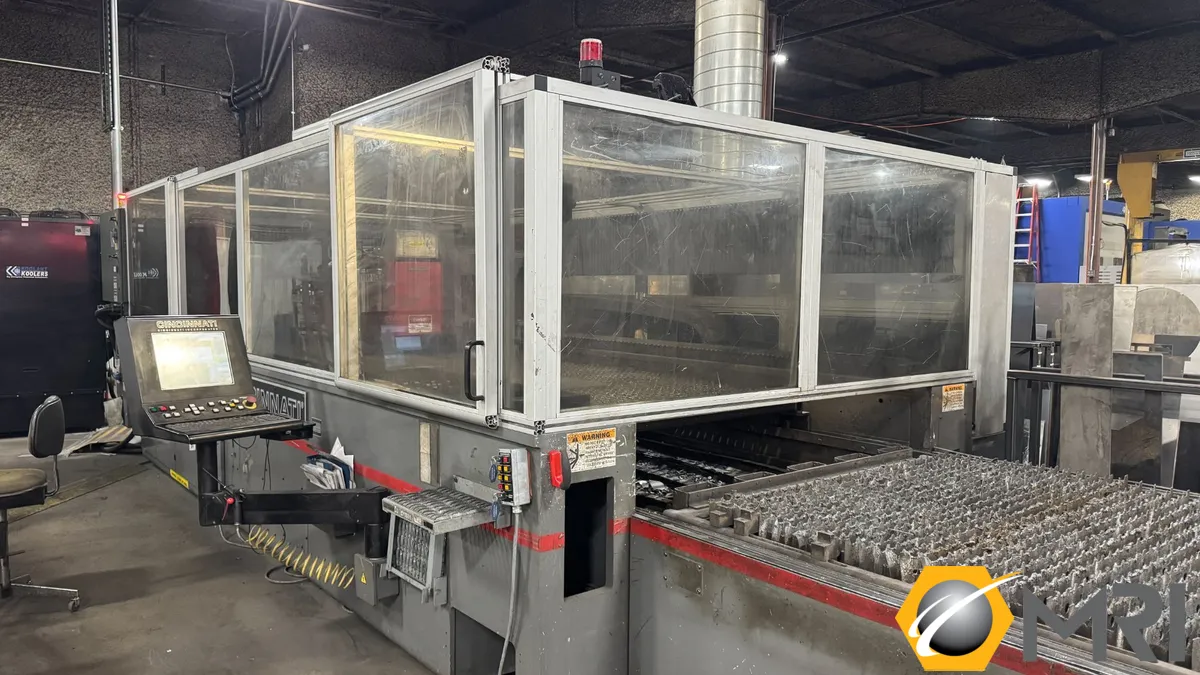

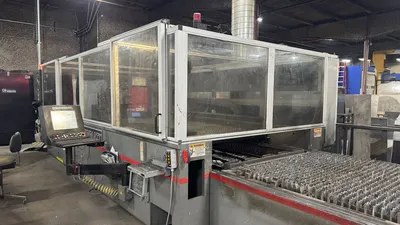

CINCINNATI CL-440 CNC LASER, NEW: 2014

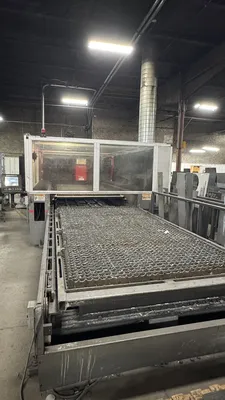

5' x 10' TABLE
TYPE: CO2
PRC 4,000-WATT RESONATOR
CINCINNATI PC BASED TOUCH SCREEN CNC CONTROL
AUTO FOCUS HEAD
PRC 4,000-WATT RESONATOR
AUTO PALLET SHUTTLE

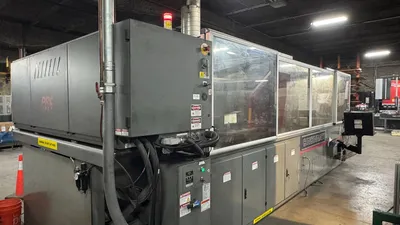

CHILLER
DUST COLLECTOR
NOTES FROM THE SELLER:
MACHINE CURRENTLY RUNNING AT 3.2KW. ONE TURBO LEAKING AND NEEDS TO BE REPLACED TO CUT AT 4KW. APPROX. COST TO REPAIR. $25,000. AS PER OWNER:
CURRENTLY CUTTING 1” MS
MAX. LASER OUTPUT: 4,000 WATTS
TYPE: CO2
MOTION SYSTEM: FLYING OPTIC
MAX. SHEET SIZE: 60" x 120"
TRAVELS:
- X-AXIS: 61"
- Y-AXIS: 121"
WORKLOAD CAPACITY: 2,292 LBS
MAX CUTTING CAPACITY (MILD STEEL): 1"
MAX CUTTING CAPACITY (STAINLESS): 5/8"
MAX CUTTING CAPACITY (ALUMINUM): 1/2"
ABSOLUTE POSITIONING: +/- 0.001"
REPEATABILITY (X & Y): .001"
DRIVE TYPE: LINEAR
RAPID TRAVERSE RATE:
- Y-AXIS: 8,500 IPM
- X-AXIS: 8,500 IPM
- SIMULTANEOUS: 12,020 IPM
- Z-AXIS: 1,700 IPM
ELECTRICAL: 460 ~ 3 PHASE ~ 60Hz
APPROX. DIMENSIONS: 395"(L) x 183"(W) x 92"(H)
APPROX. WEIGHT: 35,500 LBS
