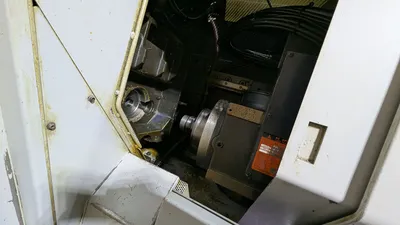

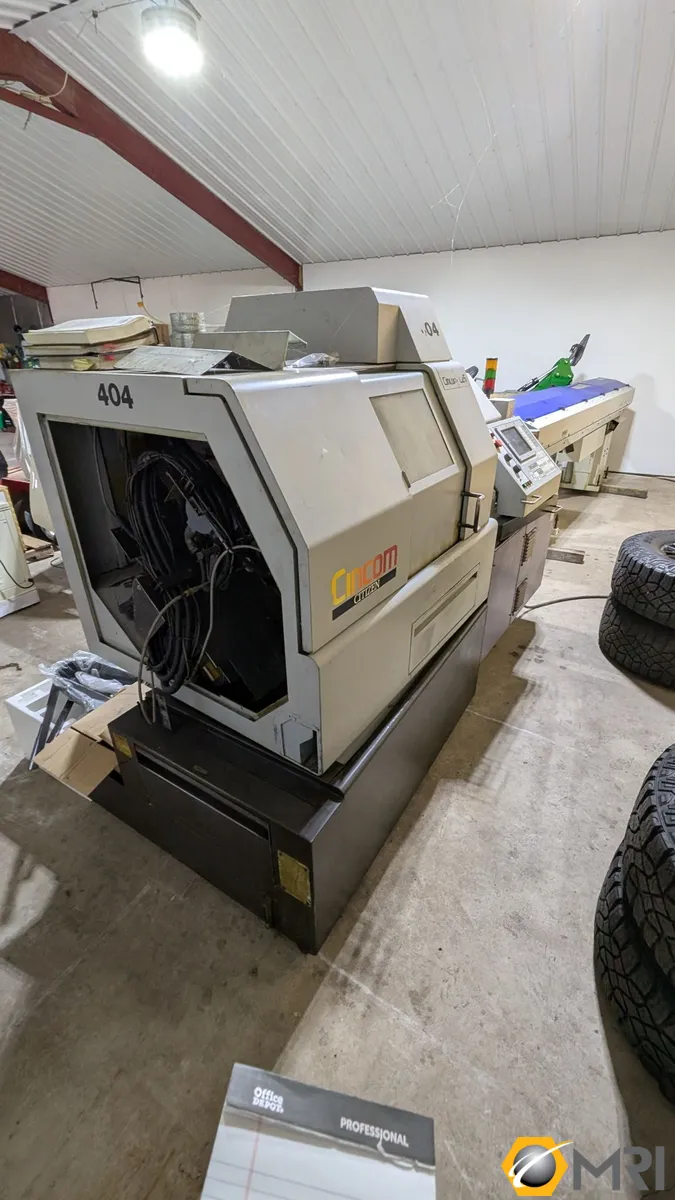

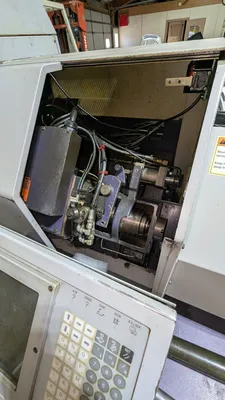

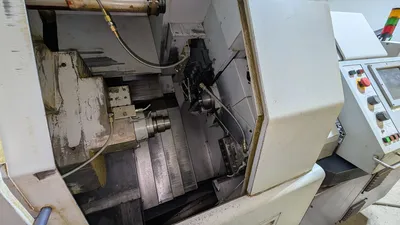

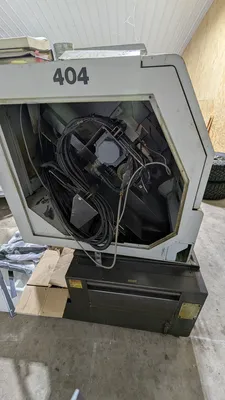

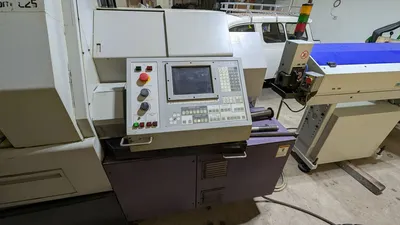

1999 CITIZEN L25 CNC Swiss Lathe in used condition. Equipped with Iemca MINI BOSS 325 CNC barfeed. Features 1" capacity, 7.5 hp, up to 8000 RPM, C-axis indexing. Ideal for precision work with 17 tool mounts and 11 KVA power consumption.

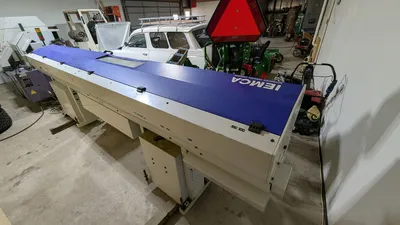

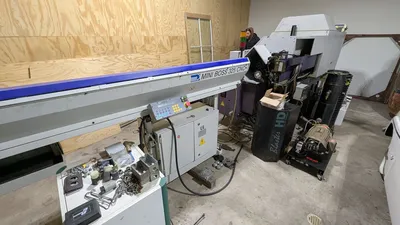

BARFEED:
Model: Iemca MINI BOSS 325 CNC
Cool Blast High Pressure
Maximum Stock diameter: 1"
Maximum length per chucking: 10"
Maximum drilling diameter: 16 collet up to .394"
Main spindle speed: 200 - 8000 rpm
Pick-off spindle speed: 200 - 6000 rpm
Pick-off spindle motor: 3 hp
Main spindle index: .001 deg (full c-axis)
Sub-spindle index: 15 degrees
Rotary tool spindle speed: 200 - 5000 rpm
Rotary tool motor: .5 hp
Number of tools to be mounted: 17
Turning tools: 5
Frontwork id tools: 3
Backwork id tools: 5
Live tools: 4
Tool size, square shank: 5/8"
ID sleeve: 1"
Power consumption: 11 kva
