1998 CITIZEN L20 SWISS LATHE | AB 7612356
ConditionUsed
1 available

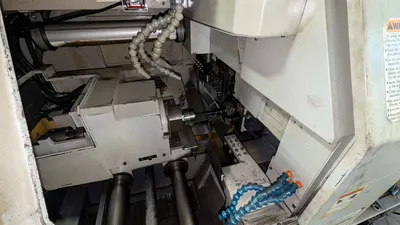

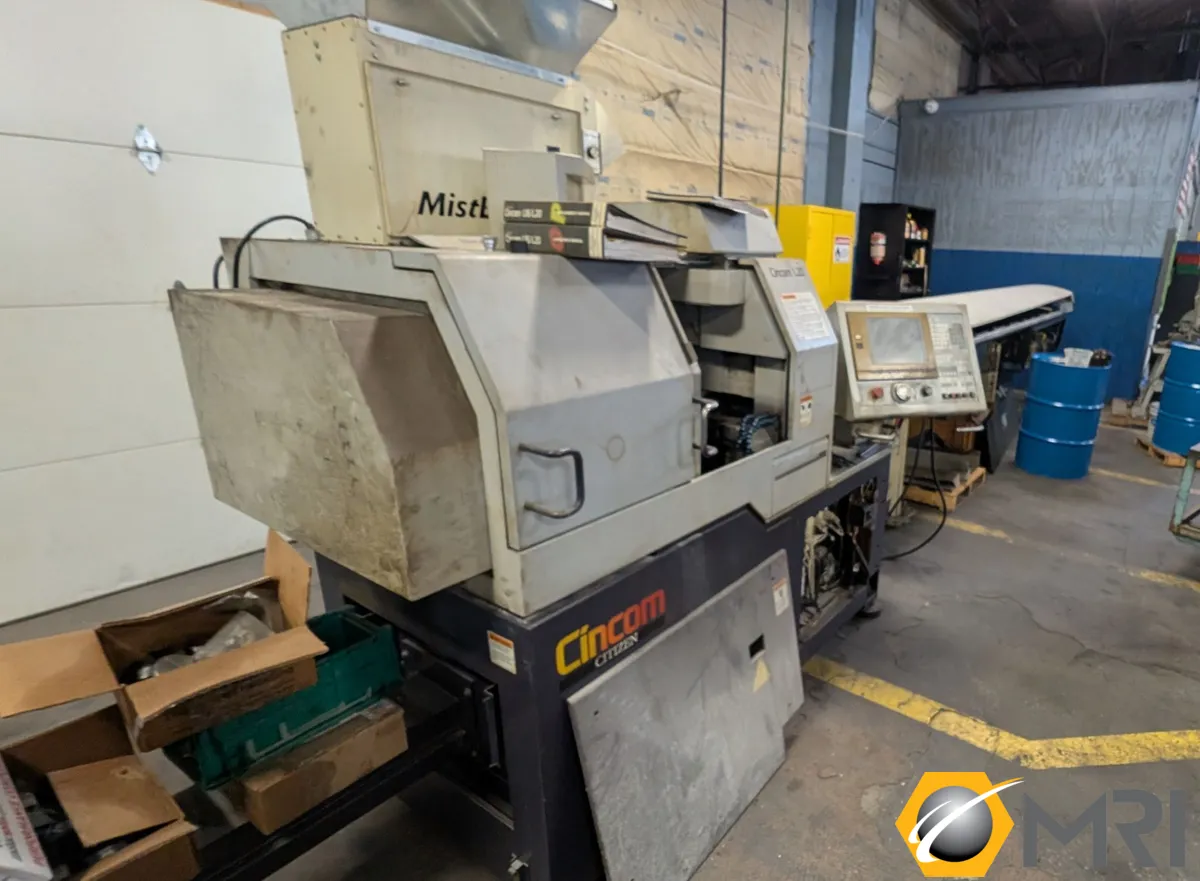

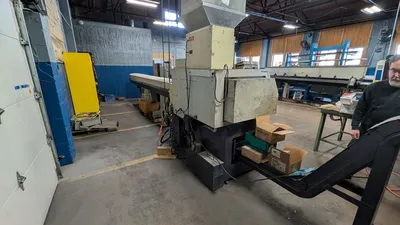

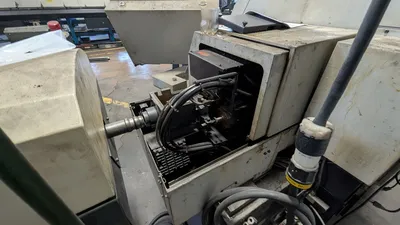

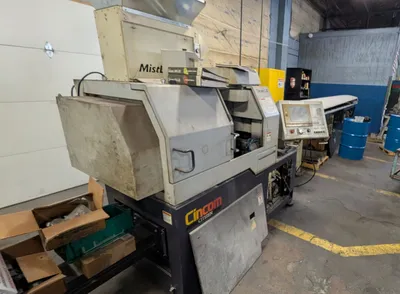

1998 CITIZEN L20 CNC Swiss Lathe, 5-axis, 10,000 RPM, 5 HP, 0.79" capacity. Max drilling up to 0.394". Comes with LNS bar loader, chip conveyor, and mist collector. Rotary spindle speed 200-5000 RPM. Excellent for precision machining.
PAIRED WITH LNS BAR LOADER
CHIP CONVEYOR
MIST COLLECTOR
Max. Machining Diameter: 3/4"
Max. Machining Length per one chuck: 8.1"
Max. Drilling Diameter: up to .394"
Spindle Speed: 200 - 10000 rpm
Back-work:
Max. Chucking Dia. of Pick-off Spindle: .812"
Pick-off Spindle Speed: 200 - 8000 rpm
Pick-off Spindle Motor: 2 HP
Min. Spindle Index: 1 Deg
Rotary Tool:
Rotary Spindle Speed: 200 - 5000 rpm
Rotary Tool Motor: .5 hp
Number of Tools Mounted: 16
Turning / Front ID / Back ID / Live Tools: 5 / 3 / 3 / 4
Power Consumption: 6 KVA
Voltage: 208
