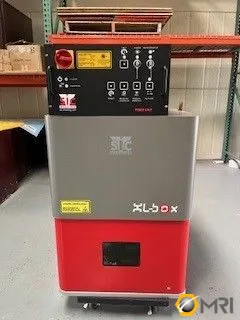

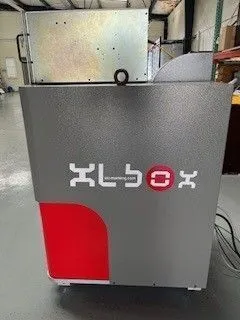

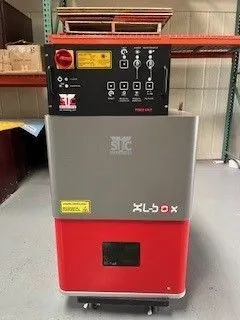

SIC MARKING XL BOX LASER MARKING STATION | AB 7612361

Mechanical-
Marking window: 60 x 60*mm – 100 x 100 mm – 170 x 170 mm – 220 x 220*mm – 300 x 300*mm
Overall dimensions (L x D x H): 655 x 755 x 995 mm
Work zone: 570 x 564 mm
Dimensions of parts marked: Maximum height 370 mm, Maximum length 570 mm
Electronic-
Operating procedure: Pulsed (variable frequency)
Wavelength: 1064 nm
Optical fiber length: 3 m
Mean power: 20W
Focusing: Integral laser pointer
Cooling: Air cooled only
Control software-
Software: SIC Laser PC
Settings: Several stylus settings (speed, power, frequency, etc.)
Font options : True Type, 1D barcode, 2D Datamatrix
Imported files: Images (.bmp, .jpg) and vector files (.plt, .dxf, .ai)
Marking: Cylindrical parts
Database function: Link with external files (.txt, .xls)
Input / Output: Integral
Utilization: Create and edit marking files (drawing, text, barcode, Datamatrix, etc.)
