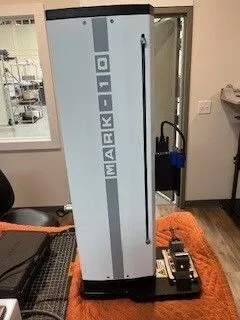

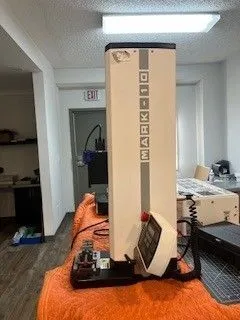

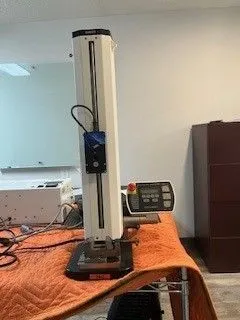

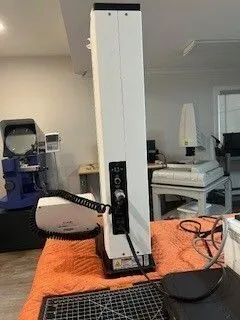

MARK-10 ESM303 MEASURMENT TENSION/COMPRESSION TEST STAND | AB 7612366

Load capacity 300 lbF (1.5 kN) @ up to 24 in/min (610 mm/min)
200 lbF (1 kN) @ >24 in/min (610 mm/min)
Maximum travel distance 18.0 in (457 mm)
Speed range Standard: 0.5 - 13 in/min (13 - 330 mm/min)
Speed setting accuracy ±0.2%
Speed variation with load ±0% (stepper motor driven)
Travel accuracy ±0.002 in per 10 in (±0.05 mm per 250 mm)
Travel resolution 0.001 in / 0.02 mm
Limit switch repeatability 0.001 in (0.03 mm)
Operating Temperature Range 40 - 100°F, max. 96% humidity, non-condensating
Power Universal input 80-240 VAC, 50/60 Hz
Weight 56.5 lb (25.6 kg)
