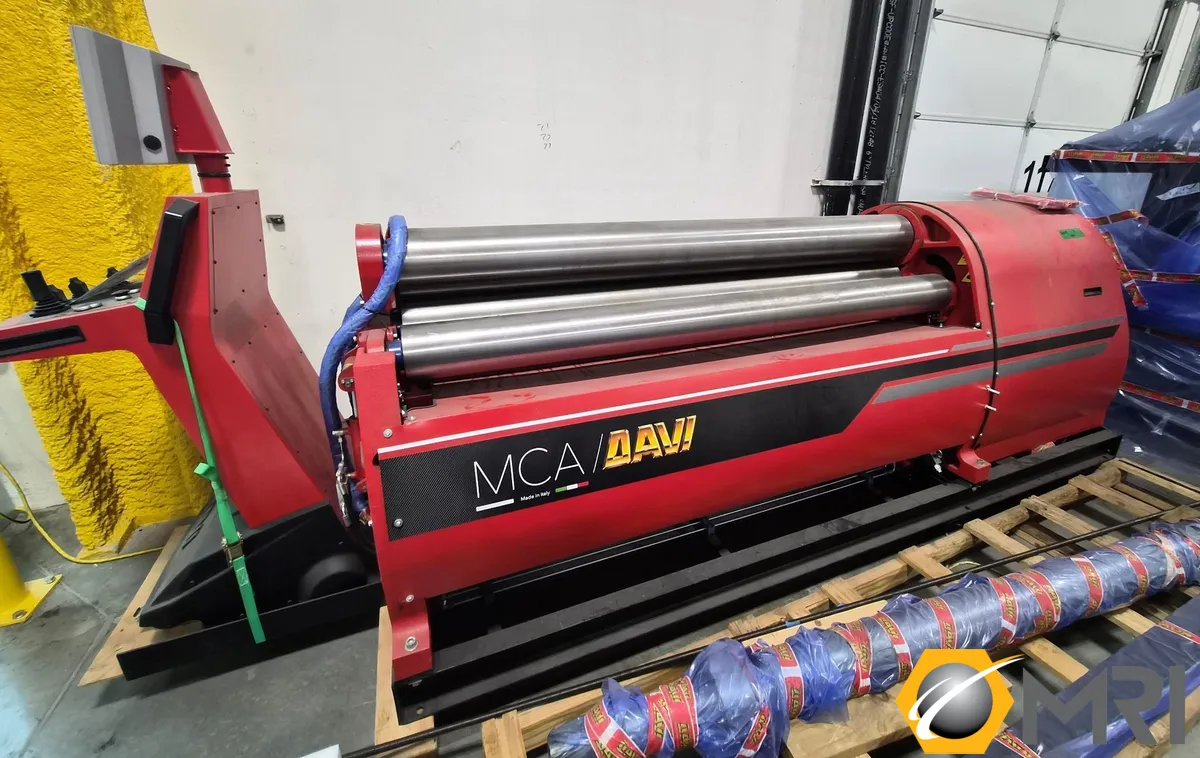

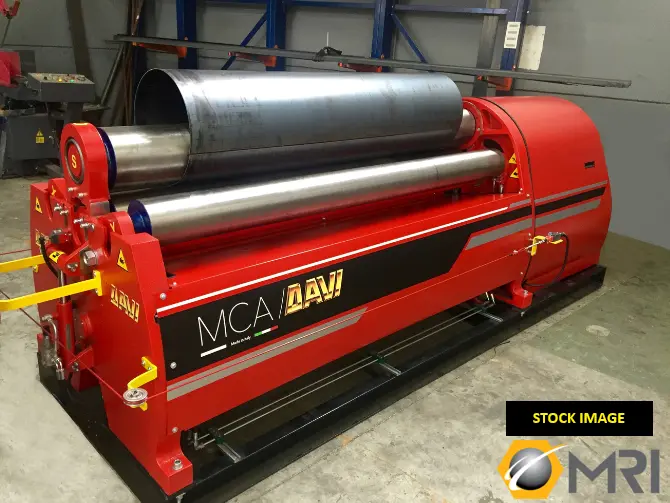

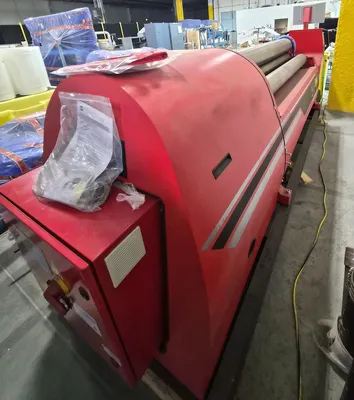

DAVI MCA 2020 4-ROLL CNC PLATE ROLL, NEW: 2022
ConditionUsed
1 available
MANUFACTURED IN 2022. NEVER INSTALLED!
DIGITAL, SERVO-TRONIC SYNCHRONIZED, FULL HYDRAULC, 6' x 7/16" FOUR ROLL CNC PLATE ROLL. MACHINE CAPABLE TO PREBEND, ROLL CYLINDERS AND CONES. EQUIPPED WITH 13' FEED SYSTEM.

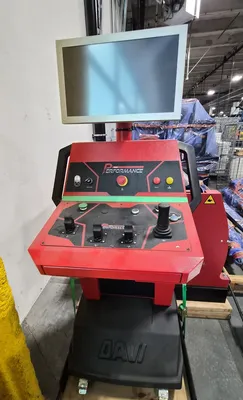

DAVI iROLL PERFORMANCE CNC CONTROL

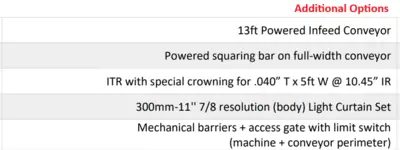

13' POWERED INFEED CONVEYOR
POWERED SQUARING BAR ON FULL WIDTH OF CONVEYOR
ITR WITH SPECIAL CROWING FOR 0.040" T x 5' W @ 10.45" IR
7/8" RESOLUTION (BODY) LIGHT CURTAIN SET
MECHANICAL BARRIERS + ACCESS GATE WITH LIMIT SWITCH (MACHINE + CONVEYOR PERIMETER)
PLANETARY GUIDE TECHNOLOGY
SERVO-TRONIC ROLLS PARALLELISM
STRESS-LASS TRANSMISION DRIVE SYSTEM
ROLL-BY-WIRE DIGITAL TECHNOLOGY
PERMANENT LUBRICATION TECHNOLOGY
HARDENED ROLLS
CONE ROLLING PACKAGE
DRIVEN CLAMPING ROLLS
ROLLS CROWNING
ROLLS GUIDING
HYDRAULIC PLATE CLAMPING
MULITPLE OVERLOAD SAFETY SYSTEM
MANUFACTURED 8/2022

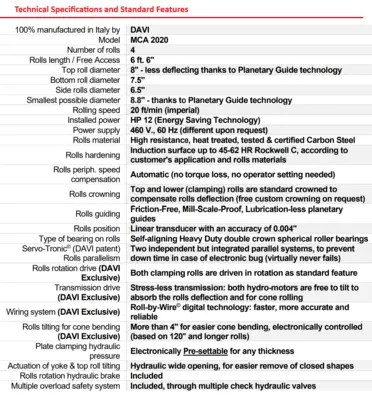

NUMBER OF ROLLS: 4
ROLLS LENGTH: 78"
MAX. ROLLING LENGTH: 72"
MAX. ROLLING THICKNESS: 7/16"
MAX. PREBEND THICKNESS: 5/16"
INTERNAL DIAMTER: 40"
YEILD: 40,000 PSI
UTS: 65,000 PSI
TOP ROLL DIAMETER: 8"
BOTTOM ROLL DIAMETER: 7.5"
SIDE ROLLS DIAMETER: 6.5"
SMALLEST POSSIBLE DIAMETER: 8.8"
MAX. ROLLING SPEED: 20 FPM
INSTALLED POWER: 12 HP
ROLLS POSITIONING ACCURACY: (=/-) 0.004"
ELECTRICAL" 460 V, 60 Hz, 3 PHASE
APPOX. WEIGHT: 11,000 LBS
