AMADA HFE M2 1704 CNC PRESS BRAKE, NEW: 2012
ConditionUsed
1 available

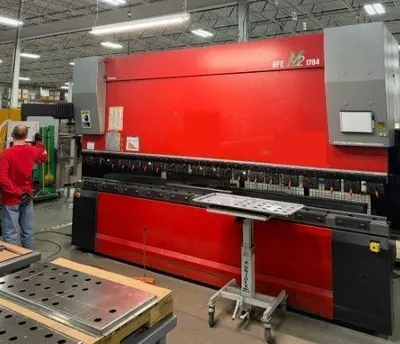

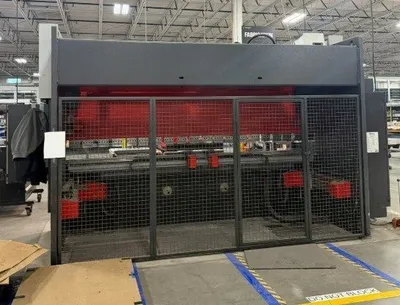

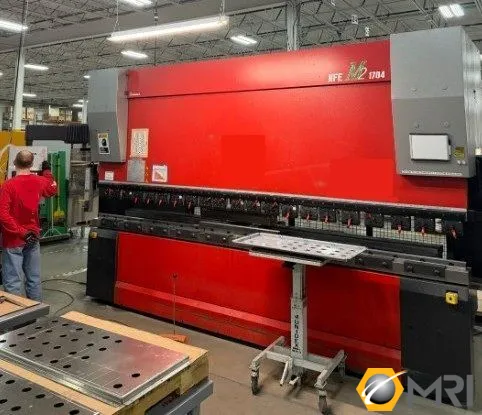

AMADA HFE M2 1704 CNC PRESS BRAKE, NEW: 2012
187 TONS, 157" MAX. BENDING LENGTH, 5-AXIS PROGRAMMABLE BACK-GAUGE
Built on the solid foundation of the HFE series, Amada’s HFE M2 press brake models include additional production-enhancing features and an innovative touch-screen AB PAD interface. Overall design improvements result in an eco-friendly series that provide maximum performance and ease of use. Equipped with an energy saving drive — the inverter on the HFE M2 series reflects Amada’s ongoing
commitment to environmental protection. The new drive system uses a frequency inverter that controls the motor pump and ensures efficiency by operating only when necessary. The system continually monitors and self-regulates bending requirements — this translates to using 20% less energy, a significant reduction
in maintenance requirements, less oil consumption, lower noise levels, and an increase in reliability.
AB PAD NC TOUCH SCREEN CONTROL
5-AXIS PROGRAMMBLE BACK-GAUGE (X1-X2, R, Z1-Z2)
FEISSLER ELEKTRONIK SAFETY GUARD
QUICK RELEASE TOOL CLAMPS
FOOT SWITCH
MAX. TONNAGE: 191
MIN. TONNAGE: 23.6
WORKING LENGTH: 166"
TABLE WIDTH: 7.09"
WORKING HEIGHT: 37.8"
OPEN HEIGHT: 18.5"
STROKE LENGTH: 7.87"
THROAT DEPTH: 16.5"
DISTANCE BETWEEN FRAMES: 148"
SPEEDS:
- MAX. APPROACH: 3.94 IPS
- MAX. BENDING: 0.39 IPS
- MAX. RETURN: 3.94 IPS
OIL CAPACITY: 19.8 GALLONS
POWER CONSUMPTION: 18 KVA
APPROX. DIMENSIONS: 217.7"(L) x 103.3"(W) x 113.8"(H)
APPROX. WEIGHT: 30,645 LBS
