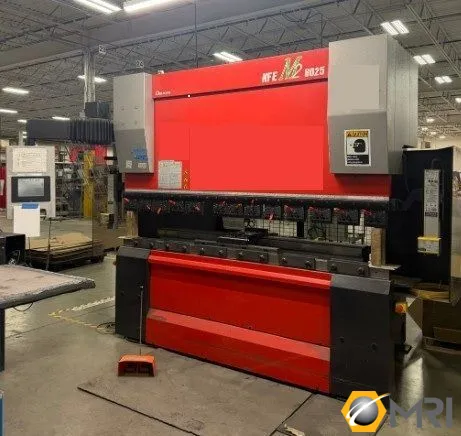

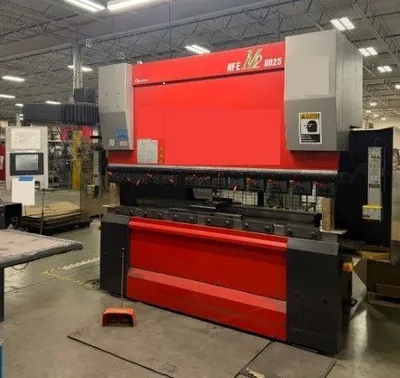

AMADA HFE M2 8025 CNC PRESS BRAKE, NEW: 2012 | RM 7612384
ConditionUsed
1 available
The Amada HFE-M2-8025 Features: AMADA AB Pad Control, 88-ton bending capacity, 101" overall bending length, 8 programmable axes, Y1-Y2 ram, 5-axis programmable back-gauge, electronic foot pedal, and quick clamp punch holders.
Built on the solid foundation of the HFE series, Amada’s HFE M2 press brake models include additional production-enhancing features and an innovative touch-screen AB PAD interface. Overall design improvements result in an eco-friendly series that provide maximum performance and ease of use. Equipped with an energy saving drive — the inverter on the HFE M2 series reflects Amada’s ongoing
commitment to environmental protection. The new drive system uses a frequency inverter that controls the motor pump and ensures efficiency by operating only when necessary. The system continually monitors and self-regulates bending requirements — this translates to using 20% less energy, a significant reduction
in maintenance requirements, less oil consumption, lower noise levels, and an increase in reliability.
AB PAD NC TOUCH SCREEN CONTROL
5-AXIS PROGRAMMBLE BACK-GAUGE (X1-X2, R, Z1-Z2)

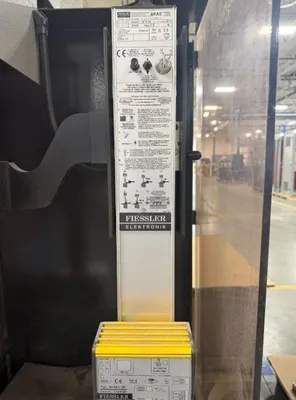

FEISSLER ELEKTRONIK SAFETY GUARD
QUICK RELEASE TOOL CLAMPS
FOOT SWITCH
MAX. TONNAGE: 90
MIN. TONNAGE: 7.9
WORKING LENGTH: 101"
TABLE WIDTH: 2.36"
WORKING HEIGHT: 37.8"
OPEN HEIGHT: 18.5"
STROKE LENGTH: 7.87"
THROAT DEPTH: 16.5"
DISTANCE BETWEEN FRAMES: 82.7"
SPEEDS:
- MAX. APPROACH: 3.94 IPS
- MAX. BENDING: 0.39 IPS
- MAX. RETURN: 3.94 IPS
OIL CAPACITY: 19.8 GALLONS
POWER CONSUMPTION: 10.5 KVA
APPROX. DIMENSIONS: 149.6"(L) x 96.3"(W) x 100"(H)
APPROX. WEIGHT: 12,345 LBS
