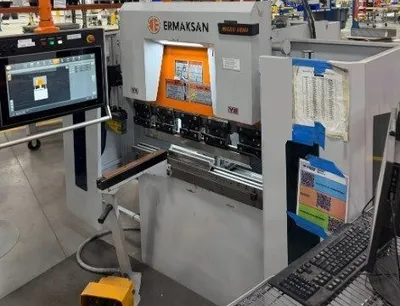

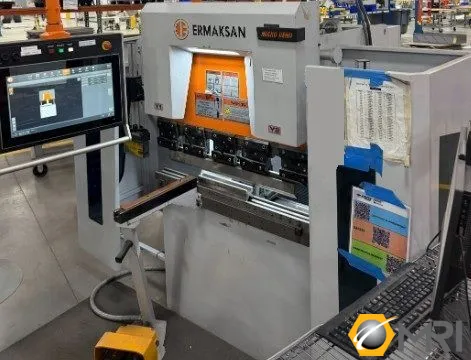

ERMAKSAN MICRO BEND 3.3X44 CNC PRESS BRAKE, NEW: 2022

ERMAKSAN MICRO BEND 3.3X44 CNC PRESS BRAKE, NEW: 2022

Sell Your ERMAKSAN MICRO-BEND 3.3 X 44
877-568-2121
inquiries@machineryresources.com
ConditionUsed
1 available
Sell Your ERMAKSAN MICRO-BEND 3.3 X 44

Overview

Type:
BRAKES, PRESS, N/C & CNC
Manufacturer:
ERMAKSAN
Model:
MICRO-BEND 3.3 X 44
Year:
2022
Stock #:
7612385
Status:
For Sale

Description

ERMAKSAN MICRO BEND 3.3X44 CNC PRESS BRAKE, NEW: 2022

DELEM 3-AXIS CNC CONTROL
SINGLE AXIS PROGRAMMABLE BACK-GAUGE
LASER FINGER SAFETY GUARD
FOOT SWITCH

Tonnage44 T39.916 t
TypeHYDHYD
OA Length40"1 m

MAX. TONNAGE: 44
MAX. BENDING LENGTH 39.4"
DISTANCE BETWEEN HOUSINGS: 31.5"
STROKE: 3.9"
OPEN HEIGHT: 12.1"
THROAT DEPTH 9.8"
TABLE HEIGHT 31.5"
TABLE WIDTH 3.5"
SPEEDS:
- APPROACH: 258 IPM
- BENDING: 24 IPM
- RETURN: 246 IPM
BACK-GAUGE TRAVEL (X AXIS): 19.7"
MAIN MOTOR: 5.5 HP
BACK GAUGE MOTOR: 1HP
OIL CAPACITY 15.9 GALLONS
MAX. PRESSURE 3701 PSI
APPOX. DIMENSIONSS: 90.5"(L) x 76.8"(W) x 73.2"(H)
APPROX. WEIGHT 4,080 LBS

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
