(2) 8” CHUCKS
BARFEED INTERFACE
(2) TURRETS BOTH WITH Y AXIS MILLING

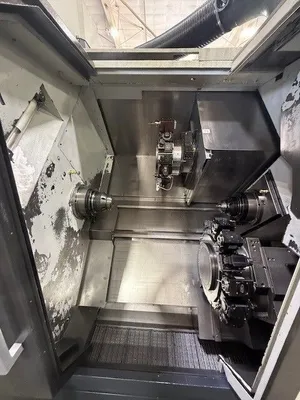

LEFT AND RIGHT 8” CHUCK SPINDLES
CHIP CONVEYER
| Swing | 31.5" | 800.1 mm |
| Machining Length | 31.8" | 807.72 mm |
| # Axis | 3 | 3 |
| Bar Capacity | 2.5" | 63.5 mm |
TRAVEL:
-X AXIS: (X1, X2, AND X3) 8.3"
-Y AXIS: (Y1, Y2, AND Y3) 4.3"
-Z AXIS: (Z1/Z2/Z3) 11.8" / 31.9" / 8.3"
CHUCK SIZE: 8" (2)
SPINDLE MOTOR (LEFT AND RIGHT): 25HP
SPINDLE SPEED (LEFT AND RIGHT): 5000 RPM
SPINDLE NOSE: A2-6
SPINDLE BORE: 2.9"
TOOLS: 16 X 3
TURRET INDEX (SINGLE STEP): 0.2 SECONDS
MACHINE DIMENSIONS (L X W X H): 199.3" X 111.6" X 91.3"
MACHINE WEIGHT: 21,120 LBS
LIVE TOOL MOTOR (T1, T2, AND T3): 10/7.5 HP
LIVE TOOL SPEED (T1, T2, AND T3): 12,000 RPM
MAX DISTANCE BETWEEN SPINDLE NOSE: 44.4"
MAX TURNING DIAMETER (MAX/STD): 12.5" / 7.9"
RIGHT SPINDLE TRAVEL: 34.3"
