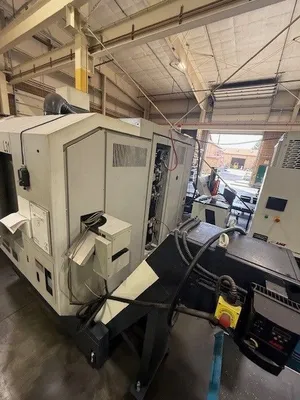

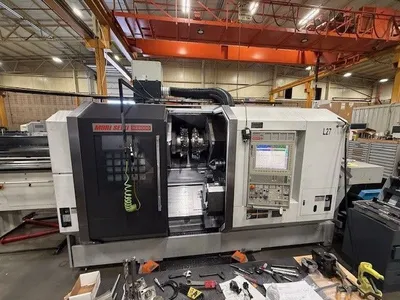

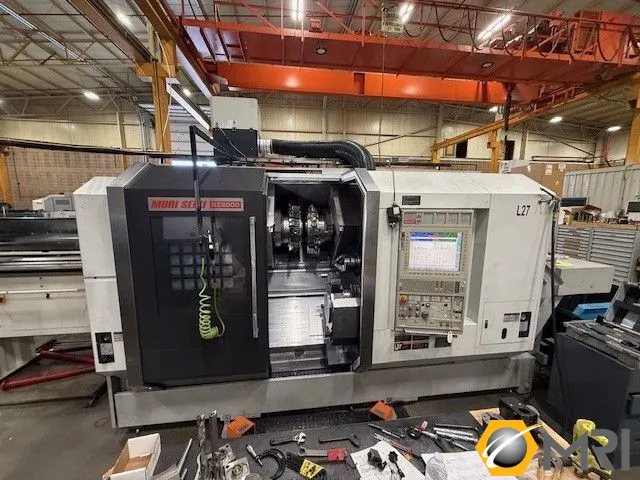

2009 MORI SEIKI NZX2000/800TY3Y TURNING CENTER | AG 7612393
ConditionUsed
1 available
For sale: 2009 MORI SEIKI NZX2000/800TY3Y, a used 12-axis CNC lathe. Features dual 8" chucks, barfeed interface, chip conveyor, and up to 12,000 RPM tool speed. Max turning diameter of 12.5" and machining length of 31.8". Perfect for high-precision tasks.
(2) 8” CHUCKS
BARFEED INTERFACE
(2) TURRETS BOTH WITH Y AXIS MILLING
LEFT AND RIGHT 8” CHUCK SPINDLES

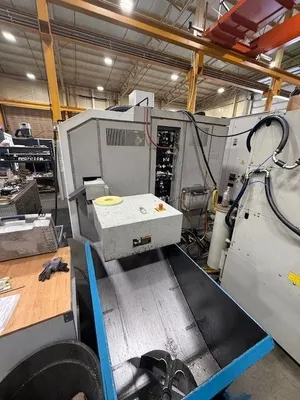

CHIP CONVEYER
TRAVEL-
X-AXIS: (X1, X2, AND X3) 8.3"
Y-AXIS: (Y1, Y2, AND Y3) 4.3"
Z-AXIS: (Z1/Z2/Z3) 11.8" / 31.9" / 8.3"
SPINDLE MOTOR (LEFT AND RIGHT): 25HP
SPINDLE SPEED (LEFT AND RIGHT): 5000 RPM
SPINDLE NOSE: A2-6
SPINDLE BORE: 2.9"
TOOLS: 16 X 3
TURRET INDEX (SINGLE STEP): 0.2 SECONDS
MACHINE DIMENSIONS (L X W X H): 199.3" X 111.6" X 91.3"
MACHINE WEIGHT: 21,120 LBS
LIVE TOOL MOTOR (T1, T2, AND T3): 10/7.5 HP
LIVE TOOL SPEED (T1, T2, AND T3): 12,000 RPM
MAX DISTANCE BETWEEN SPINDLE NOSE: 44.4"
MAX TURNING DIAMETER (MAX/STD): 12.5" / 7.9"
MAX TURNING LENGTH: 31.8"
RIGHT SPINDLE TRAVEL: 34.3"
