TRUMPF TRUPUNCH 5000 LARGE FORMAT (S12) PUNCHES AND STOPA MATERIAL HANDLING SYSTEM
ConditionUsed
1 available

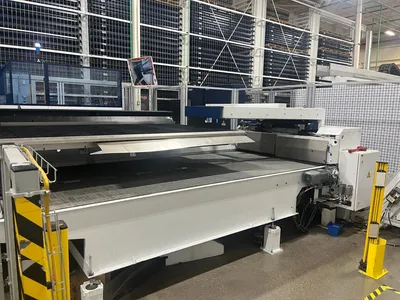

FULLY AUTOMATED TRUMPF PUNCHING SYSTEM FOR LIGHTS OUT PRODUCTION CONSISTING OF ONE 2016 AND ONE 2019 TRUPUNCH 5000 LARGE FORMAT PUNCHES AND AN 8-TOWER, 229 PALLET STOPA STORAGE AND MATERIAL HANDLING SYSTEM. BOTH PUNCHES HAVE ACTIVE DIE AND AUTOMATIC TOOL CHANGERS.
BOTH MACHINES EQUIPPED THE SAME WITH THE EXCEPTION OF THE ATC CAPACITY
SIEMENS SINUMERIK 840D CONTROL
LARGE FORMAT 60" x 120" BRUSH TABLES
* AUTOMATIC LINEAR TOOL CHANGER STATIONS:
** 2016 MACHINE: 18
** 2019 MACHINE: 54
SHEARMASTER
SHEETMASTER
PARALLEL TO PRODUCTION
INTERGRATED FLATTENING
MULTI SHEAR
MULTI BEND
TAPPING DRIVE
HIGH SPEED MARKING
ENGRAVING
WHEEL TECHNOLOGY FUNCTION - FORMING & CUTTING
ADAPTIVE STROKE CALIBRATION
DIE SPRAY LUBRICATION
SMART PUNCH MONITORING (BREAKAGE CONTROL FOR PUNCH)
SOFTPUNCH
STRIPLINE
INDEPENDENT AND AUTOMATIC CLAMP CLOSING
ANTI-VIBRATION ISLOLATION PADS
PNEUMATIC REPOSITION CYLINDERS
CHIP/SLUG CONVEYOR WITH BOX
VARIABLE VACUUM SLUG REMOVAL
LOADING/UNLOADING AIDS
SMALL PARTS BLOW-OUT DEVICE
WIRELESS OPERATION POINT AND MOBILE-CONTORL APP
RCI REMOTE CONTORL INTERFACE
SHEET COLLISION DETECTION
* PARALLEL TO PRODUCTION ON THE 2019 MACHINE ONLY
SEE LISTING FOR 2016 AND 2019 MACHINES FOR MORE PHOTOS:
2016 MACHINE STOCK NO. 7612305
2019 MACHINE STOCK NO. 7612264
GENERATION: (S12)
MAX. PUNCHING FORCE: 25 TONS
CONSTRUCTION: C-FRAME
WORKING RANGE:
- X-AXIS: 120”
- Y-AXIS: 61"
MAX. SHEET THICKNESS: 0.31"
MAX. WORKPIECE WEIGHT: 617 LBS
NUMBER OF TOOLS: 21
SPEEDS:
- X-AXIS: 3,937 IPM
- Y-AXIS: 2,362 IPM
- SIMULTANEOUS: 4,567 IPM
- C-AXIS: 500 RPM
MAX. STROKE RATE:
- PUNCHING: 1,350 SPM
- MARKING: 3,000 SPM
MULTITOOL TOOL CHANGING TIME: 0.3 SEC.
PART REMOVAL:
- MAX. PART SIZE, PART REMOVAL FLAP, PUNCHING: 19.69" x 19.69"
- MAX. PART SIZE, FIXED CHUTE, PUNCHING (WITH MOVING TABLE): 3.1" x 1.97"
APPROX. DIMENSIONS (PUNCH ONLY): 321”(L) x 322"(W) x 82"(H)
