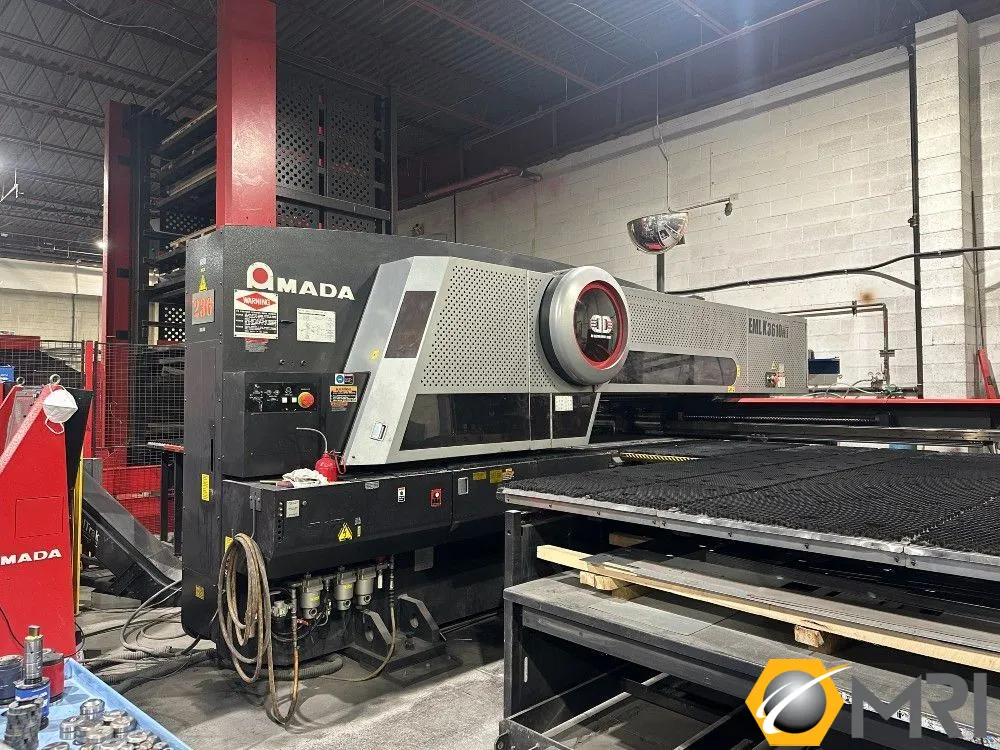

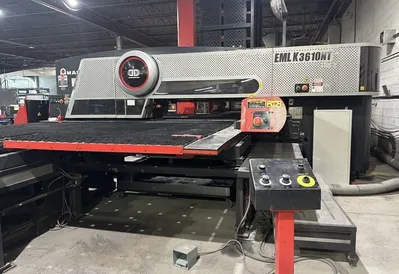

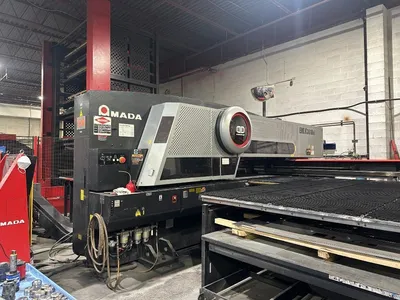

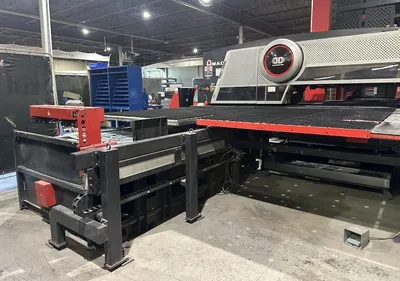

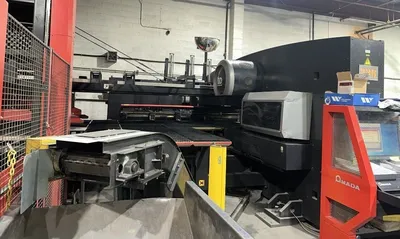

AMADA EMLK3610-NT PUNCH/LASER COMBO AND ASR3015-NTK MATERIAL HANDLING SYSTEM, NEW: 2011
ConditionUsed
1 available
AMADA EMLK3610-NT PUNCH/LASER COMBO AND ASR3015-NTK MATERIAL HANDLING SYSTEM, NEW: 2011.
DUAL ELETRIC SERVO DRIVEN PUNCH
4,000 WATT FANUC C02 RESONATOR

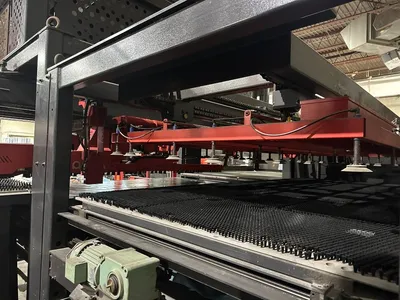

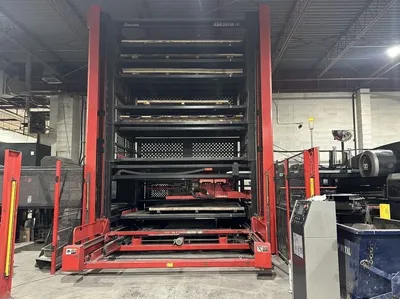

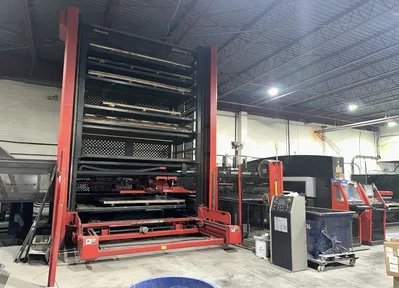

AMADA ASR3015-NTK 10-9, 10 SHELD MATERIAL STORAGE AND HANDLING SYSTEM WITH PART PICKING CAPABILITY
AMADA ASR3015 NTK 10-P STORAGE LOAD/UNLOAD SYSTEM
- PART PICKING
- 10 SHELVES
- MANUFACTURED IN 2014
FANUC AMCF-F CNC CONTROL
AC SERVO DRIVEN RAM
FANUC AF 4000E CO2 LASER RESONATOR
DIAGNOSTIC SYSTEM - EXTENSIVE DIAGNOSTIC SYSTEM INDICATES PROGRAMMING ERRORS AND PINPOINTS
INTELLIGENT TURRET SET UP- INPUT TOOL LOCATIONS AND ANGLES, CLAMP POSITIONS
JOB SCHEDULER- SPECIFY JOB ORDER AND QUANTITIES
STRIPPING SENSOR - AUTOMATICALLY HALTS MACHINE OPERATION IF TOOL DOES NOT STRIP
AUTOMATIC REPOSITIONING - HEAVY DUTY WORK HOLDERS SECURE MATERIAL DURING REPOSITIONING
SHEET JAM DETECTOR
QUICK CHANGE LASER HEAD
POWER VACUUM DIE
TRAP DOOR
METRIC OR INCH DIMENSIONAL PROGRAMMING
PRECISION GROUND RECIRCULATING BALL LEAD SCREWS FOR X AND Y AXIS
CRASH PROOF CLAMP SENSORS
HARDENED AND GROUND TURRET INDEX PINS AND BUSHINGS
SAFETY INTERLOCKS AND OVERRUN PROTECTORS WITH ALL STEP CONTROL PREVENTS ACCIDENTS
58 STATION THICK TURRET
BRUSH TABLE
PUNCH CAPACITY: 33 TONS
MAX. LASER OUTPUT: 4,000 WATTS
MAX. SHEET SIZE: 60" X 200" (WITH ONE AUTO REPO)
MAX SHEET THICKNESS: 1/4" MS
LARGEST PUNCHED HOLE: 4.5"
NUMBER OF TURRET STATIONS: 58
AUTO INDEX STATIONS: 4
FEED CLEARANCE: .984"
X/Y HITS PER MIN. 1" CENTERS: 400 HPM
X/Y HIT RATE MARKING: 1800 HPM
MAX LASER CUTTING SPEED: 787 IPM
LINEAR POSITIONING SPEED:
- X-AXIS: 3937 IPM
- Y-AXIS: 3150 IPM
TRAP DOOR SIZE: 17" X 60"
LASER RESONATOR: FANUC AF 4000E
CONTROL MODEL: FANUC AMCF-F (NT)
DRIVE MOTORS: AC SERVO
SMALLEST PROGRAMMABLE INCREMENT: .001"
MACHINE WEIGHT: 66,139 LBS.
