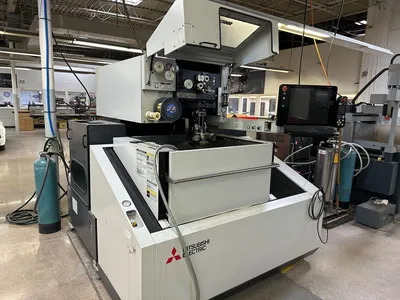

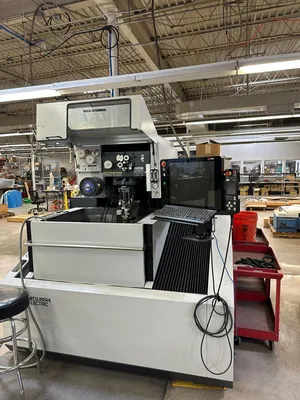

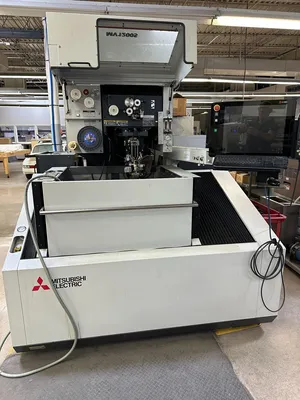

2021 Mitsubishi MV1200S CNC WIRE EDM | 7612462 MM
ConditionUsed
1 available
The MV1200-S Advance Type M800 features improvements to machine construction, auto-threading, internal machine communication, and power supply technology.

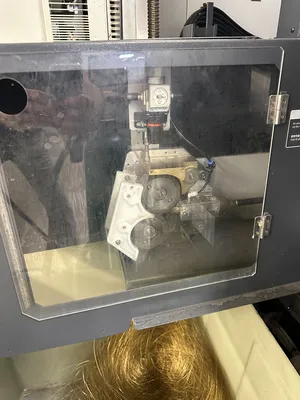

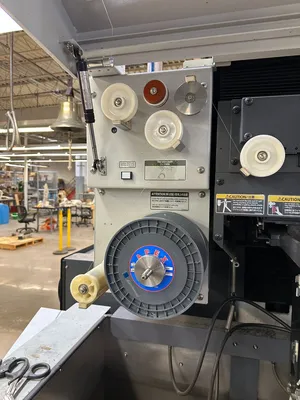

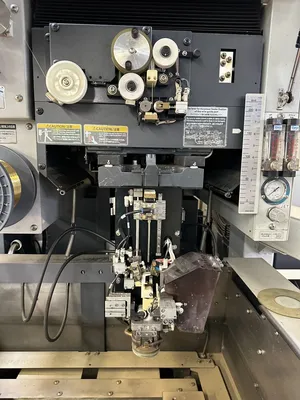

INCLUDES: Linear Motor Drive System (No Ball Screws), AT Automatic Wire Threader, Submerged Cutting,

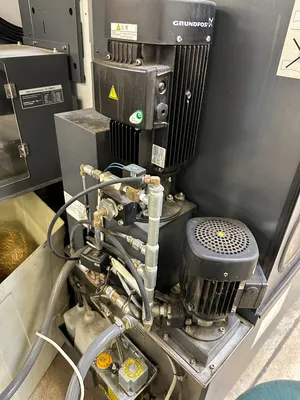

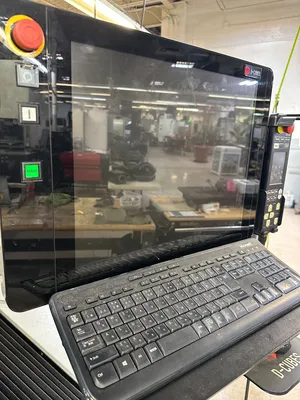

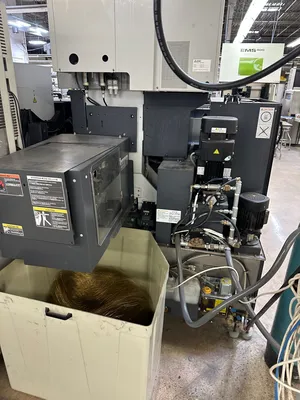

Di Electric Chiller, D-Cubes Control w/ 15” Color Touch Screen, Wire Alignment Device, Automatic Way Lubrication.
Maximum Workpiece Dimensions 31.9” x 27.6” x 8.5”
Maximum Workpiece Weight 1,102 lbs.
Table Dimensions 25.3” x 21.3” (3 Sided, Hardened)
Machine Range 15.7” x 11.8” x 8.7”
U/V Travel +/- 2.36”
Wire Diameter .004” - .012” (.010” Guides)
Max. Workpiece AWF Height 8.0”
Machine Dimensions 81” x 108” x 80”
Machine Weight 5,952 lbs.
Input Power (Total) 13.5 KVA – 200 -220V, 3 Phase
