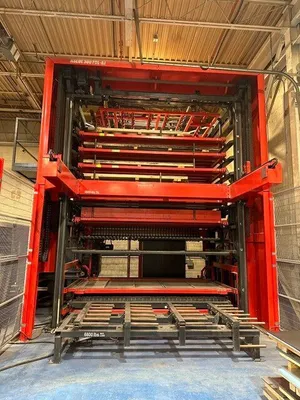

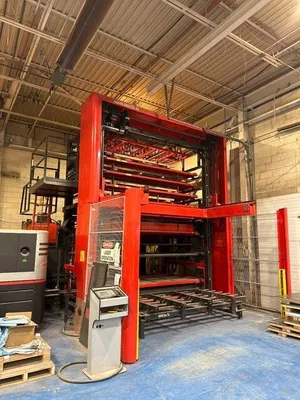

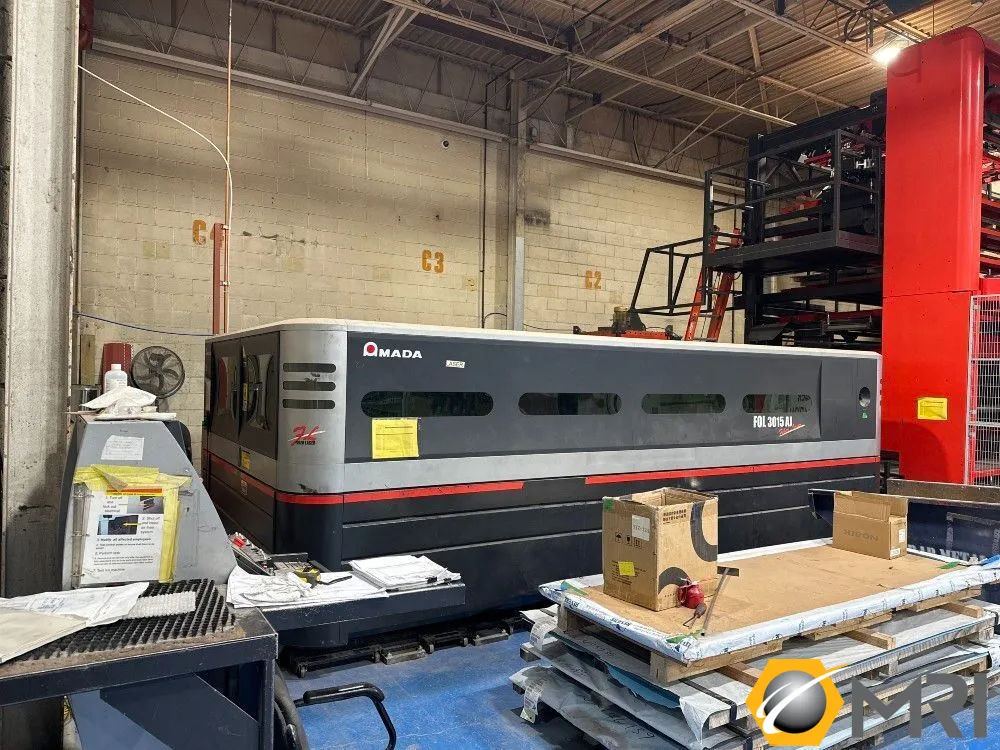

AMADA FOL 3015-AJ FIBER LASER WITH MATERIAL STORAGE AND HANDLING SYSTEM, NEW: 2013

LASER TYPE: FIBER
MAX. LASER OUTPUT: 4,000 WATTS
TRAVELS:
- X-AXIS: 121"
- Y-AXIS: 61"
- Z-AXIS: 3.93"
MAX. SHEET SIZE: 5' x 10'
TABLE HEIGHT: 37"
DRIVE FEED METHOD ALL AXES: LINEAR
MAX. TRAVERSE SPEED X/Y AXIS: 13,386 IPM
MAX. AXIS POSTIOING SPEED:
- X/Y-AXIS: 9,448 IPM
- Z-AXIS: 4,724 IPM
MAX. ACCLERATION: 5G
MAX. CUTTING SPEED: 0-9,449 IPM
POSITION ACCURACY: (+/-) 0.0004"
MAX. MATERIAL WEIGHT: 1,653 LBS
MAX. MATERIAL THICKNESS:
- MILD STEEL: 0.866"
- STAINLESS STEEL: 0.709"
- ALUMINUM: 0.63"
- COPPER: 0.315"
- BRASS: 0.315"
NUMBER OF CONTROLLED AXES: 5 (X/Y/Z/B) AND LASER CONTROL
POWER SUPPLY 200/60 V/Hz [(+/-)10%], 3 PHASE
POWER STABILITY: (+/-)2%
ASSIST GAS: 4 PORTS WITH NC PRESSURE CONTROL
ELECTRICAL REQUIREMENTS: 200V, 3-PHASE, 6OHz
