2016 Doosan Puma GT2600 CNC Lathe | 7612467 MM

2016 Doosan Puma GT2600 CNC Lathe | 7612467 MM

Sell Your DOOSAN PUMA GT-2600
877-568-2121
inquiries@machineryresources.com
$54,900.00 USD
ConditionUsed
1 available
Sell Your DOOSAN PUMA GT-2600

Overview

Type:
CNC Lathes (Turning Centers)
Manufacturer:
DOOSAN
Model:
PUMA GT-2600
Year:
2016
Stock #:
7612467
Status:
For Sale

Description

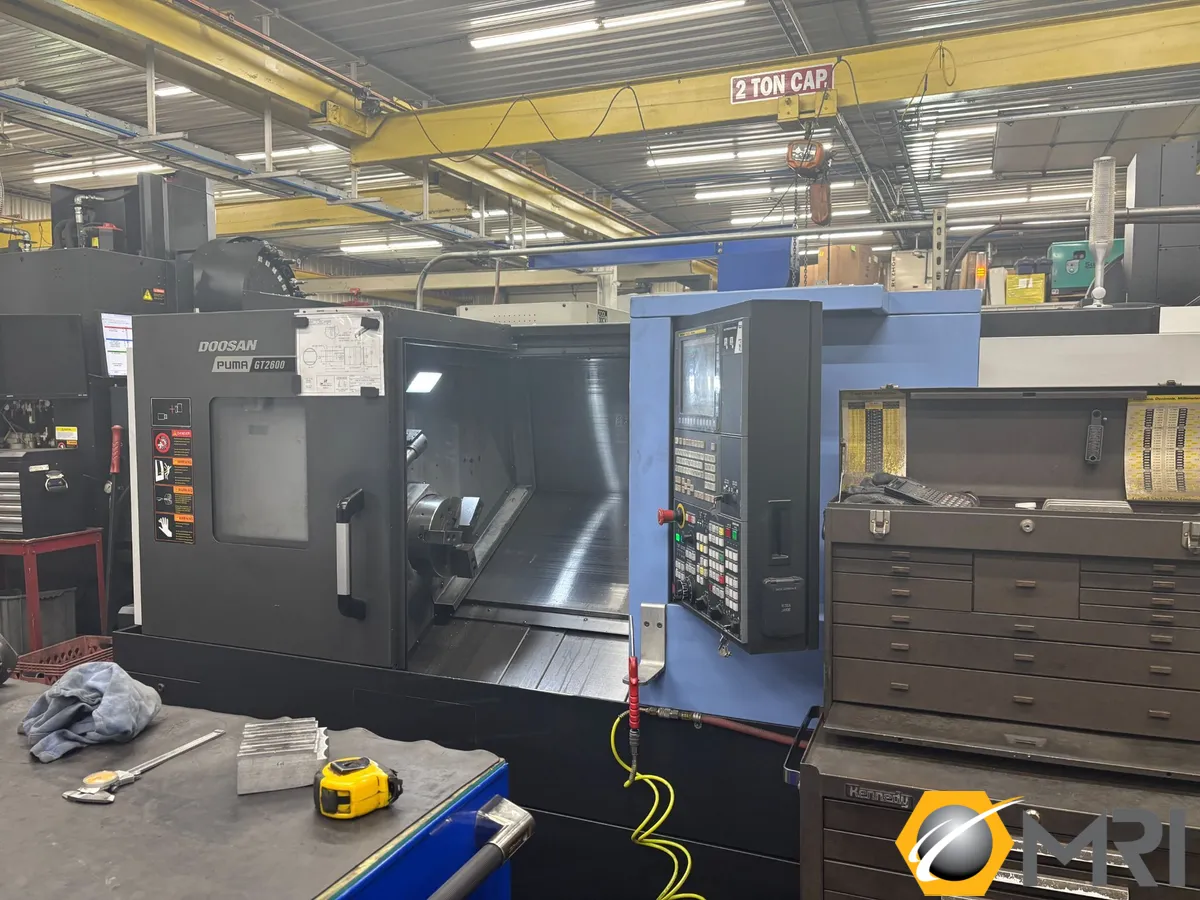

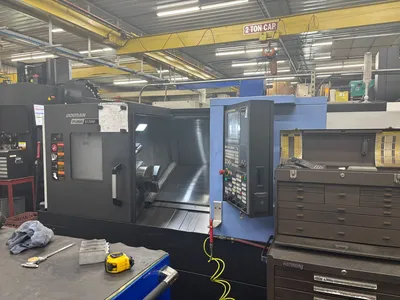

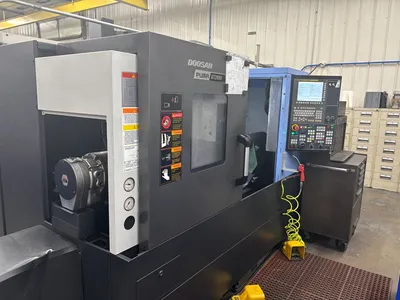

The Doosan Puma GT2600 is a high-performance 2-axis horizontal CNC turning center, designed for rigid, heavy-duty cutting and superior surface finishes. It features a 10-inch chuck, 3.0-inch bar capacity, and a box guideway structure, making it suitable for demanding production environments. It is frequently utilized for machining complex, high-precision parts.

3200 Cutting Hours

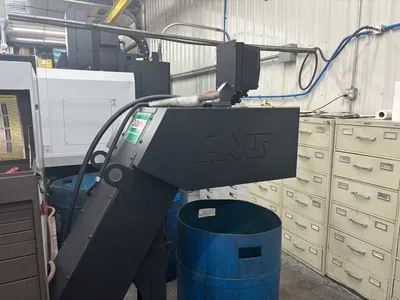

Chip Conveyor
Tool Pre-Setter

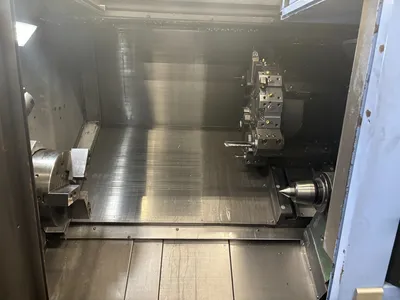

Tail Stock

Swing24.8"629.92 mm
Machining Length24"609.6 mm
# Axis22
Bar Capacity3"76.2 mm
Chuck Size10"254 mm
Distance Between Centers25.9"657.86 mm
Turning Diameter18.1"459.74 mm
Power30 hp22.4 kW
Max RPM3,500 RPM3,500 RPM
TailstockYesYes
Live ToolingNoNo
Sub SpindleNoNo
# of Turrets11

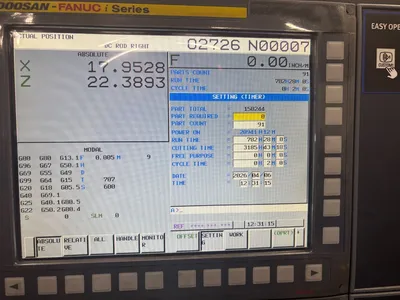

ControlCNC (FANUC Oi-MATE TF)CNC (FANUC Oi-MATE TF)
Dimensions130" x 65" x 68"130" x 65" x 68"
Weight11,00011,000

Swing: 24.8"
Turning Diameter: 18.1"
Center Distance: 25.9"
Chuck Size: 10"
Bar Capacity: 3.2"
X-Axis Travel: 10.4"
Z-Axis Travel: 26.8"
Rapid Traverse (X/Z): 945/1,181 ipm
Spindle Nose: A2-8
Spindle Speed: 3,500 rpm
Main Motor: 30 hp
Turret Capacity: 12
Tailstock (Yes/No): yes
Machine Dimensions: 130" x 65" x 68"
Machine Weight: 10,340 pounds

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
