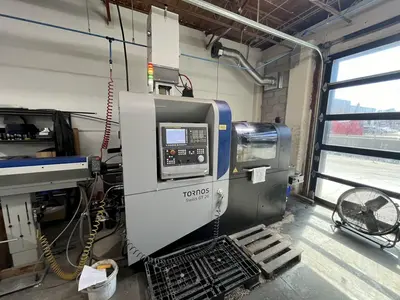

2022 TORNOS SWISS GT 26/6 CNC LATHE | IH 7612471
ConditionUsed
1 available
2022 TORNOS SWISS GT 26/6 CNC Lathe with 5+ axes. Specs include 10000 RPM spindle speed, 8.2 kW power, and 40 tool capacity. Equipped with rotating guide bush, Fanuc 31iB control, and more. Compact design: 2710x1270x1990 mm, 3550 kg.
Rotating guide bush with integrated motor X
Machining without guide bush X
S21 rear platten rotating tool motor X
S11 front platten rotating tool motor X
S51 rotating tool motor in counter-operation X
C1 + C4 axes X
Interpolation in polar coordinates - is an Option
Pneumatic workpiece ejector + oil cleaning of collet X
Automatic centralized lubrication cycle X
Beacon (4 colour) X
20 bar lubrication pump with manual selection filters X

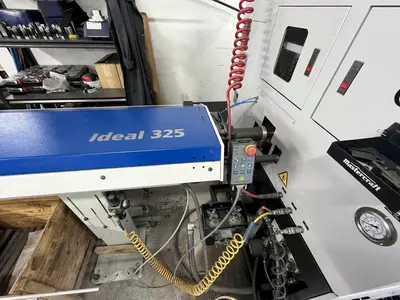

Bar feeder interface X
Fire extinguisher interface X
TISIS programming software - IS an Option
NUMERICAL CONTROL
Control type Fanuc 31iB
Encoder / axis motor technique Absolute serial
Motor type (axes and guide bush) Synchronous (AC)
Motor type (spindles) Asynchronous (AC)
Colour screen and mobile operator console
PROGRAMMING SOFTWARE
ISO language code C, TMI
GENERAL SPECIFICATIONS SWISS GT 26 SWISS GT 26 B
Max. length mm 2710
Max. width mm 1270
Height mm 1990
Weight kg 3550
Cutting oil tray capacity l 200
Coolant pump power kW 0.44
Colours RAL 9006 grey, RAL 9011 black
CE / CEM certified
Max. Bar Capcity: 23 (25.4) mm
Standard workpiece Length with rotating guide bush: 220 mm
Spindle rotation speed: 0-10000 RPMs
Spindle power: 8.2 (10.5) KW
Max. Torgue: 26 Nm
Max. Number of Turning Tools: 10
Turning tool Section: 16 x 16
Number of Frontal Tools ( op / cop ): 5 / (5)
Positions for rotating Tools (s11): 4
Positions for Rotating Tools (s21 modular positions ): 3
Rotating tool speed of rotation: 5000 RPMs
Rotating Tool Power ( S11 / S21 ): 0.75/1 KW
B- Axis Number of rotating Tool Positions S21 ( op/cop): 4/4
B-axis Number of fix frontal Tools (op/cop): 4
B-axis HF spindle: Option
B-axis Threading whirling device: Option
B-axis Rotating tool speed of rotation: 9000 RPMs
B-axis Rotating tool power (s11/s21): 0.75/1 KW
Counter spindle Max. bar Capacity: 25.4 mm
Counter Spindle Insertion Length of workpiece into spindle: 120 mm
Counter spindle Max standard output length of workpiece: 120 mm
Counter Spindle Spindle rotation speed: 0-10000 RPMs
Counter Spindle Spindle Power: 8.2 (10.5) KW
Counter Spindle Max. torque: 26 Nm
Counter Spindle Number of tool positions next to the counter spindle: 2
Counter operation Number of tools positions: 8
Counter operation Positions for rotating tools: 4
Counter operation Rotating tool speed of rotation: 5000 RPMs
Counter operation Rotation tool power: .75 KW
Total Number of Tools Operation/Counter - operation Distribution: 40 Tools ( 27/13)
