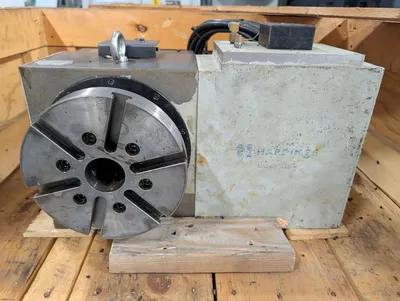

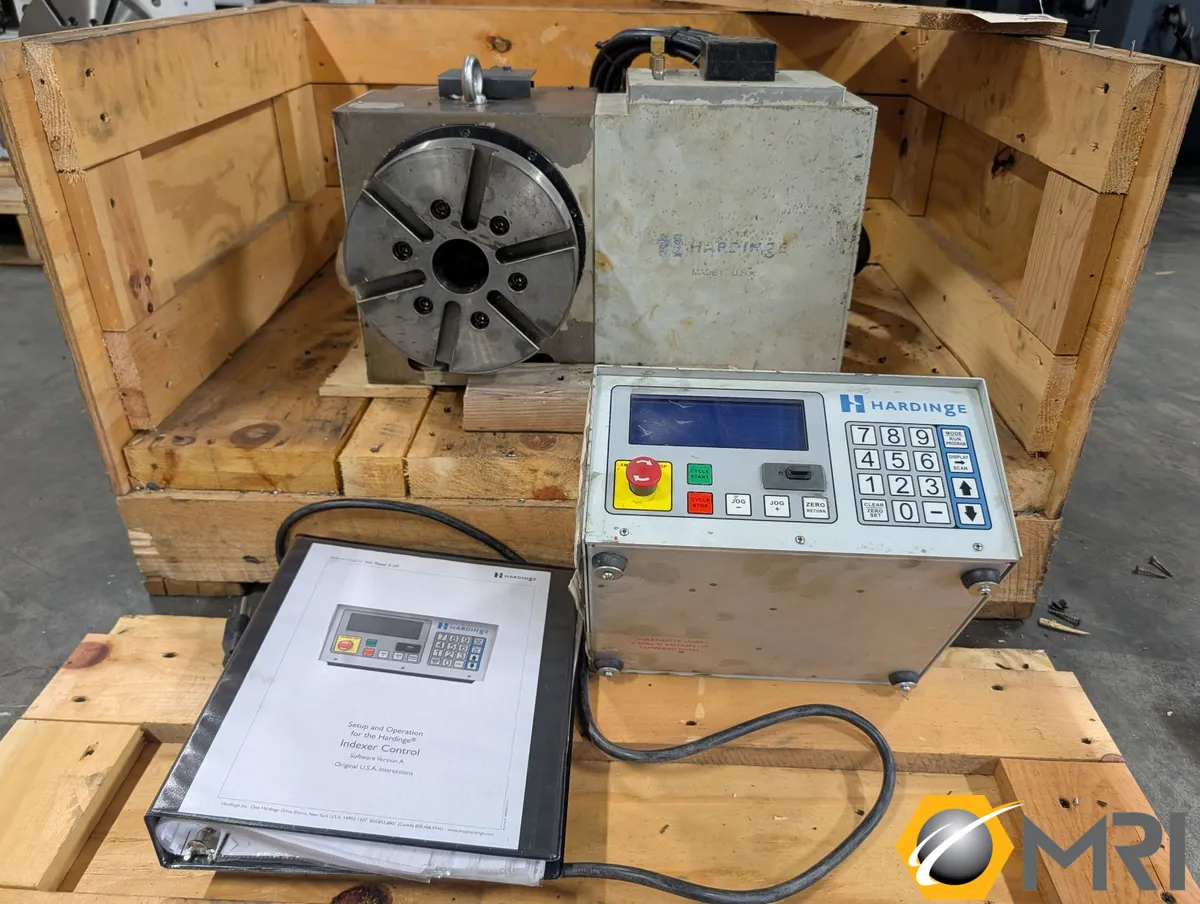

HARDINGE GD210 LP ROTARY TABLE WITH CONTROL | AG 7612481

SPINDLE:
TORQUE (FT-LB/NM) 90 (122)
SPINDLE RUNOUT MAX TIR (IN/MM) .0002
FACEPLATE RUNOUT MAX (INCH/MM) .0002
FACEPLATE PERPENDICULARITY (INCH/MM) .0002
BACKLASH (ARC/SEC) 40
SPEED (DEGREES/SEC) .001-240
RPM MAXIMUM 40
LOAD SUPPORT DUAL DEEP GROOVE BALL BEARING
SPINDLE NOSE A2-5
SPINDLE CENTER-TO-BASE 6”
INDEXING:
ACCURACY (ARC/SEC) 30
REPEATABILITY (ARC/SEC) 5
RESOLUTION (DEGREE) .001
MAX ROTATION/STEP (DEGREE) 9999.99
GEAR DIAMETER 6.2”
MOTOR:
TYPE (HP/KW DC SERVO) 2.0 (1.5) WITH HARDINGE SERVO CONTROL
CLAMPING TORQUE 275FT-LB/373 NM
GEAR RATIO 90:1
L-PITCH TIMING BELT FREQUENCY HZ 144-150
OIL REQUIREMENTS MOBILGEAR 600 XP 220
POWER RATING 115V@10 AMPS
AIR PRESSURE RANGE (PSI/BAR) 85-94 PSI/ 5.9-6.5 BAR
