2019 CHEVALIER SMART-H818III SURFACE GRINDER | SM 7612487

2019 CHEVALIER SMART-H818III SURFACE GRINDER | SM 7612487

Sell Your CHEVALIER SMART-H818III
877-568-2121
inquiries@machineryresources.com
ConditionUsed
1 available
Sell Your CHEVALIER SMART-H818III

Overview

Type:
GRINDERS, SURFACE, RECIPROC. TABLE (HOR. SPDL.), N/C & CNC
Manufacturer:
CHEVALIER
Model:
SMART-H818III
Year:
2019
Stock #:
7612487
Status:
For Sale

Description

Chevalier SMART-H818III, 2019 model, used surface grinder. Features 8"x18" table, 4 HP motor, and PC-based SMART-III control. Grind efficiently with speeds from 1,000-7,000 RPM, max load 462 lbs. Ideal for precision tasks.

Table-W8"203.2 mm
Table-L18"457.2 mm
Power4 hp3 kW
Grinding Wheel Width0.5"12.7 mm
Grinding Wheel Dia.8"203.2 mm
ControlCNCCNC

Capacity: 8″ x 18″ grinding capacity
Max Workpiece Weight: 462 lbs (210 kg)
Spindle Motor: 4HP (3 kW)
Spindle Speed: 1,000 - 7,000 RPM
Wheel Diameter: 8" (203.2 mm)
Wheel Width: 0.5" (12.7 mm)
Least Input Increment: 0.0001″ (0.001 mm)
Table Speed: 0.33 - 82 FPM (0.1 - 25m/min)
Max Distance (Table to Spindle): 17.5” (445 mm)

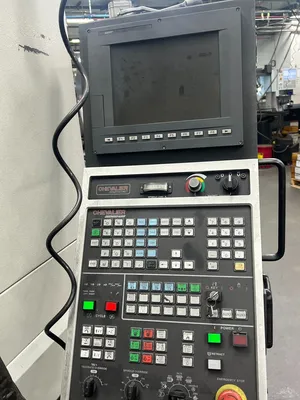

Control: SMART-III (PC-based) conversational

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
