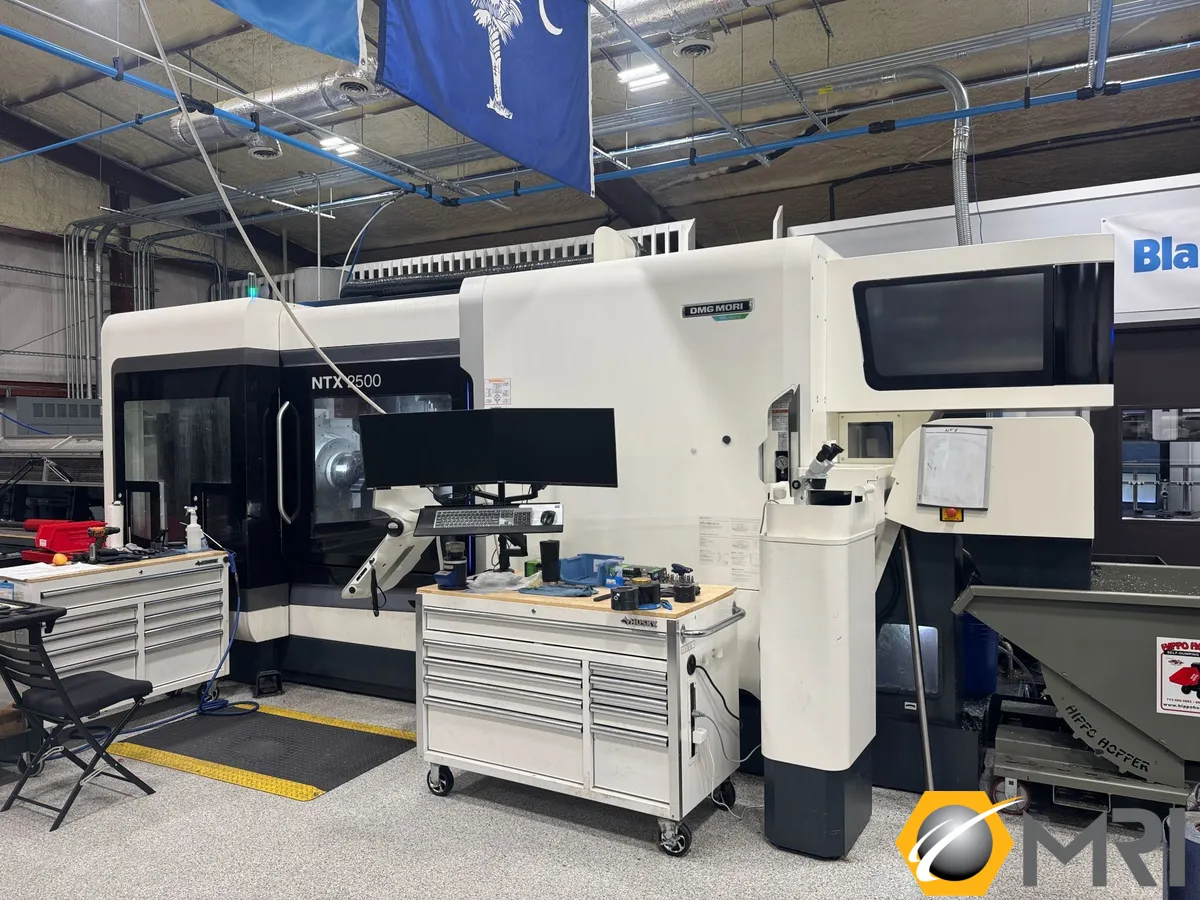

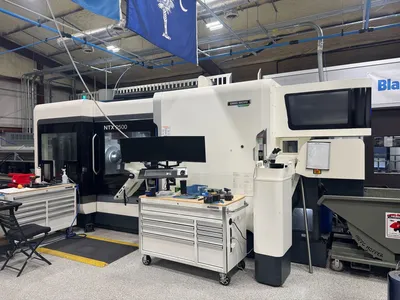

2022 DMG MORI NTX2500/1500 MILL TURN LATHE | AG 7612496

(Spindle 1) through-spindle hole dia. 91 mm, 4,000min-1 (STD) (FANUC)
(Spindle 2) through-spindle hole dia. 91 mm, 4,000min-1 (FANUC)

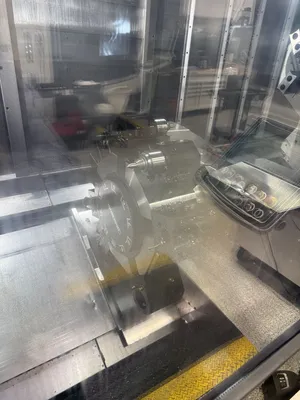

Chuck for Main spindle
(Spindle 1) KITAGAWA 10in. Hollow Chuck BB210A821
(Spindle 1) Hollow Cylinder set for KITAGAWA 10in. Hollow Chuck BB210A821 (without chuck body)
Chuck for Counter spindle
(Spindle 2) KITAGAWA 10in. Hollow Chuck BB210A821
(Spindle 2) Hollow Cylinder set for KITAGAWA 10in. Hollow Chuck BB210A821 (without chuck body)
Tool Spindle
High-speed tool spindle, 20,000 min-1, 23/ 22.2 kW (FANUC) + Additional Water-glycol chiller (spindle cooling, Separate Type)
Capto C6
Tool spindle full indexing specifications (STD)

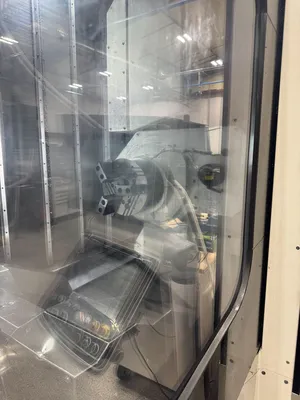

Turret
Turret 2 : Y-axis
10 Station Bolt-Tightened Turret, high-torque milling specifications (6,000 min-1, 40 Nm) (Turret 2) (FANUC)
Tailstock
Spindle 2 tailstock specifications
Tool Magazine
Tool storage capacity 76 tools (Capto C6)
Coolant supply / Chip removal
Usable Coolant Type: Water-Soluble Coolant
Chip conveyor (right discharge, hinge type + drum filter type) (/1500)
Interface for Super-high-pressure coolant system (7.0 MPa, Variable Pressure Steps, KNOLL/ Interlit, for 2-path system) (Coolant system for Through Spindle (Tool spindle) and Turret 2)
Coolant gun
Air blow for tool tip (tool spindle)
Air blow for chuck (Counter Spindle)
Interface for Mist collector (duct only, dia. 200 mm )
Measuring / Monitoring
Manual in-machine tool presetter (removable type, spindle1 and spindle2) (STD)
In-machine workpiece measuring system radio signal transmission type touch sensor (RENISHAW, RMP600)
Automation
Signal lamp 4 colors (Red, yellow, green, blue)
Workpiece unloader (Spindle 2, workpiece receiver type) +Workpiece unloading conveyor+ Workpiece stocker
Spindle 2 workpiece ejector (cylinder type)
Interface for EtherNet/IP
Interface for Bar feeder (EtherNet/IP Interface)with terminal block for power supply
General Options
Multi dry filter
Voltage of Customer Factory 220 V
Frequency 60 Hz
Setting Unit inch
Technology Cycle
Alternating speed
3D quickSET
MPC (Machine Protection Control
Options for Control
Addition of optional block skip (soft key type 2-9)
X-Axis Direction JIS / ISO Standard
DMQP: LNS CB V40HP - 1000 PSI 14 GPM variable flow high pressure coolant system with mounted 1200 cfm mistBLASTER and mounted chipCHILLER
