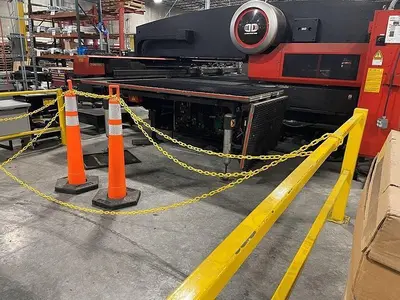

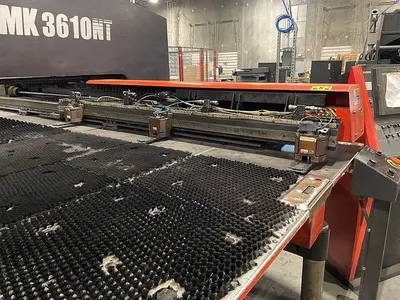

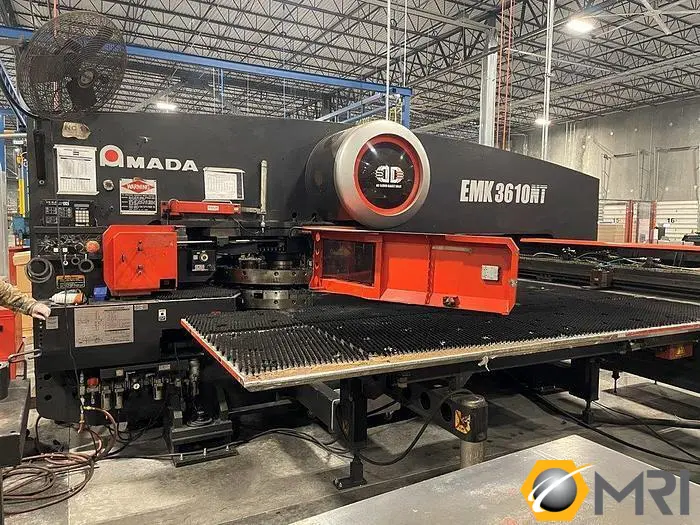

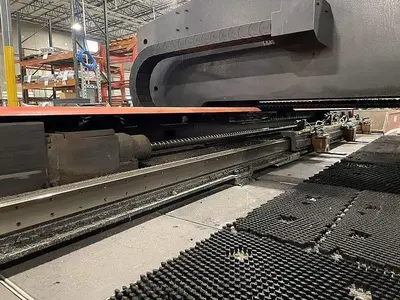

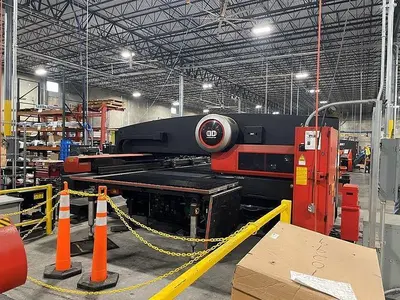

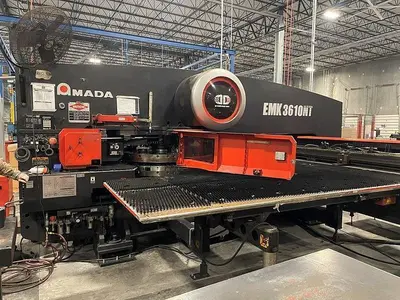

AMADA EMK3610 NT ELECTRIC SERVO CNC TURRET PUNCH, NEW: 2007

MAX. TONNAGE: 33
DRIVE: ELECTRIC SERVO
TRAVELS:
-X AXIS: 98.425"
-Y AXIS: 60"
MAXIMUM SHEET SIZE (WITH ONE REPOSITION): 60" x 196.85"
MAXIMUM SHEET WEIGHT:
- F1: 110 LBS.
- F4: 330 LBS.
FEED CLEARANCE: 0.984"
STROKE LENGTH: 1.45"
MAXIMUM SHEET THICKNESS: 0.187"
PUNCHING ACCURACY:
- STANDARD: +/- 0.004"
- HIGH ACCURACY MODE: (+/-) 0.0027"
TABLE POSITIONING SPEED
- X-AXIS: 3,937 IPM
- Y-AXIS: 3,150 IPM
TURRET ROTATION SPEED: 30 RPM
PUNCHING HIT RATE - 1″ PITCH (0.2" STROKE)
- X-AXIS: 500 HPM
- Y-AXIS: 300 HPM
NIBBLING HIT RATE - 0.080 PITCH (0.2" STROKE)
- X-AXIS: 745 HPM
- Y-AXIS: 410 HPM
MARKING HIT RATE - 0.197" PITCH (0.055" STROKE): 1,800 HPM
TURRET CONFIGURATION:
- TOOLING STYLE: THICK - AMADA
- TOTAL STATIONS: 58
- AUTO INDEX STATIONS: 4 (2 x 1.25", 2 x 4.5")
ELECTRIC POWER REQUIRED: 200/208 3 PHASE
MACHINE WEIGHT: 46,200 LBS.
