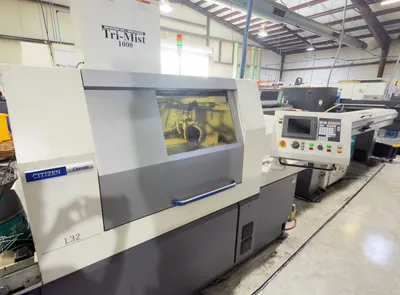

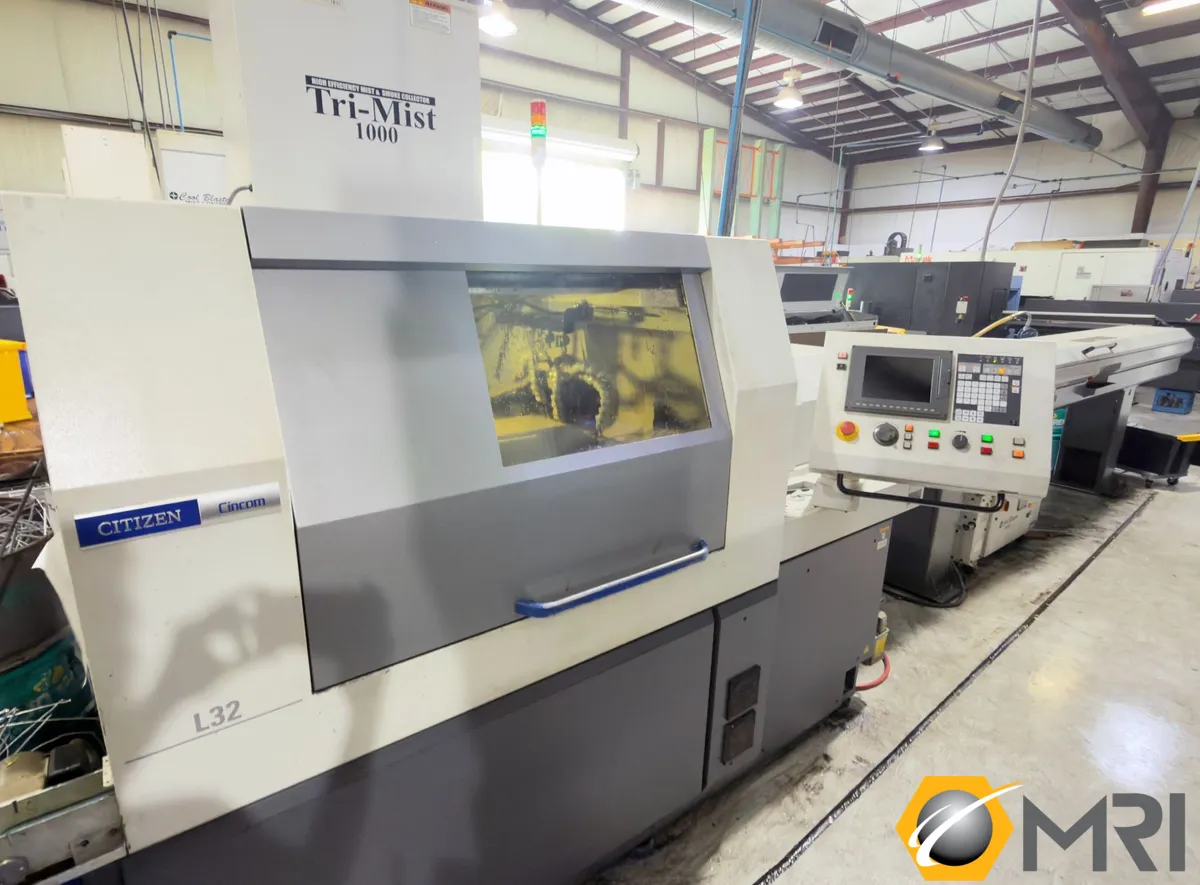

2016 CITIZEN L32XII CNC SWISS LATHE | IH 7612500

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and
accessories prior to purchase.

General Specifications per Brochure:

CNC Control: Cincom System M70LPC-VU
Simultaneous 9 Axis Control

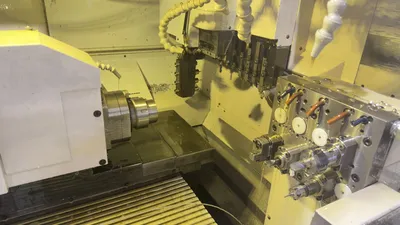

Main Spindle
Machining Diameter: 1 1/4" (1.25")
Machining Length per One Chuck: 12.6"
Drilling Diameter: Up to 1.25"
Spindle Speed: 200 - 8,000 rpm
Spindle Input Increment: Full C-axis
Motor: 3.7/7.5 KW

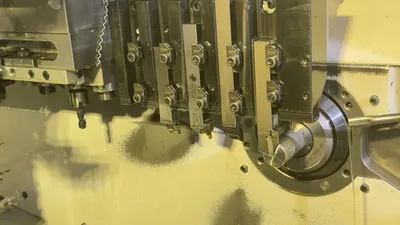

Tooling: Sleeve 1" Gang Turning 5/8"

Back-Work:
Chucking Diameter of Pick-Off Spindle: 1.25"
Pick-Off Spindle Speed: 200 - 8,000 rpm
Pick-Off Spindle Motor: .75/1.5 KW
Spindle Increment Full C-axis

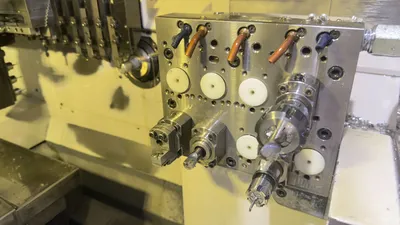

Rotary tool:
Rotary Spindle Speed: 200 - 6000 rpm
Rotary Tool Motor: 1.0 KW

Number of Tools Mounted: 30-40
Turning / Front ID / Back ID / Live tools: 6 / 4-9 / 13-19 / 7-11

Power Consumption: 13.2 KVA

Machine Dimensions: 99" x 55" x 70" H
Machine Weight: 6393 lbs.
