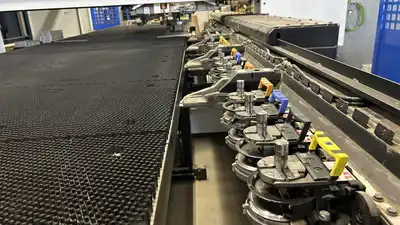

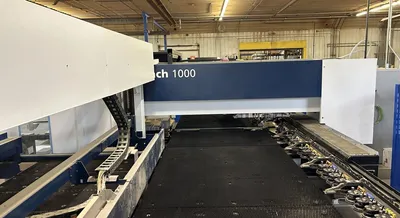

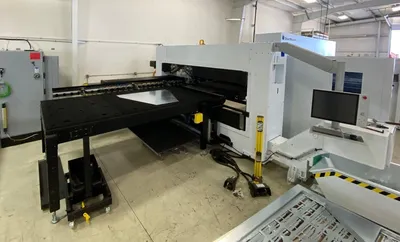

TruPunch 1000 (S19) - Whether a part calls for contours or formed sections, you can rise to the challenge with a multitude of forms, grinds, and coatings as well as set-up features. The punching head can rotate all the tools to whatever angle is required. And you can make things even more productive with our MultiTool punching system, which combines up to ten different punch and die inserts in a single tool. The MultiTool solution is a cost-effective solution for punching multiple small holes in a single part.

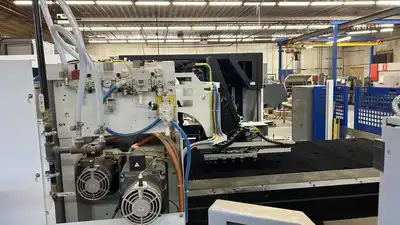

Delta Drive - The new superweapon in TRUMPF’s arsenal for punch and punch-and-laser processing. The patented drive was developed with an eye to achieving several goals, such as facilitating the construction of smaller machines and opening up new methods of material handling. But how? The secret of the Delta Drive is that it eliminates the need to move the sheet and work table in the Y axis – normally an integral requirement of sheet metal processing – making the punching head “fly” in that direction. This is made possible by an ingenious drive system, which is powered by two servomotors. When the servomotors move in the same direction, they allow the punching head to move back and forth in the Y axis. And when the ball screws rotate in opposite directions, this activates the punching stroke. This feature of the drive separates punch and die, allowing them to function independently of one another.
SIEMENS SINUMERIK 840D CONTROL

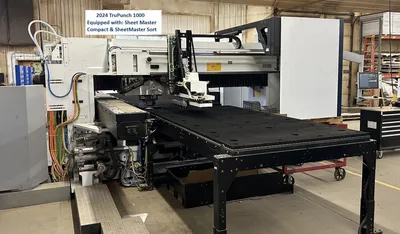

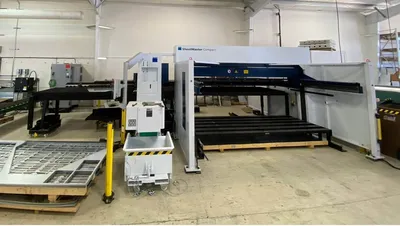

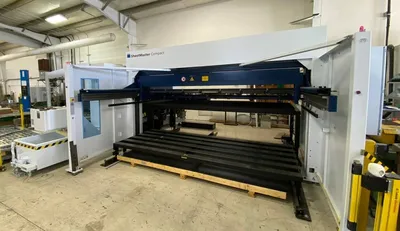

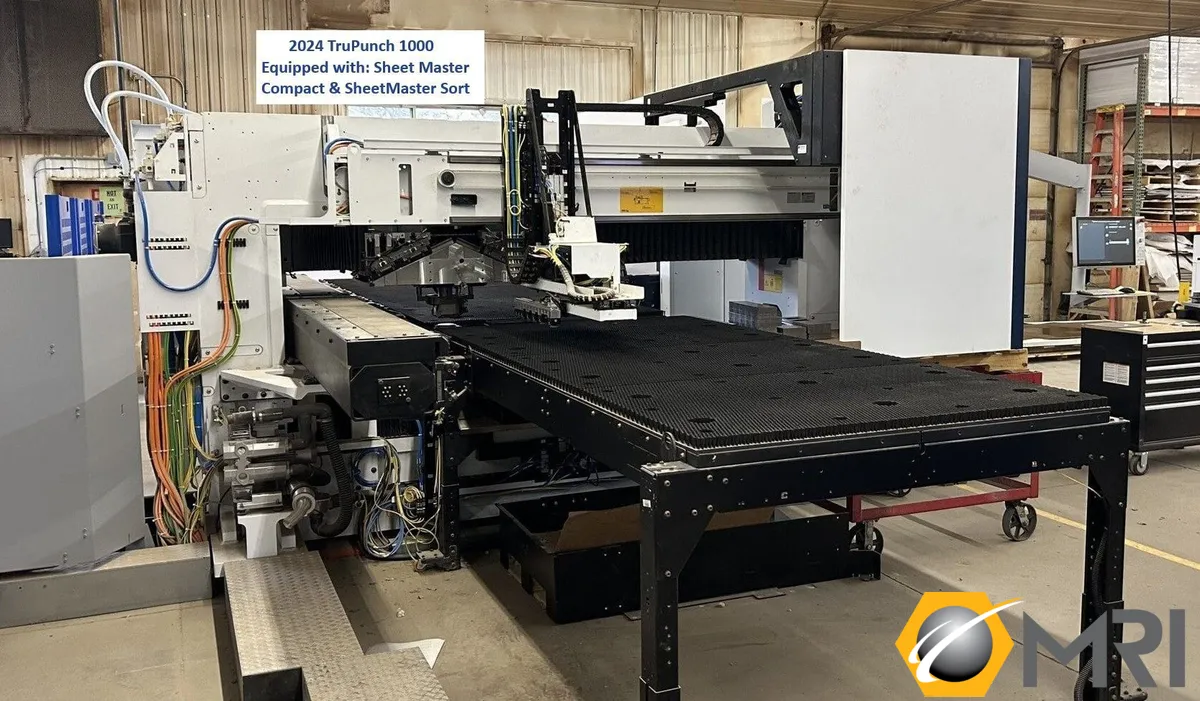

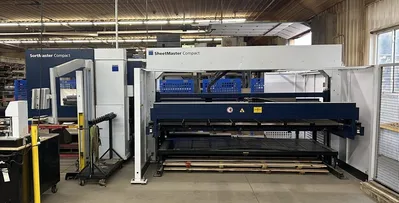

TRUMPF SHEETMASTER COMPACT

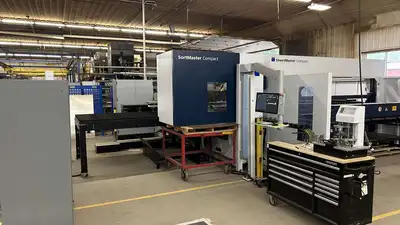

TRUMPF SORTMASTER COMPACT
TRUMPF QUICKSET TOOL SETTER
BRUSH TABLE
HOURS:
- MACHINE ON: 1150
- PUNCH: 120
MAX. TONNAGE: 18
WORKING RANGE:
- X-AXIS: 118"
- Y-AXIS: 59"
MAX. SHEET THICKNESS: 0.25"
MAX. WORKPIECE WEIGHT: 330 LBS
MAX. STROKE RATE:
- PUNCHING: 600 SPM
- MARKING: 1,000 SPM
MAX. SIMULTANEOUS TRAVERSE RATE: 3,937 IPS
MAX. AXIS ACCELERATION (PUNCHING) X/Y-AXIS: 33/26 F/S²
MULTITOOL TOOL CHANGING TIME: 2.4 SECONDS
NUMBER OF TOOLS: 18
NUMBER OF SHEET CLAMPS: 2
MAX. PART SIZE (PART REMOVAL FLAP): 15.75" x 23.6"
MAX. PART SIZE (FIXED CHUTE): 7" x 7"
APPROX. DIMENSIONS: 301"(W) x 302"(D) x 87"(H)
APPROX. WEIGHT (PUNCH ONLY) 20,060 LBS
