2020 DMG MORI NLX2500SY BIG BORE MULTI AXIS CNCNLATHE | AG 7612503
ConditionUsed
1 available

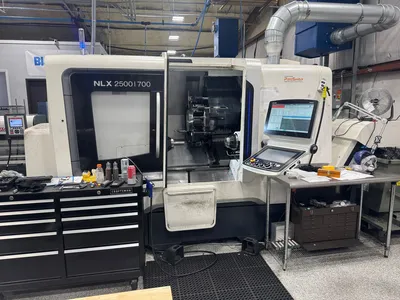

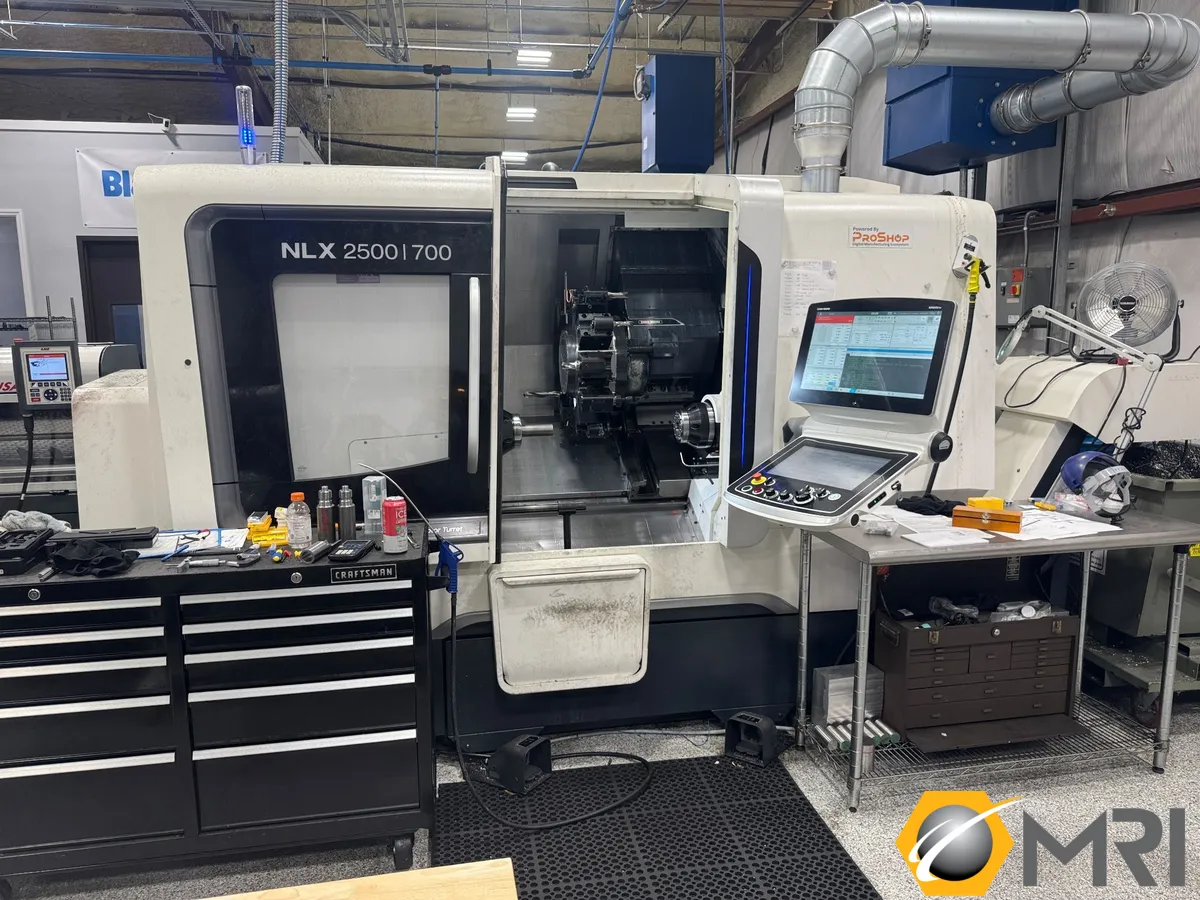

2020 DMG MORI NLX2500SY CNC Lathe in used condition features 12" chuck, 2500 RPM spindle, 30 HP motor, X/Z axis travel 10.2"/31.3", 12-station turret, and sub-spindle. 4.1" HOLE Equipped with tool setter, chip conveyor, robot interface, and more.
Tool Setter
Chip conveyer
Robot interface
Sub spindle
y-axis
tailstock option
Celos Control
LNS quick load servo 3 barloader
Trough Hole: 4.1" 111mm
Chuck Size: 12"
Spindle Speed: 2500 RPM
Spindle Motor: 30 HP
X Axis Travel: 10.2"
Z Axis Travel: 31.3"
Rapid Rate Z Axis: 1,181 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 18.1"
Max Turning Length: 27.7"
Max Swing: 23.2"

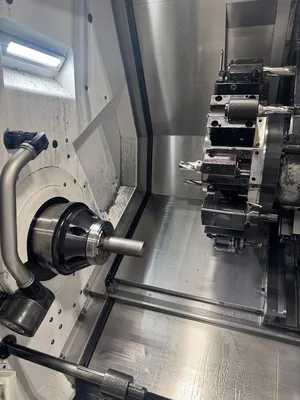

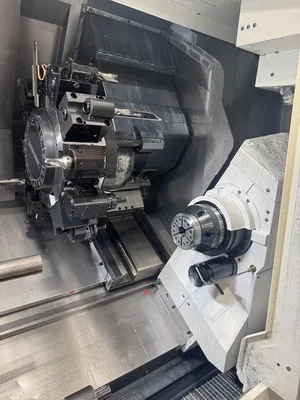

SUB-SPINDLE:
Sub Spindle Speed: 5,000 rpm
73mm hole through
Sub Spindle Nose: A2-6
Sub Spindle Motor: 15 hp
Travels (B Axis, Sub-spindle): 28.9"

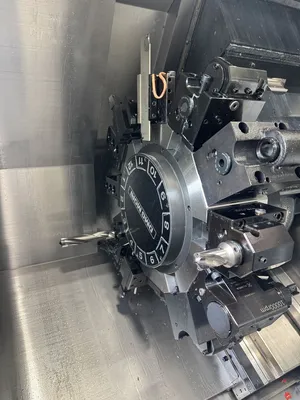

TURRET:
Turret Type: Block Style
Turret Positions: 12
Turret Index Time: 0.27 sec
Rotary Tool Spindle Speed: 10,000 rpm
Travels (Y Axis): +/- 2.0"
Rotary Tool Spindle Motor: 10 hp
Dimensions: 156" x 82.9" x 86.6"
Weight: 14,000 LBS
