FANUC 31i-B5 CNC CONTROL (SIMULTANEOUS ALL AXES CONTROL)

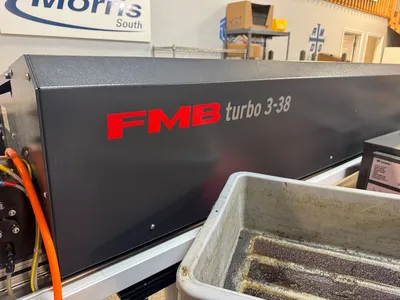

FMB TURBO 3-38 BARLOADER
X1, Z1, Y1, X2, Y2, Z2, C1, C2

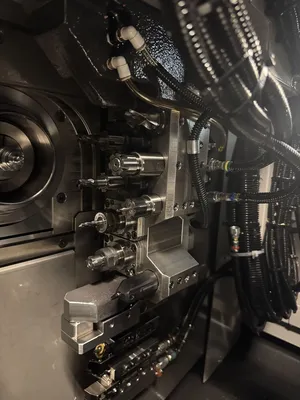

MODULAR B-AXIS TOOL SPINDLE (7,000 RPM SPINDLE)
OSCILATION CUTTING ON X1/Z1 AND X2/Z2

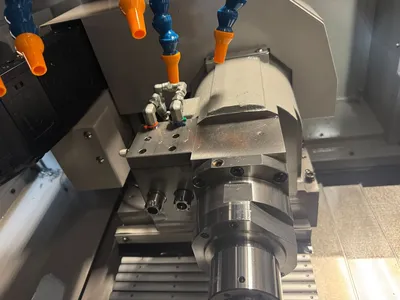

BACK CROSS TOOL SPINDLE INCLUDED

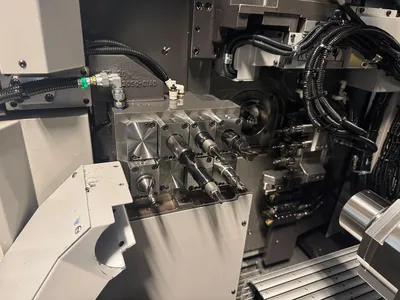

DEEP HOLE DRILL HOLDER BESIDE BACK SPINDLE (T91 & T92)

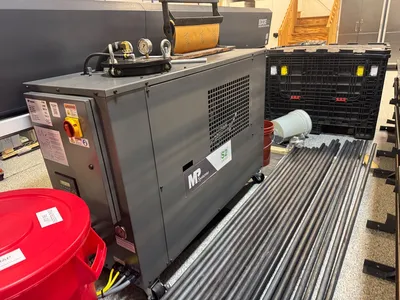

MP SYSTEMS 2000 PSI COOLANT SYSTEM (8-PORT)
FIRETRACE SYSTEM
CHIP CONVEYOR (LNS)
PARTS CATCHER
LONG PARTS EJECTOR
TRANSFORMER
SLIDING HEADSTOCK W/DIRECT DRIVE GUIDE BUSHING
CONVERTIBLE TO CHUCKER MODE W/ OPTIONAL CHUCKER KIT
RIGID CAST IRON FRAME
| Capacity | 1.25" | 31.75 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # Axis | 9 | 9 |
| Swiss, Chucker or Convertible? | Convertible | Convertible |
| Main Spindle Indexing | Full C | Full C |
| Sub Spindle Indexing | Full C | Full C |
| Live Back Working Tools? | Yes | Yes |
| Control | CNC (FANUC 31I-B5 CNC MAPPS) | CNC (FANUC 31I-B5 CNC MAPPS) |
BAR CAPACITY 1.26"
MAX MACHINING LENGTH 12.99"
MAX DRILLING DIAMETER 0.47"
MAIN SPINDLE MOTOR 7.4 hp
MAIN SPINDLE INDEXING FULL C-AXIS
MAIN SPINDLE SPEED 8,000 RPM
BACK SPINDLE MOTOR 7.4 hp
BACK SPINDLE INDEXING FULL C-AXIS
BACK SPINDLE SPEED 8,000 RPM
LIVE TOOL SPEEDS 6,000 RPM
CONTROLLABLE AXES 9
This equipment has been sold. Similar equipment available now is shown below.
