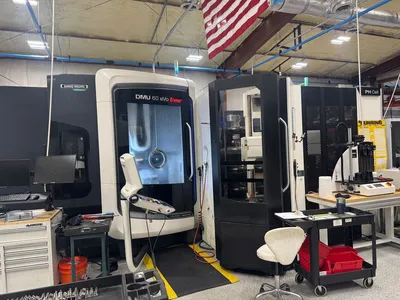

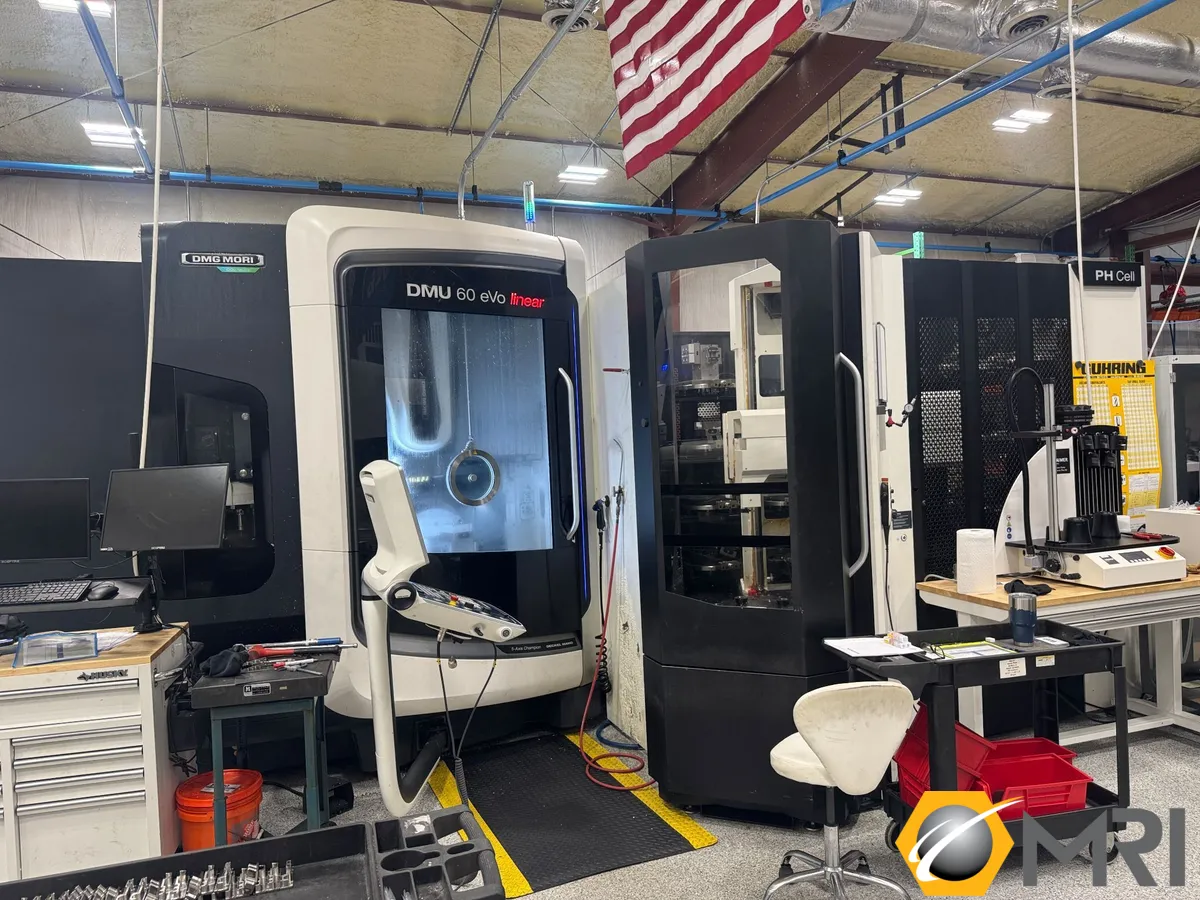

2022 DMG DMU60 EVO LINEAR FD 24 PALLET 5-AXIS VTL MACHINING CENTER | AG 7612507
ConditionUsed
1 available
The DMU60 eVo Linear is a powerhouse of both speed and accuracy in 5-
axis milling, configured this cell with DMG’s FD function, a
1,200rpm Vertical Turning C-Axis for true mill/turn capability and 24
Schunk Vero-S precision-balanced pallets outfitted tombstones, pyramids
vises, and chucks.

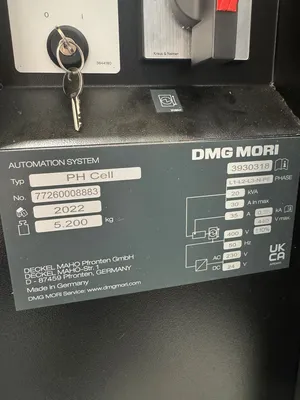

24-Pallet Lights Out Automation Cell PH300
Travels: 23.6/19.6/19.6
NC Rotary 600mm x 500mm
Table Load Capacity 881 lbs
MILL TURN OPTION 1200 RPM

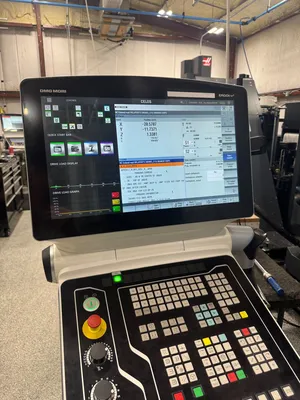

CELOS Siemans 840d sl
Power Skivving for Gear Manufacturing SK001
20,000 RPM spindle HSK 63A 47hp/33
1,160 PSI High Pressure Thru Spindle Coolant
120 pocket tool magazine

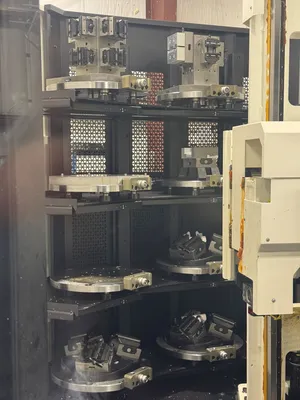

Six (6) Schunk Tombstones, each with eight (8) Schunk vises
Fourteen (14) Schunk Pyramids, each with three (3) Schunk vises
Four (4) SMW AutoBlok Turning Chucks
3d quick set
Internal coolant supply 80bar
coolant tempering for internal 980I
Schunk zero point clamping unit
laser tool Measuring BLUM NT
Infared measuring probe pp60 Optical
Dynamic package for evo linear
Sensonr package i4.0
Digital manufacturing package

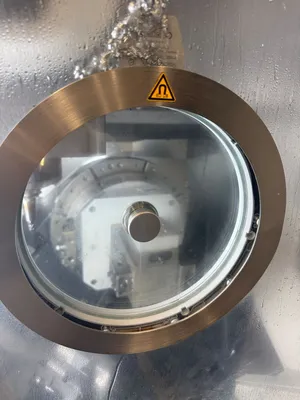

Service camera

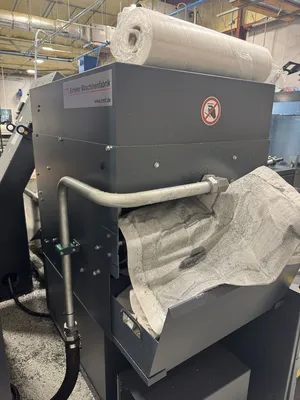

paper filter 40bar double cartridge 50um
Combi Tool Measuring , swiveling
