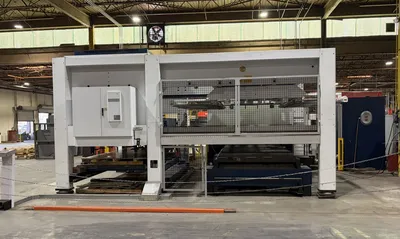

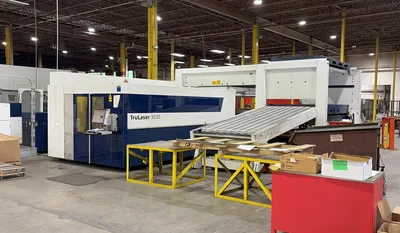

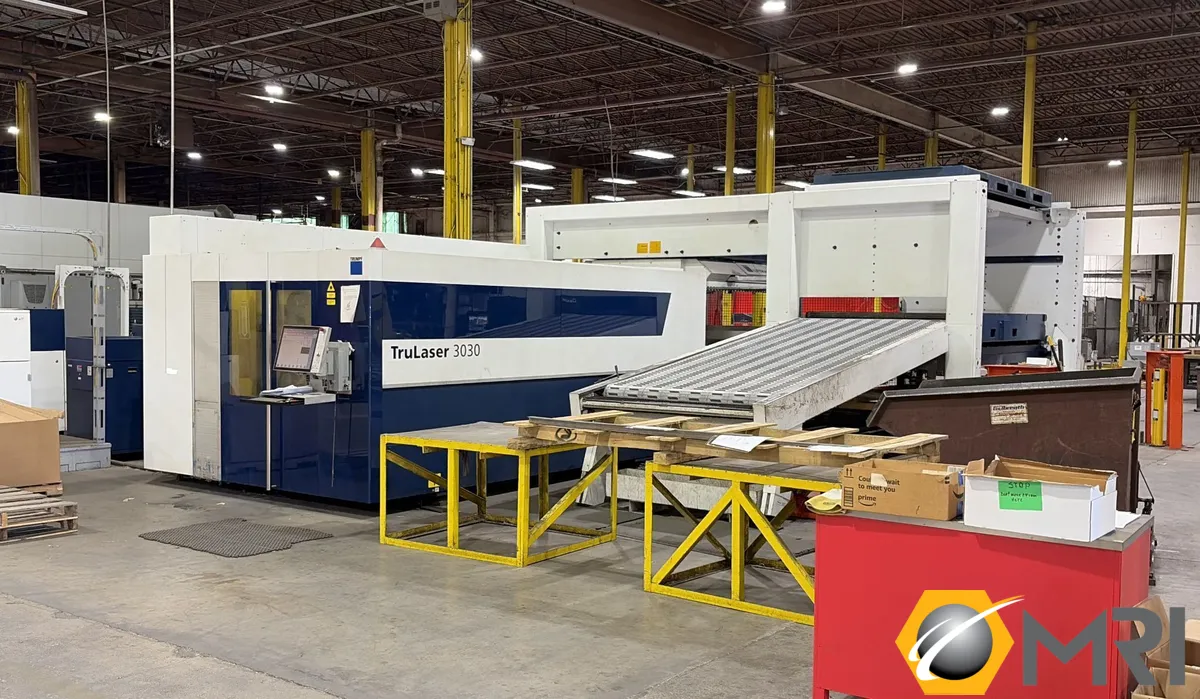

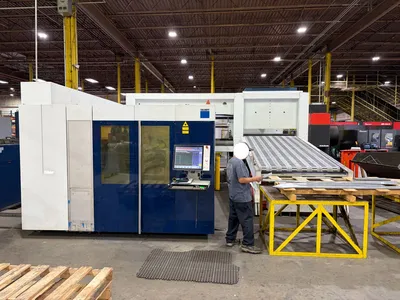

TRUMPF TRULASER 3030 FIBER, 6,000-WATT FIBER LASER AND MATERIAL HANDLING, NEW: 2018
ConditionUsed
1 available
TruLaser 3030 Fiber; the fast machine for all your cutting tasks. With the TruLaser 3030 Fiber's high level of flexibility and cost-effectiveness, you can cut all sheet thickness quickly and profitably. The TruFiber solid-state laser enables the processing of non-ferrous metals and also gives you a productivity advantage in thin and thick sheet metal. BrightLine fiber guarantees the highest edge quality and facilitates part removal. Numerous other functions ensure the highest reliability and performance possible.
SIEMENS SINUMERIK 840D SL CONTROL
AUTOMATIC NOZZLE CHANGER
BRIGHTLINE

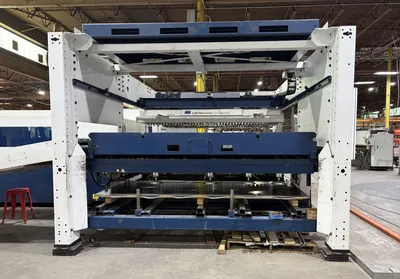

AUTO PALLET SHUTTLE
DUST COLLECTOR
CHILLER
LIFTMASTER COMPACT
SORTMASTER
HOURS AS OF 5/11/2026:
- OPERATING: 58,460
- LASER ON: 19,326
LASER TYPE: FIBER
MAX. LASER OUTPUT: 6,000 WATTS
TABLE SIZE: 60" x 120"
TRAVELS:
- X-AXIS: 120"
- Y- AXIS: 60"
- Z-AXIS: 4.5"
MAX. WORKPIECE WEIGHT: 2,425 LBS (3,968 WITH HEAVY DUTY PALLET CHANGER)
MAX. SPEED SIMULTANEOUS: 6,693 IPM
MAX. CUTTING MATERIAL THICKNESS:
- MILD STEEL: 1"
- STAINLESS STEEL: 1"
- ALUMINUM: 1"
- COPPER: 0.40"
- BRASS: 0.40"
AVERAGE POWER CONSUMPTION DURING PRODUCTION: 18KW
APPROX. DIMENSIONS: 364"(L) x 242"(W) x 87"(H)
APPROX. MACHINE WEIGHT: 25,794 LBS
