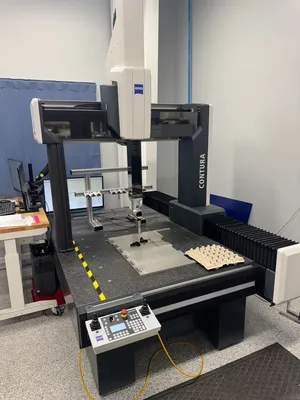

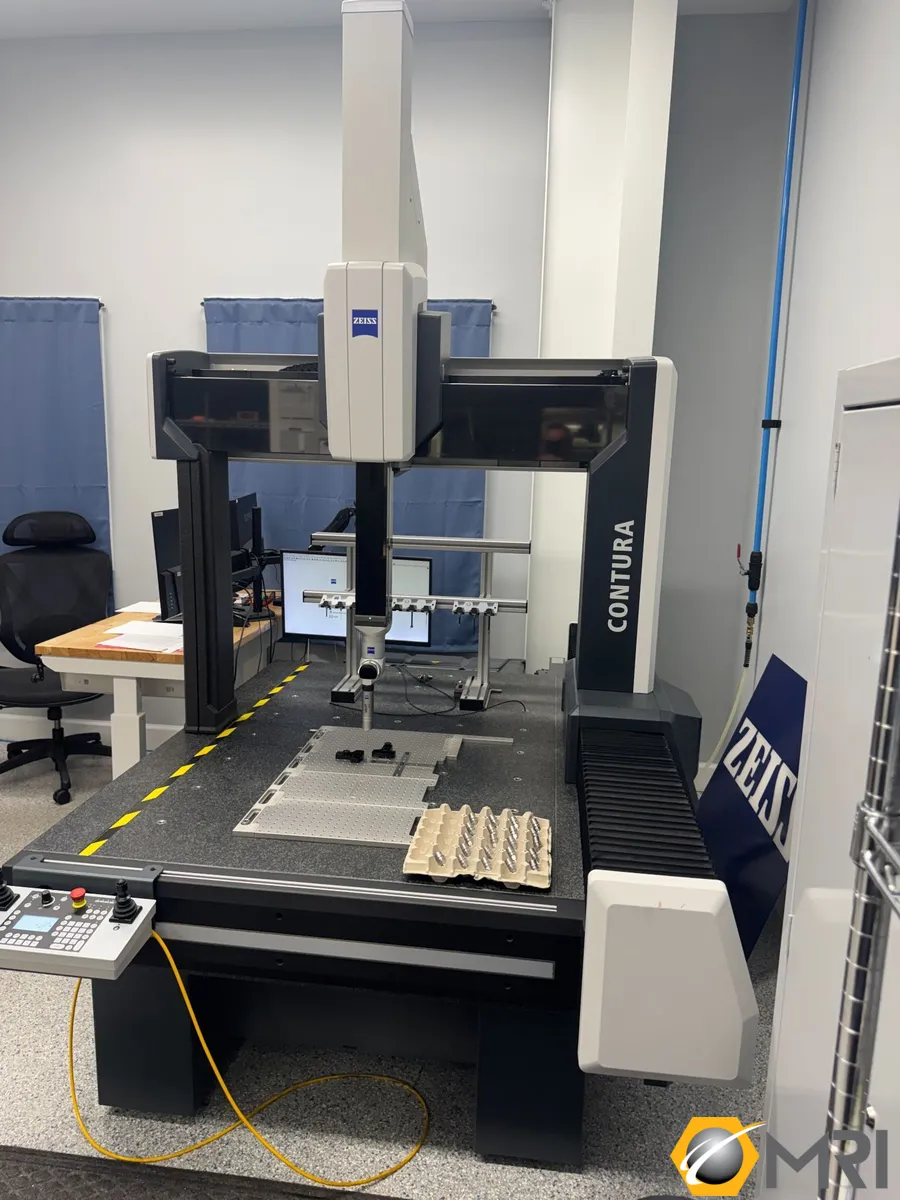

2022 ZEISS CONTURA 9/12/6 G3 CMM COORDINATE MEASURING MACHINE | AG
$89,500.00 USD
ConditionUsed
1 available
2022 ZEISS CONTURA 9/12/6 G3 CMM Coordinate Measuring Machine. Features X: 35.43" Y: 47.24" Z: 23.62". Accuracy with RDS/XXT: 1.8 μm, scanning up to 500 pts/sec. Includes MSR probe rack, stylus rack, performance computer, and 27" monitor. Used condition.
ZEISS Introductory eLearning Package (600033-0202-018)

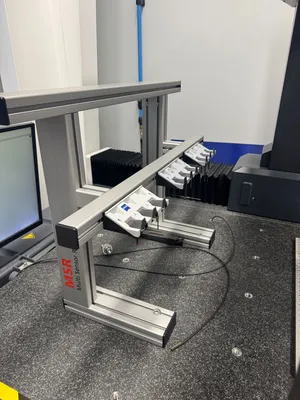

MSR Probe Rack (626100-9333-300)
3 Position Stylus Rack (Mounts on MSR rack) (620161-8510-000)
VAST XXT TL3 Adapter Plates (3) (620161-8175-000)
Upgrade to PERFORMANCE Computer (614303-9089-005)
(de-select the ENTRY computer)
Upgrade to 27" Monitor (000000-0659-995)
(de-select the 24" Monitor)

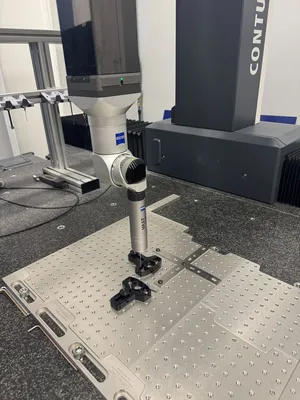

620670-9131-000 Articulating-Probe-Holder RDS-D CAA select
VAST XXT TL3 ID encoded 18 pole, complete for use with
RSH214 reference sphere holder, with 30mm diameter
Adapter Plate with ID Chip for VAST XXT TL3
Measuring Range-
X-Axis: 900 mm
Y-Axis: 1200 mm
Z-Axis: 600 mm
Accuracy and Performance-
Length Measurement Error (E0): 1.8 + L/350 μm (with RDS/XXT configuration)
Maximum 3D Probing Error (MPE PFTU): 1.8 μm
Maximum Scanning Error (MPE THP): 2.8 μm in 40 seconds
Max Scanning Speed: Up to 500 points/second
Max Workpiece Weight: 1,200 kg
Sensor and Control System-
Sensor Type: ZEISS RDS-C (Articulating)
Technology Platform: MASS (Multi Application Sensor System)
Controller: C99M
Software: ZEISS CALYPSO
