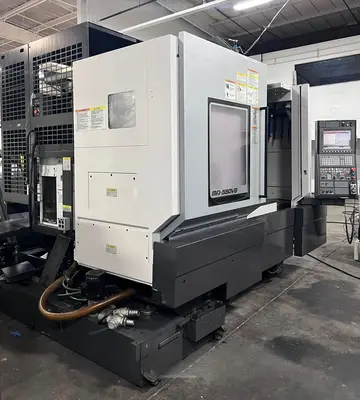

2014 OKUMA MA-550VB CNC VERTICAL MACHINING CENTER | IH 7612516
ConditionUsed
1 available

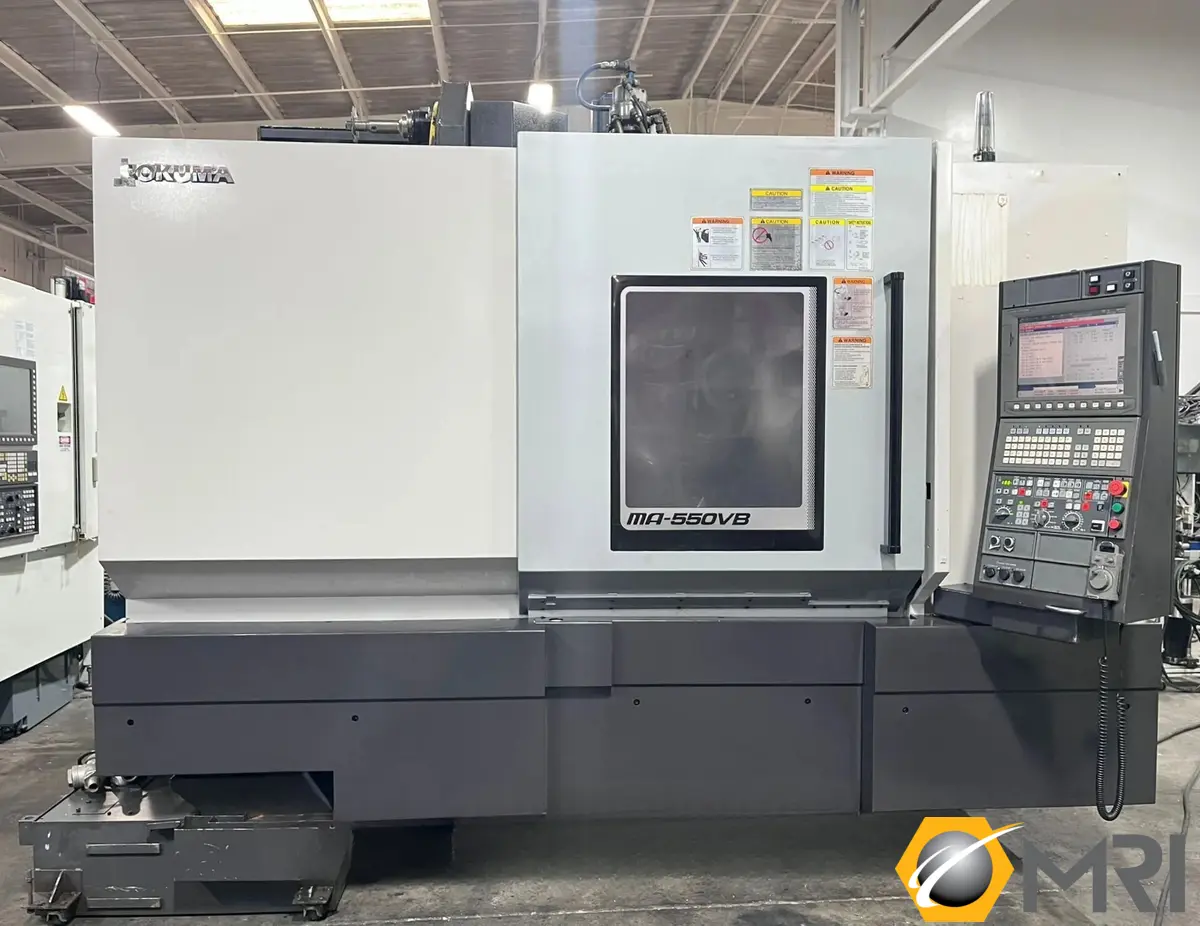

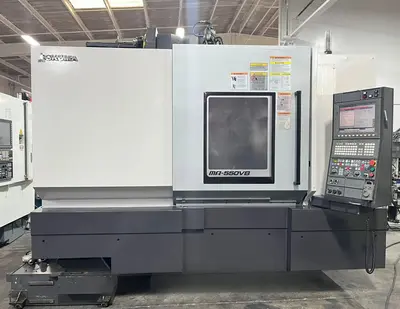

2014 OKUMA MA-550VB Vertical Machining Center available. Features include X/Y/Z axis of 51.18/22.04/22.04, 30.0 power, 6000 RPM, 32 tool ATC, and a spacious table of 22.05x51.18. Ideal for enhancing machining capability.

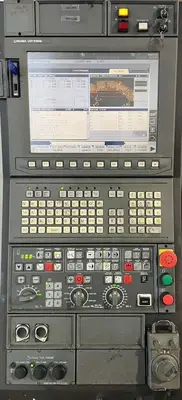

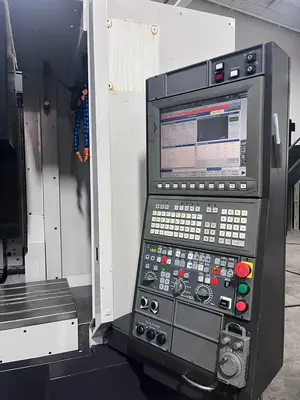

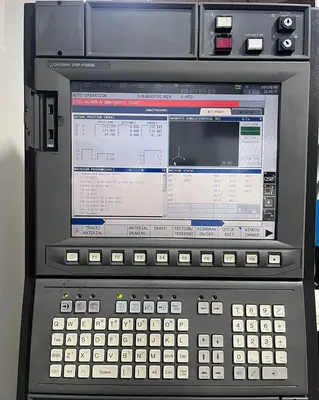

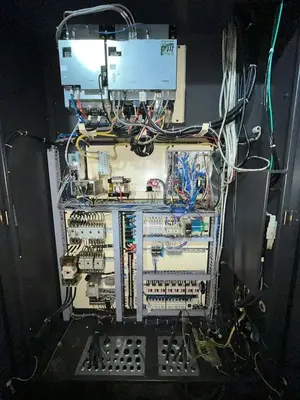

Okuma OSP-P300M CNC Control
USB Ports
Rigid Tapping

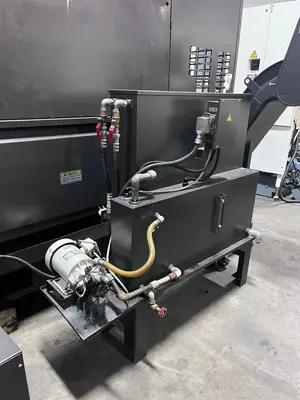

Coolant System
Telescopic Way Covers
Automatic Lubrication System

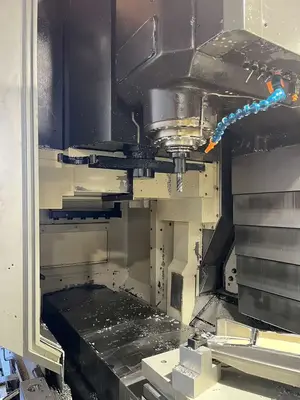

6,000 RPM Gear Head Spindle
32 Station Automatic tool changer
Through Spindle Coolant
CAT-50 Big Plus Taper Spindle

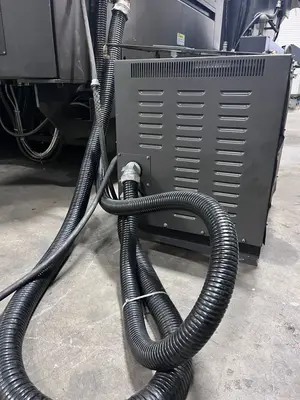

Spindle Chiller Unit
MPG Control
Chip Conveyor
Transformer
Books & Manuals
Travels:
X-Axis: 51.18″
Y-Axis: 22.04″
Z-Axis: 22.04″
X, Y Axis Rapid Traverse rates: 1575 IPM
Z Axis Rapid Traverse rates: 1181 IPM
Cutting Feedrate: 1181 IPM
Spindle Nose to Table (Min.- Max.): 7.87″ – 29.92″

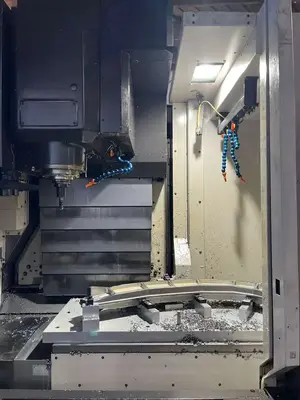

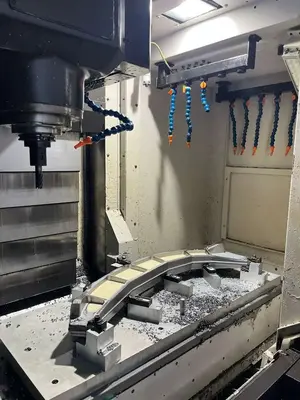

Table:
Length: 51.18″
Width: 22.04″
T-Slot no. & Width: 5 X 0.7″
Max Weight on Table: 2204 lbs

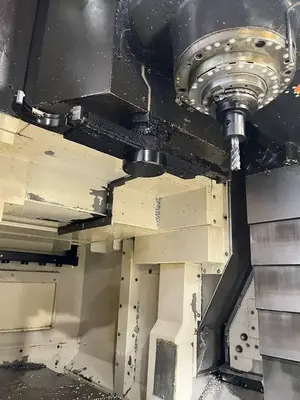

Spindle:
Spindle Type: Gear Head
Taper Size: CAT-50 Big Plus
Speed Range: 6,000 RPM
Spindle Power: 30 HP
Automatic Tool Changer:
Capacity: 32 Station Side Mounted
Max Tool Weight: 44 lbs
Max Tool Length: 15.74″
Max Tool Diameter: 5.31″
General:
Air Required: 90 psi, 4 scfm
Power: 440v/220v / 29.4kva / 3-Phase
Overall Dimensions: 126″ x 112″ x 114″ High
Weight: 29,960 lbs. Approx.
