2015 OKUMA GENOS M560-V VERTICAL MACHINING CENTER | IH 7612518

2015 OKUMA GENOS M560-V VERTICAL MACHINING CENTER | IH 7612518

Sell Your OKUMA GENOS M560-V
877-568-2121
inquiries@machineryresources.com
ConditionUsed
1 available
Sell Your OKUMA GENOS M560-V

Overview

Type:
Vertical Machining Centers
Manufacturer:
OKUMA
Model:
GENOS M560-V
Year:
2015
Stock #:
7612518
Status:
For Sale

Description

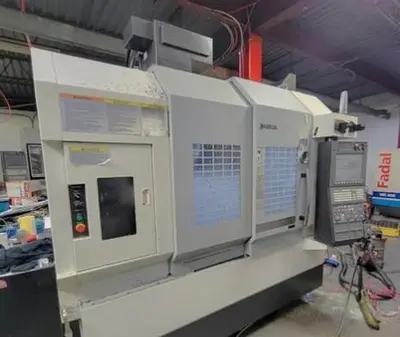

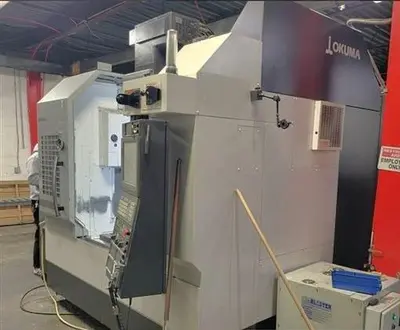

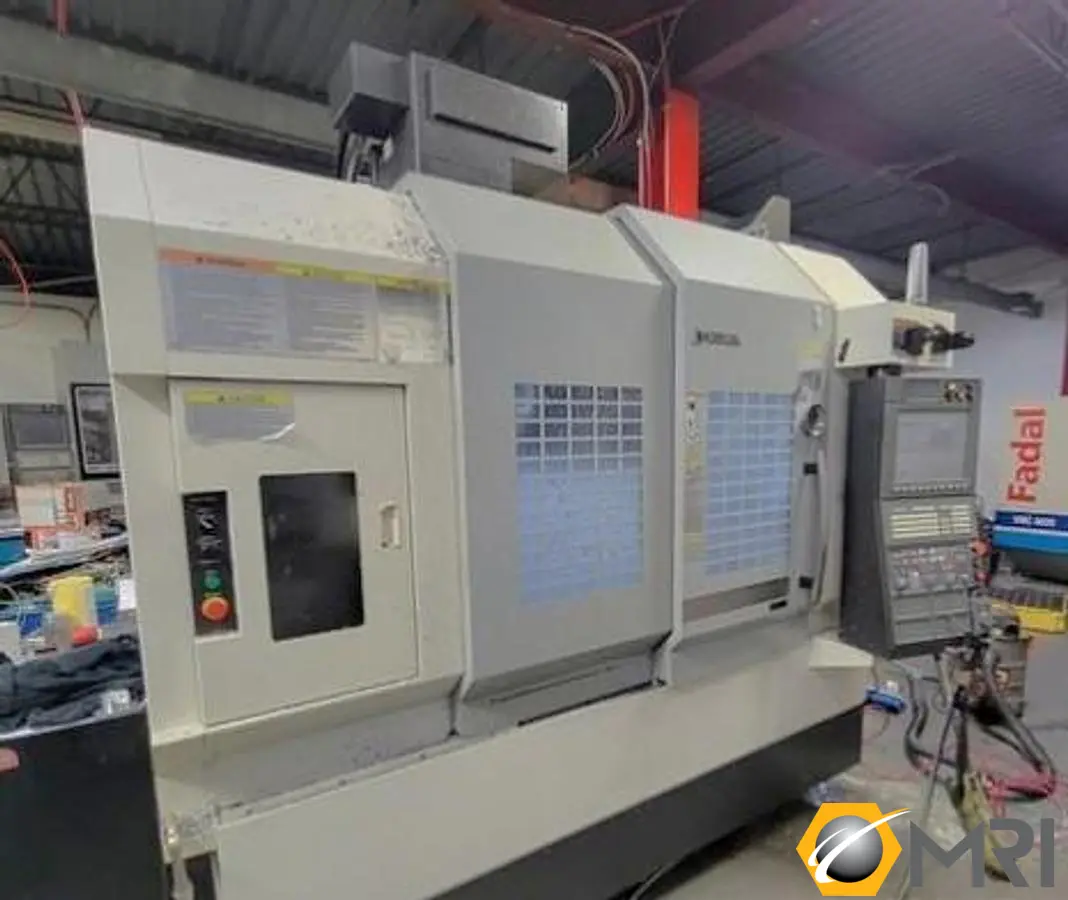

2015 Okuma Genos M560-V Vertical Machining Center, used, features a 41.34" X-axis, 4-axis capability, 15,000 RPM spindle, CAT 40 Big Plus taper, and 32-station tool changer. Equipped with 4th axis rotary table and Renishaw probing system.

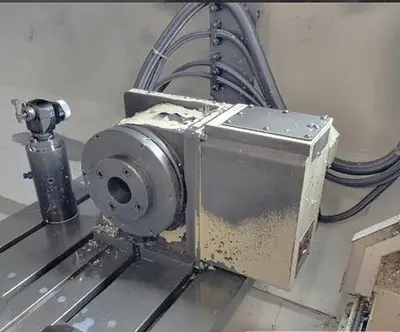

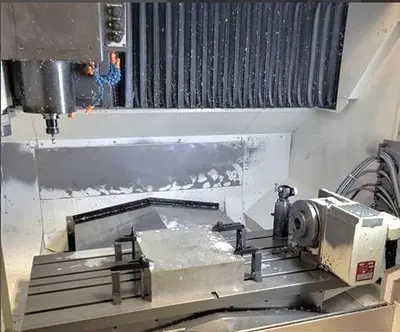

4th Axis Rotary Table
4th Axis Drive & Wiring
Renishaw Probing with both Tool and Part Probes

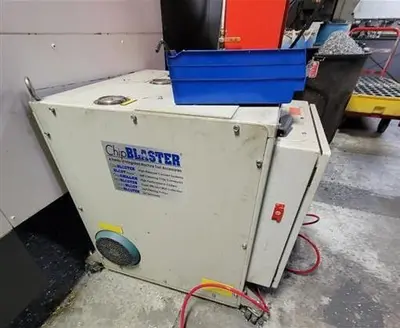

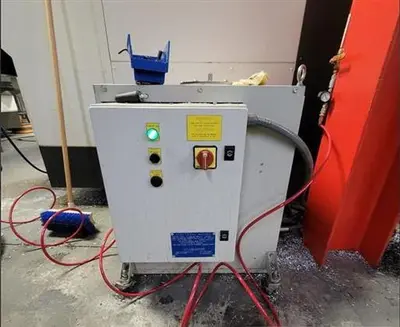

Chip Blaster High Pressure Coolant System

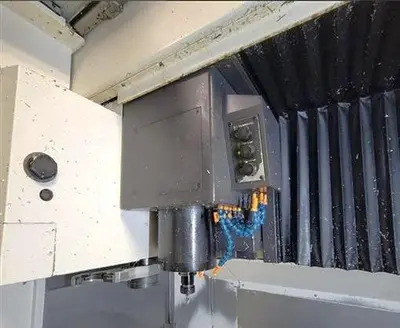

15,000 RPM Spindle

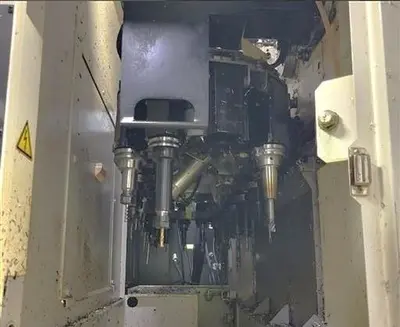

32 Station Side Mounted Tool Changer
Chip Conveyor
Remote Jog Handle
Complete Coolant System with Tank & Pump
USB Port Interface
RS 232 Port Interface

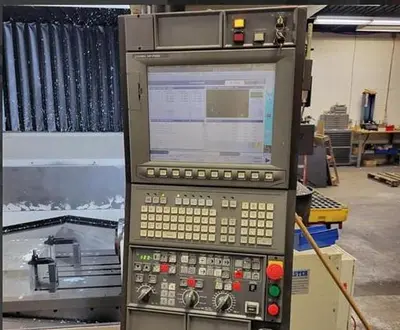

15" Multi-Touch Color Monitor
All Available Manuals

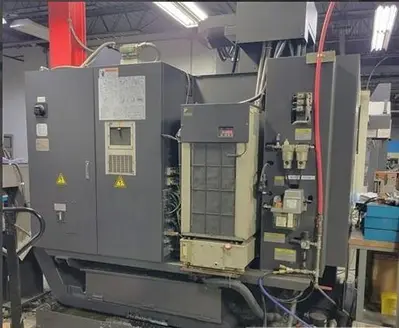

Wired 220V - 480V Electrics

X-Axis41.34"1,050 mm
Y-Axis22.05"560.07 mm
Z-Axis18.11"459.99 mm
# Axis44
Power30 hp22.4 kW
RPM15,000 RPM15,000 RPM
TaperCAT 40 Big PlusCAT 40 Big Plus
# ATC3232
Table-W22.05"560.07 mm
Table-L51.18"1,300 mm
DimensionsL126" x W101" x H108.11"L126" x W101" x H108.11"
Weight17,820 lbs.17,820 lbs.

Table Load Capacity 1,980 lbs.
Spindle Nose to Table Top 5.91" - 24.02"
Tool Magazine Capcity 32 Station Side Mounted Tool Changer
Rapid Traverse Rates X, Y / Z 1575 IPM / 1262 IPM

To the best of our knowledge all details listed below are deemed correct. It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
