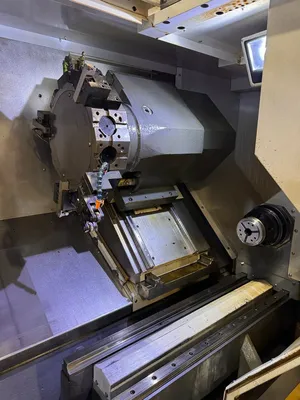

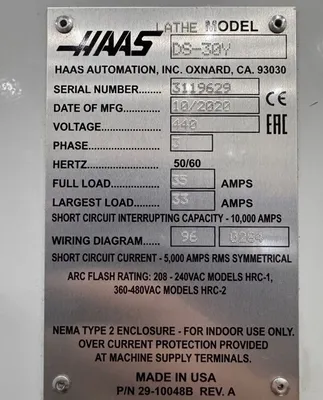

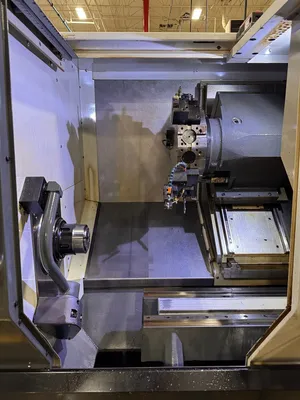

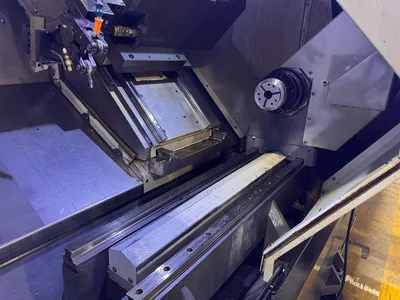

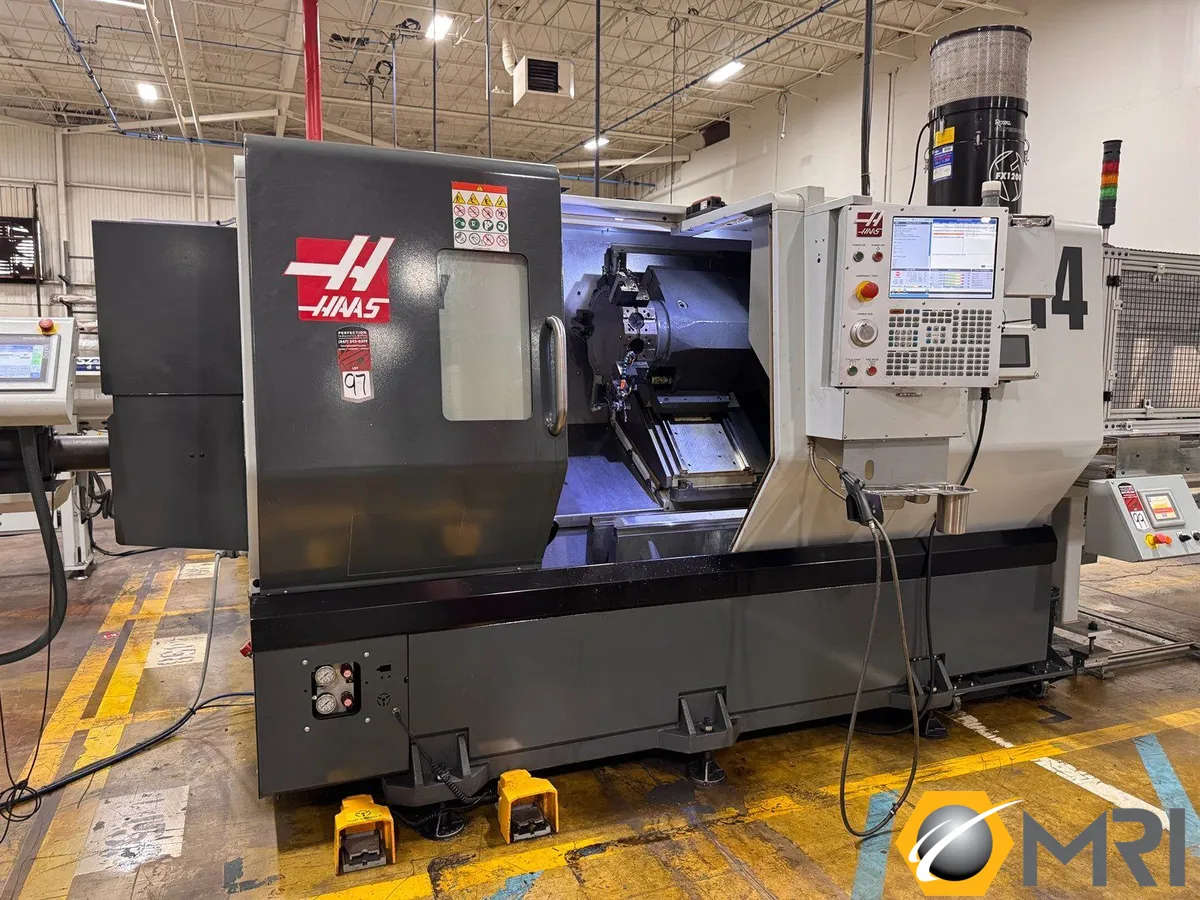

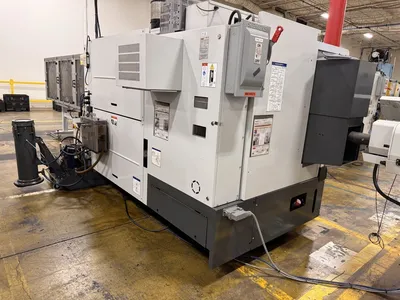

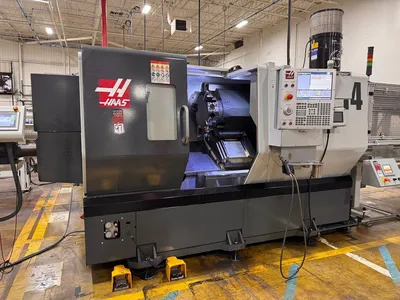

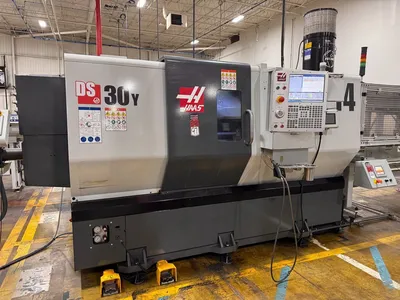

2020 HAAS DS30Y 7-AXIS CNC LATHE | AG 7612526

Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 4,500 RPM
Spindle Motor: 30 HP
X Axis Travel: 12.5"
Z Axis Travel: 23"
Rapid Rate Z Axis: 945 IPM

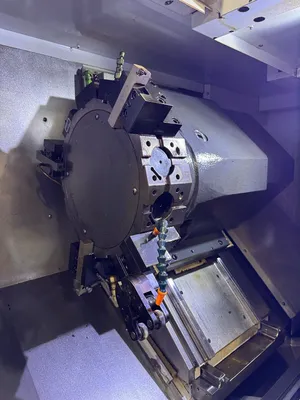

Turret Tools: 12 Station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 18"
Max Turning Length: 23"
Max Swing: 31.8"
Swing Front Apron: 31.8"
Swing Over Cross Slide: 20.8"
Swing Second Spindle: 21.8"
Max Thrust X: 4100 lbf
Max Thrust Y: 2300 lbf
Max Thrust Z: 5100 lbf
Spindle Nose: A2-6
Drive System: Direct Speed
Max Torque: 275 ft-lbf
Spindle Bore ø: 3.50"
Main Spindle: C Axis
Max Rating: 5 hp
Positioning (±): 0.01 °
Brake Clamp Force: 1000 lbf
Brake Diameter: 14.4"
Interpolated Motion and Positioning

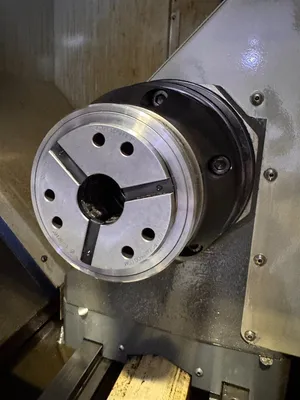

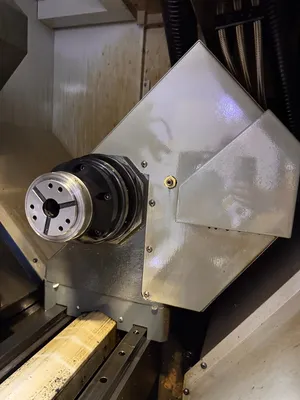

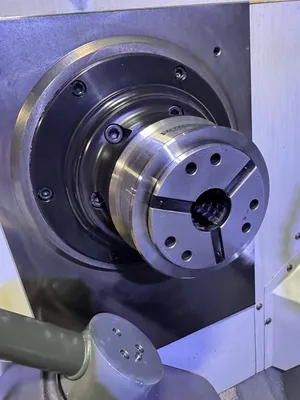

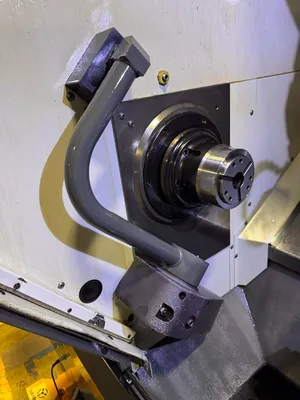

SUB SPINDLE:
Chuck Size: 8"
Spindle Nose: A2-5
Drive System: Direct Speed
Max Rating: 20 hp
Max Speed: 4800 rpm
Max Torque: 110 ft-lbf
Spindle Bore: 2"
Bar Capacity: 2"
Boring Bar Rear Clearance: 4"

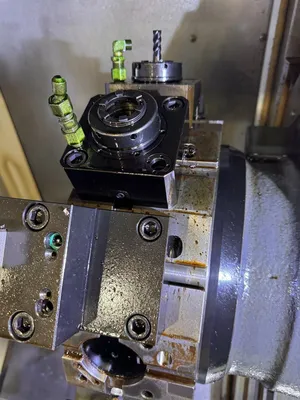

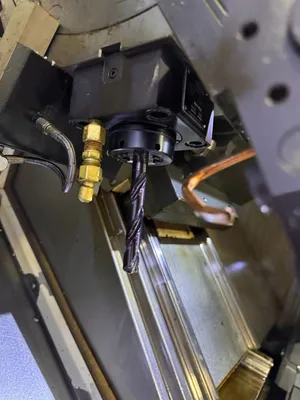

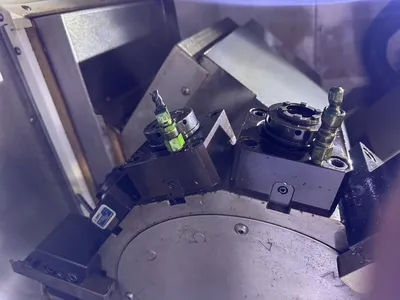

LIVE TOOLING:
Y Axis: ± 2.0"
Max Speed: 4500 rpm
Drive Ratio: 1:1
Tooling: BMT65

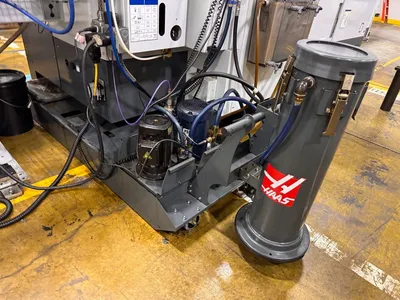

Coolant Capacity: 65gal
Dimensions: 171" x 90" x 92"
Weight: 12,200 LBS
